Wind Correction Angle Calculator

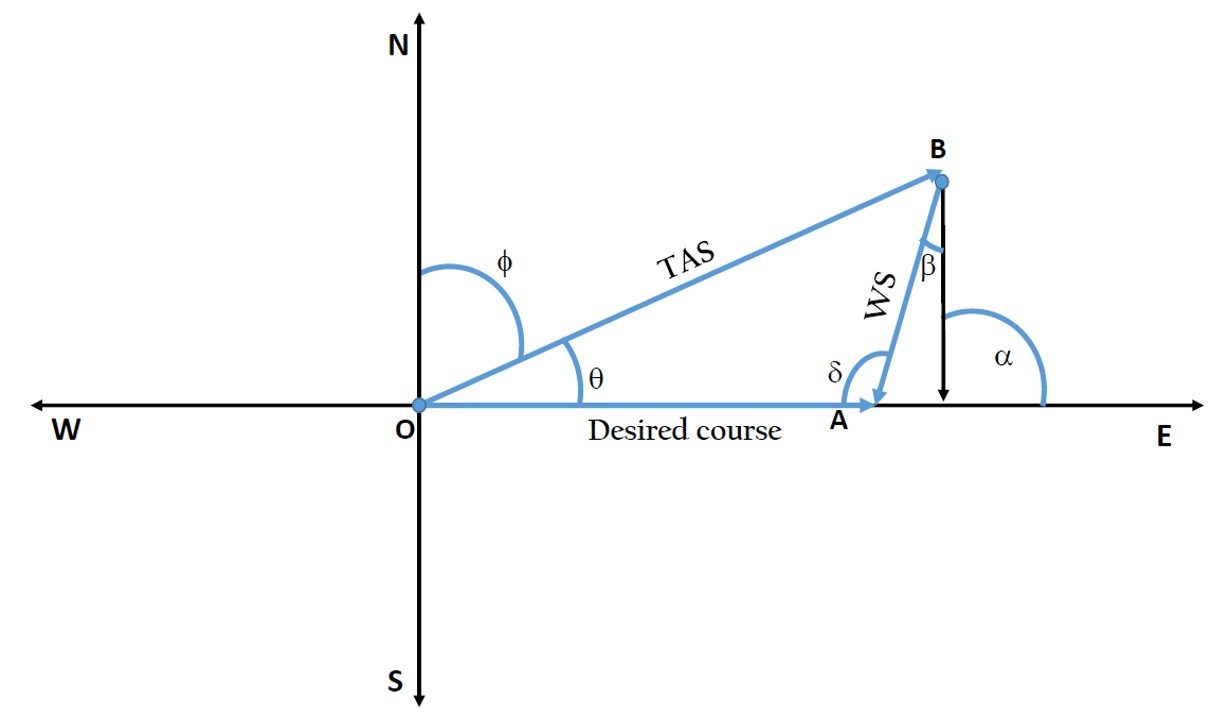

The calculation relies on the vector triangle of velocities, mapping out the relationship between air speed, ground track, and wind velocity. The primary formula used to find the correction angle ($\theta_{c}$) is:

$\theta_{c} = \arcsin\left(\frac{v_{wind}}{v_{air}} \cdot \sin(\theta_{wind} - \theta_{flight})\right)$

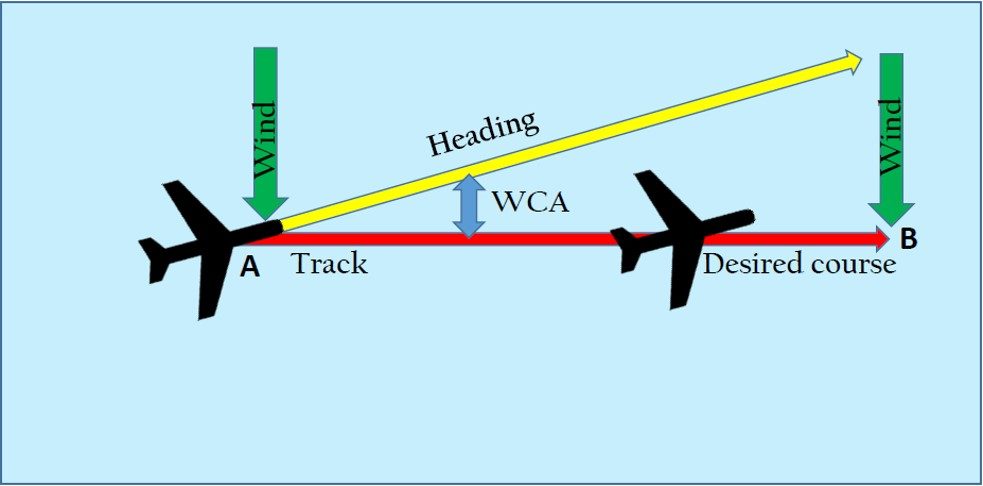

Once the correction angle is derived, the required heading ($\theta_{h}$) is determined by adding this correction angle to your desired flight direction: $\theta_{h} = \theta_{flight} + \theta_{c}$. This ensures that despite lateral wind displacement, your actual track over the ground matches your intended destination.

Imagine you are planning a cross-country flight with an intended flight direction of 90 degrees (due east). Your aircraft has a cruising air speed ($v_{air}$) of 120 knots. Weather reports indicate a strong wind blowing from 45 degrees (northeast) at a wind speed ($v_{wind}$) of 30 knots.

1. Determine relative wind angle: Subtract the flight direction from the wind direction ($45^{\circ} - 90^{\circ} = -45^{\circ}$).

2. Calculate the ratio: Divide wind speed by air speed ($30 / 120 = 0.25$).

3. Apply the arcsine function: Multiply the ratio by the sine of the relative angle and take the arcsine, yielding a correction angle of approximately $-10.2^{\circ}$.

4. Calculate final heading: Add this correction to your flight direction ($90^{\circ} + (-10.2^{\circ}) = 79.8^{\circ}$). You must steer a heading of roughly 80 degrees to successfully track east.

Always ensure your air speed and wind speed units match (e.g., both in knots or both in miles per hour) before running the calculation. Pay close attention to whether directions are measured in true north or magnetic north to avoid compounding navigational errors. Remember that shifting atmospheric conditions mean wind correction angles must be continuously re-evaluated during long journeys.
