Projectile Motion Calculator

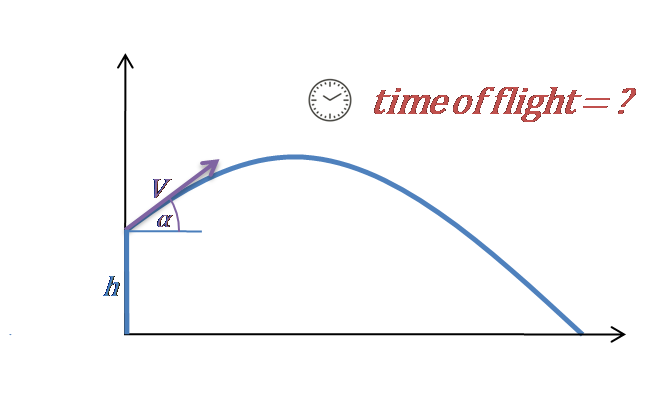

Projectile motion relies on splitting an object's trajectory into independent horizontal and vertical components. Horizontally, assuming negligible air resistance, velocity remains constant ($v_x = v_0 \cos\theta$). Vertically, gravity acts constantly downward at $g$ (approx. $9.81\text{ m/s}^2$). The initial velocity breaks down into horizontal ($v_{0x} = v_0 \cos\theta$) and vertical ($v_{0y} = v_0 \sin\theta$) vectors. Total flight time is found using quadratic kinematic equations, specifically solving for when the vertical displacement equals zero: $t_{total} = \frac{v_{0y} + \sqrt{v_{0y}^2 + 2g h_0}}{g}$. Once time is known, the horizontal distance (range) is computed as $d = v_{0x} \times t_{total}$, and maximum height is determined by $h_{max} = h_0 + \frac{v_{0y}^2}{2g}$.

Let's calculate the trajectory of a steel ball launched from a cliff. Suppose an initial velocity ($v_0$) of $25\text{ m/s}$ is fired at an launch angle ($\theta$) of $30^\circ$ from an initial height ($h_0$) of $10\text{ meters}$ above the ground, using standard gravity $g = 9.81\text{ m/s}^2$. First, find the velocity components: $v_{0x} = 25 \times \cos(30^\circ) \approx 21.65\text{ m/s}$ and $v_{0y} = 25 \times \sin(30^\circ) = 12.5\text{ m/s}$. Next, calculate total flight time using the quadratic formula considering initial height: $t = \frac{12.5 + \sqrt{12.5^2 + 2(9.81)(10)}}{9.81} = \frac{12.5 + \sqrt{156.25 + 196.2}}{9.81} = \frac{12.5 + \sqrt{352.45}}{9.81} = \frac{12.5 + 18.77}{9.81} \approx 3.19\text{ seconds}$. Finally, find the horizontal distance: $d = 21.65 \times 3.19 \approx 69.06\text{ meters}$. The projectile travels roughly $69.06$ meters horizontally before impact.

Always verify your angle units before performing trigonometric operations; scientific calculators and code compilers frequently default to radians rather than degrees. Remember to account for air resistance in real-world scenarios, as standard kinematic formulas assume a vacuum unless explicitly modified. When dealing with objects launched below the horizontal axis, ensure your initial height and initial vertical velocity signs reflect the downward direction correctly to avoid sign inversion errors.
