VSWR Calculator (Voltage Standing Wave Ratio Calculator)

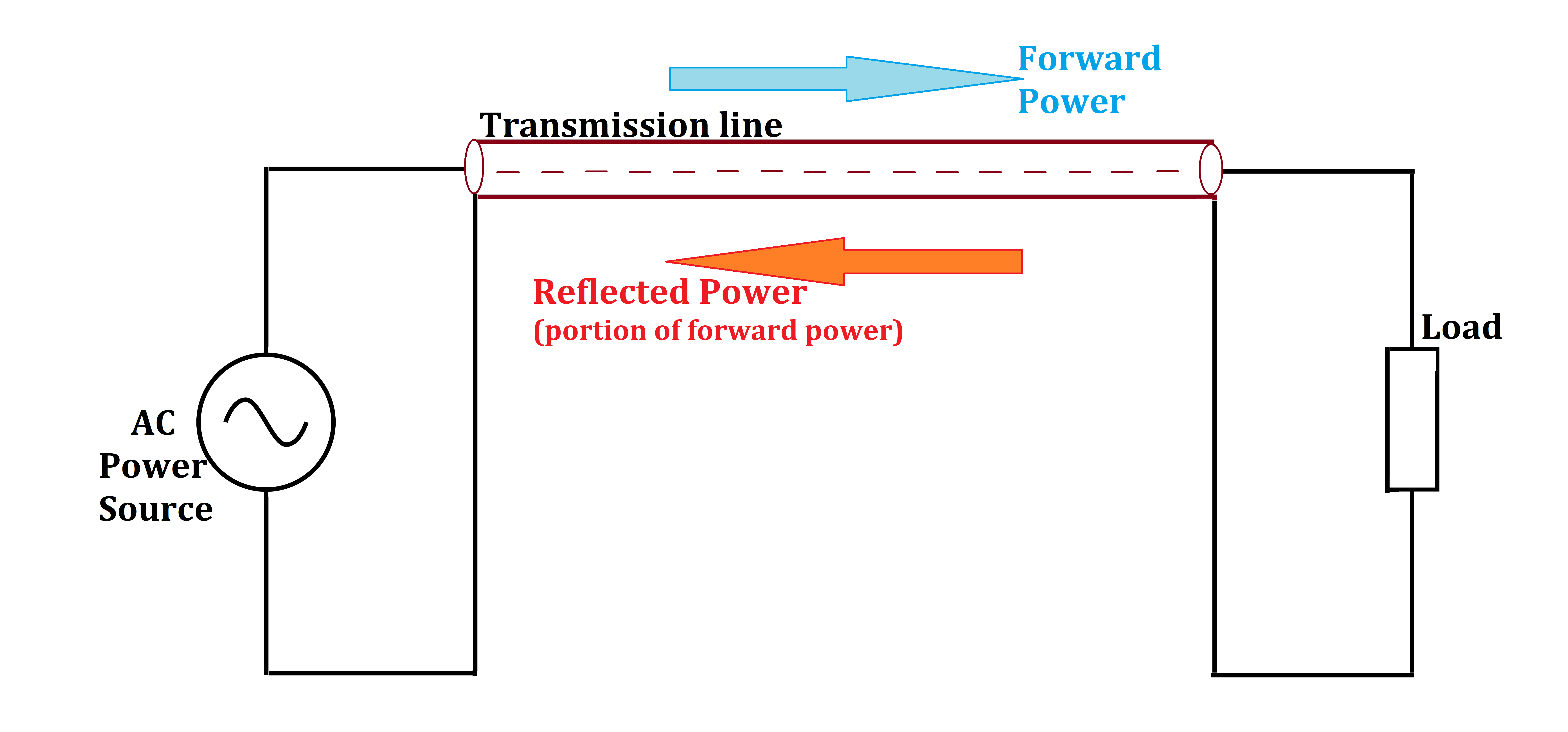

VSWR quantifies the standing waves of voltage that form along a transmission line due to impedance mismatches between the source and the load. The calculations rely on several interrelated metrics. First, the Reflection Coefficient (Γ) represents the ratio of the amplitude of the reflected wave to the incident wave, calculated as Γ = (VSWR - 1) / (VSWR + 1). From this, we determine the Reflected Power Percentage as 100 × Γ², and the Through Power Percentage as 100 minus the reflected power. Additionally, Return Loss is measured in decibels using -20 × log₁₀(Γ), while Mismatch Loss defines the power lost due to reflections using -10 × log₁₀(1 - Γ²).

Consider an RF transmission line setup where you measure a VSWR of 2.0. Let us calculate the associated parameters step by step. First, find the reflection coefficient: Γ = (2.0 - 1) / (2.0 + 1) = 1 / 3 ≈ 0.3333. Next, calculate the reflected power percentage: 100 × (0.3333)² = 11.11%. The through power percentage is therefore 100% - 11.11% = 88.89%. For return loss, compute -20 × log₁₀(0.3333), which equals approximately 9.54 dB. Finally, determine the mismatch loss: -10 × log₁₀(1 - 0.3333²) yields roughly 0.51 dB of lost power.

When optimizing your transmission lines, aim for a VSWR as close to 1.0 as possible, though anything below 1.5 is generally considered acceptable for most amateur and commercial applications. Always verify that your power meter is calibrated correctly before taking field readings, as inaccurate forward power measurements can skew reflection calculations. Keep cable runs as short as possible at higher frequencies to naturally attenuate reflected signals before they reach your transmitter stages.
