Welcome to the Transistor Biasing Calculator, an essential tool for students, electronics hobbyists, and audio engineers. Transistor biasing establishes the correct direct current (DC) operating point, known as the Q-point, ensuring that the transistor operates cleanly within its active region without signal clipping or distortion. Whether you are analyzing fixed-bias, emitter-feedback, or voltage-divider configurations, this utility instantly solves complex circuit equations for voltages, currents, and current gain.
How Transistor Biasing Works

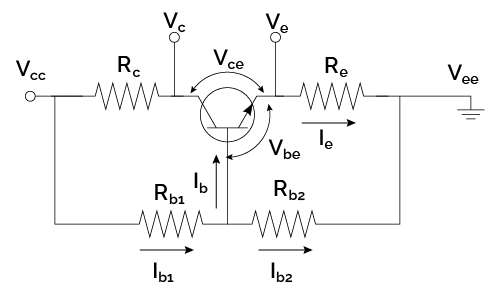

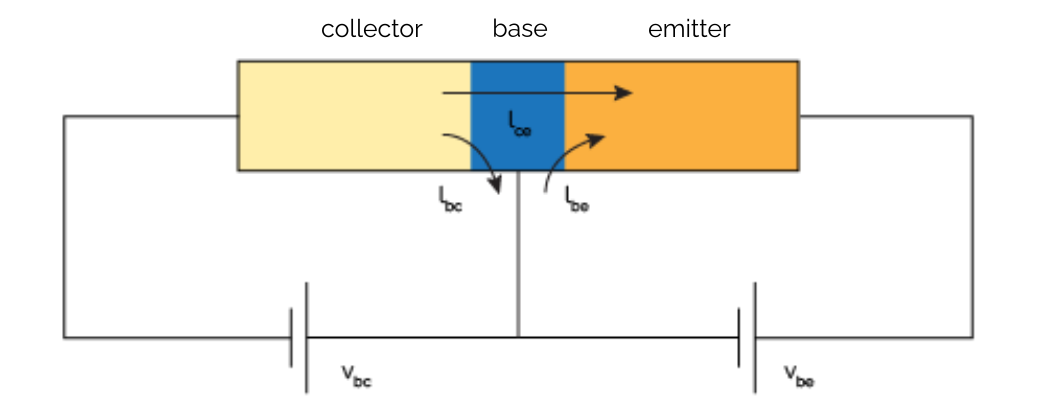

Transistor biasing relies on Kirchhoff's laws and Ohm's law to determine the steady-state voltages and currents in a bipolar junction transistor (BJT). Across various topologies, the primary objective is to maintain a stable collector current ($I_c$) and collector-emitter voltage ($V_{ce}$). For example, in a standard voltage-divider configuration, the base voltage is set using a resistor network: $V_b = \frac{V_{cc} \cdot R_{b2}}{R_{b1} + R_{b2}}$. The emitter voltage and current follow from the base-emitter drop ($V_{be}$), typically around 0.7V for silicon devices: $I_e = \frac{V_b - V_{be}}{R_e}$. Using the transistor's current gain ($\beta$), collector current is approximated as $I_c \approx I_e$, allowing you to calculate the final collector voltage via $V_c = V_{cc} - I_c R_c$.
Worked Calculation Example
Let us walk through a practical voltage-divider biasing example. Suppose we have a supply voltage ($V_{cc}$) of 12V, a collector resistor ($R_c$) of 1 k$\Omega$, an emitter resistor ($R_e$) of 500$\Omega$, and a voltage divider network with $R_{b1} = 10\text{ k}\Omega$ and $R_{b2} = 2.2\text{ k}\Omega$. Assuming a transistor current gain ($\beta$) of 100 and a $V_{be}$ drop of 0.7V:
1. Calculate the base voltage: $V_b = \frac{12 \cdot 2200}{10000 + 2200} = 2.16\text{ V}$.
2. Determine the emitter voltage: $V_e = 2.16 - 0.7 = 1.46\text{ V}$.
3. Find the emitter current: $I_e = \frac{1.46}{500} = 2.92\text{ mA}$.
4. Estimate the collector current: Since $I_c \approx I_e$, $I_c \approx 2.92\text{ mA}$.
5. Calculate the collector voltage: $V_c = 12 - (2.92\text{ mA} \cdot 1000\Omega) = 9.08\text{ V}$.
6. Compute the collector-emitter voltage: $V_{ce} = V_c - V_e = 9.08 - 1.46 = 7.62\text{ V}$.
Practical Tips and Best Practices
To ensure robust circuit performance, always account for temperature variations, as parameter $\beta$ and $V_{be}$ drift with thermal changes. Opt for voltage-divider biasing over fixed-bias when designing amplifiers requiring high thermal stability. Furthermore, double-check your resistor power ratings to prevent component overheating during continuous operation.
FAQs
What is the most common biasing technique for a transistor?
The voltage-divider biasing circuit is overwhelmingly the most popular method in modern electronics. It uses a pair of resistors connected to the base to establish a stable operating point that is largely independent of variations in transistor current gain, providing exceptional thermal and operational stability.
How to bias a transistor using the fixed base biasing technique?
Fixed base biasing uses a single resistor connected between the power supply and the transistor's base. While simple to construct with minimal components, it is highly sensitive to changes in temperature and transistor replacement because the base current is strictly fixed regardless of beta variations.
What is the value of the gain for a transistor?
The gain of a bipolar junction transistor, commonly denoted as beta ($\beta$) or $h_{FE}$, represents the ratio of collector current to base current. Typical small-signal transistors have beta values ranging from 100 to 300, though specialized high-gain transistors can exhibit significantly higher numbers.
How do I calculate the emitter current in a transistor?
Emitter current is calculated by taking the voltage at the emitter node and dividing it by the emitter resistor. In most standard BJT calculations, the emitter current is also equal to the sum of the collector current and the base current, or roughly approximated as being equal to the collector current.
Formula verified against NIST Reference Data — all calculations use deterministic, standards-based formulas.
