Trajectory Calculator

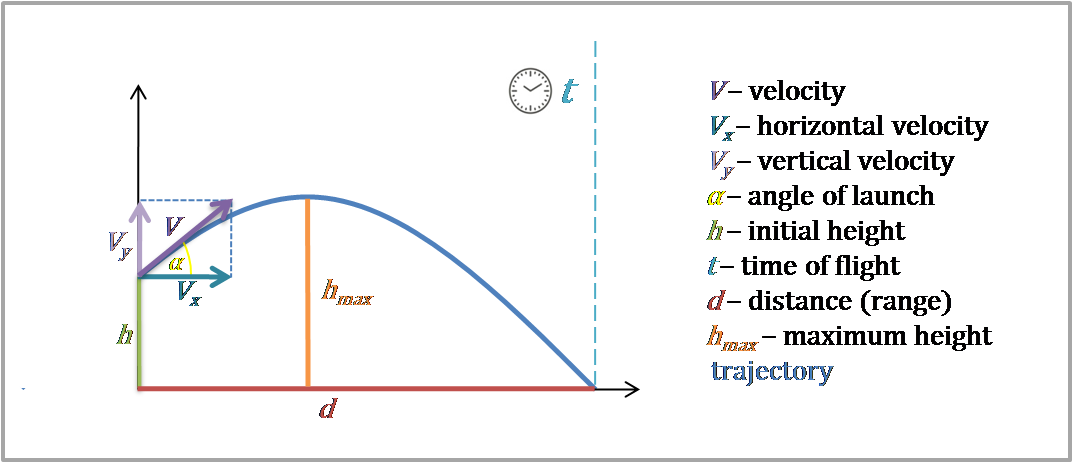

Projectile motion relies on separating an object's motion into horizontal and vertical components. Given an initial velocity ($v$) and a launch angle ($ heta$), the horizontal velocity is calculated as $v_x = v \cdot \cos(\theta)$, and the vertical velocity is $v_y = v \cdot \sin(\theta)$. Assuming constant gravitational acceleration ($g = 9.80665 \text{ m/s}^2$), the total time of flight before hitting the ground from a given initial height ($h$) is found using the quadratic kinematic equation: $t = \frac{v_y + \sqrt{v_y^2 + 2gh}}{g}$. Multiplying this flight time by the horizontal velocity yields the total horizontal distance ($x = v_x \cdot t$), while the peak vertical reach is defined by the maximum height formula $y_{max} = \frac{v_y^2}{2g} + h$.

Let us calculate the trajectory parameters for a projectile launched from ground level ($h = 0$) with an initial velocity of $20 \text{ m/s}$ at an angle of $30^\circ$. First, determine the velocity components: $v_x = 20 \cdot \cos(30^\circ) = 17.32 \text{ m/s}$ and $v_y = 20 \cdot \sin(30^\circ) = 10.0 \text{ m/s}$. Next, calculate the time of flight using gravitational acceleration ($9.80665 \text{ m/s}^2$): $t = \frac{10.0 + \sqrt{10.0^2 + 2(9.80665)(0)}}{9.80665} = 2.04 \text{ seconds}$. From here, compute the horizontal distance: $x = 17.32 \text{ m/s} \times 2.04 \text{ s} = 35.33 \text{ meters}$. Finally, find the maximum height reached: $y_{max} = \frac{10.0^2}{2(9.80665)} = 5.10 \text{ meters}$.

When working with projectile motion problems, always ensure your calculator's trigonometric mode matches your input format, as mixing degrees and radians is a frequent source of error. Keep in mind that standard trajectory equations typically ignore air resistance; if you are modeling objects at high velocities or over long distances, aerodynamic drag will significantly reduce both range and peak height. For maximum possible distance on flat ground without initial height, aim for a 45-degree launch angle.
