Torsional Constant Calculator
Created by Kaushik RabadiyaLast updated: September 25, 2026Torsional constant instantly calculates results using d, i beam, k1. Use the calculator above for instant answers in your browser.
The Torsional Constant Calculator is a specialized physics and engineering tool designed to determine how resistant various cross-sectional geometries are to twisting loads. By factoring in specific dimensions such as radius, wall thickness, or flange width, structural engineers, mechanical designers, and students can accurately evaluate torsional stiffness. This tool eliminates manual computation errors when analyzing shafts, structural beams, and custom profiles under angular torque.
How the Torsional Constant Formula Works
The torsional constant (commonly denoted as J or K) quantifies a cross-section's geometric resistance to torsion. Unlike the polar moment of inertia—which applies strictly to circular sections undergoing elastic uniform torsion—the torsional constant incorporates warping and geometric distortion for non-circular shapes. The calculation varies entirely based on the geometry of the profile:
• Circular Sections: Calculated using the formula J = (pi * R^4) / 2, where R represents the radius.
• Rectangular Sections: Evaluated using width (base) and height through series approximations accounting for corner warping, such as J = base * height^3 / 3 - 0.21 * height^4 + 0.0175 * height^8 / base^4.
• I-Beams & Complex Profiles: Built by summing the torsional contributions of individual rectangular components (flanges and webs) along with supplementary correction factors for fillet radii and thickness transitions.
Worked Calculation Example
Let us calculate the torsional constant for a solid circular steel shaft with a radius (R) of 0.05 meters (50 mm).
Step 1: Identify the formula for a circle.
J = (pi * R^4) / 2
Step 2: Substitute the radius value.
J = (3.14159 * (0.05)^4) / 2
Step 3: Evaluate the exponent.
(0.05)^4 = 0.00000625 m^4
Step 4: Complete the multiplication and division.
J = (3.14159 * 0.00000625) / 2 = 0.000019635 / 2 = 0.000009817 m^4
The torsional constant for this solid circular shaft is approximately 9.82 x 10^-6 m^4 (or 9.82 mm^4).
Practical Tips and Best Practices
• Verify Unit Consistency: Always ensure your input dimensions (such as meters, millimeters, or inches) are consistent throughout the entire calculation to prevent massive scale errors.

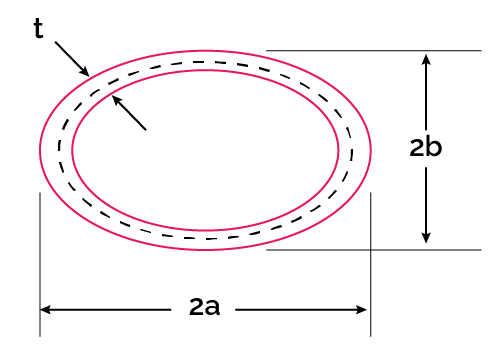

• Choose the Right Geometry: Hollow sections require distinct formulas from solid ones. Double-check whether your profile has thin walls or thick walls, as this dictates which mathematical approximation applies.
• Account for Fillets: When analyzing I-beams or structural channels, remember to include fillet radii, as they significantly influence local stress distributions and torsional rigidity.
FAQs
What is the difference between the polar moment of inertia and the torsional constant?

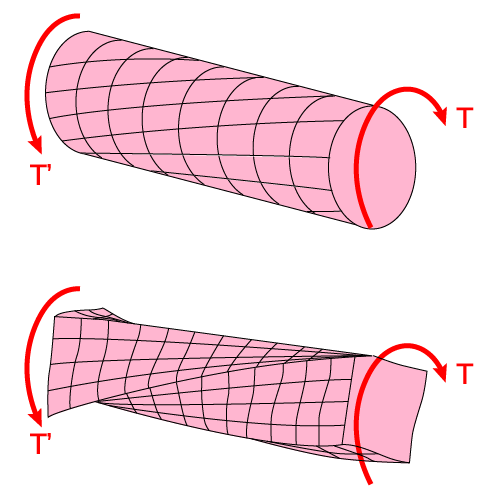

The polar moment of inertia depends exclusively on the distance of cross-sectional area elements from the central axis and applies perfectly to circular shafts where cross-sections remain plane during twisting. The torsional constant, however, accounts for warping in non-circular shapes like rectangles, ellipses, and open profiles where cross-sections distort out-of-plane under torque.
What are the torsion constant units?
In the International System of Units (SI), the torsional constant is expressed in units of length to the fourth power, typically meters to the fourth (m^4) or millimeters to the fourth (mm^4). In imperial systems, it is commonly measured in inches to the fourth (in^4). It should not be confused with stiffness units, which involve force and angle.
How do I calculate the torsional constant of a square section?
For a solid square section with a side length 'a', the torsional constant is approximated using the formula J = 2.25 * (a / 2)^4, or more broadly derived from the rectangular formula where the base and height are equal. This accounts for the specific warping behavior that occurs at the four 90-degree corners of the square profile.
How do I calculate the torsional constant of an I-beam?
The torsional constant of an I-beam is calculated by segmenting the profile into individual rectangular strips—specifically the two flanges and the central web. You sum the individual torsional contributions of these rectangles using specialized adjustment factors that account for intersections, thickness transitions, and any fillet radii present at the web-flange junctions.
Based on 1 source
- Roark's Formulas for Stress and Strain (Table 10.1) — Budynas RG, Sadegh AM
Formula verified against NIST Reference Data — all calculations use deterministic, standards-based formulas.
