Thin-Film Optical Coating Calculator

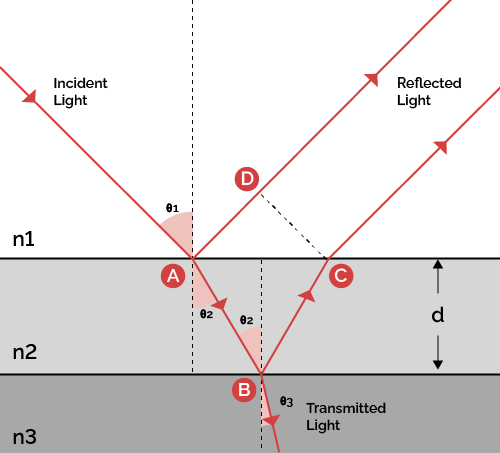

Thin-film optics relies on the wave nature of light and boundary conditions at material interfaces. When light travels through a medium with refractive index n1 and strikes a thin film of index n2 at an angle theta 1, it refracts at angle theta 2 according to Snell's Law: theta_2 = asin((n_1/n_2)*sin(theta_1)). The optical path difference within the film is calculated as path_dif = 2*n_2*thickness*cos(theta_2). Using Fresnel equations for amplitude reflection coefficients at each boundary, the calculator determines component reflectivities (R_s1, R_s2, R_p1, R_p2) and combines them to yield the total net reflectivity for s-polarization (Reflectivity_s) and p-polarization (Reflectivity_p).

Consider an antireflective coating application where light with a wavelength of 550 nm travels through air (n1 = 1.0) and strikes a magnesium fluoride thin film (n2 = 1.38) coated onto a glass substrate (n3 = 1.52) at normal incidence (theta 1 = 0 degrees). First, the internal refraction angle theta 2 evaluates to 0 degrees. The optical path difference through the film depends on the selected thickness. For destructive interference to minimize reflection, the minimum antireflective coating thickness is calculated via min_ar_thickness = wavelength / (4 * n_2), yielding approximately 99.6 nm. Inserting these parameters through the Fresnel equations computes the exact fractional reflectivity drops for both polarization states.

Ensure that your refractive index values correspond precisely to the specific operating wavelength of your light source, as dispersion can alter results. Pay close attention to polarization states; s-polarization and p-polarization behave differently at non-zero incidence angles due to varying electric field orientations. When designing antireflective layers, always verify that the substrate index is greater than the film index to maintain the correct phase shift conditions for destructive interference.
