Thermal Resistance Calculator
Created by Kaushik RabadiyaLast updated: September 24, 2026Thermal resistance instantly calculates results using area plate, conductivity, critical radius cylinder. Use the calculator above for instant answers in your browser.

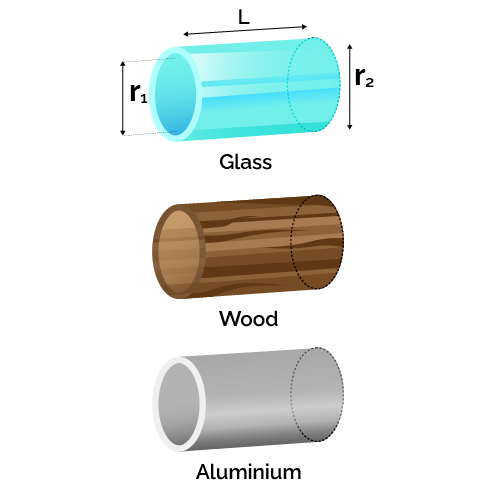

Welcome to the Thermal Resistance Calculator, an essential tool for engineers, physicists, and students designing thermal systems. This calculator determines how effectively building materials, pipes, or spherical containers resist heat flow. By inputting dimensions, geometry, and material properties, you can easily evaluate heat transfer efficiency and prevent thermal failure.
How Thermal Resistance Works

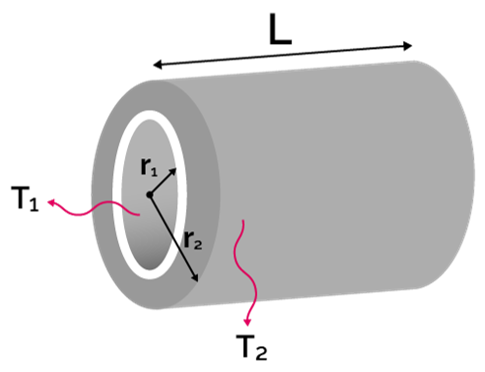

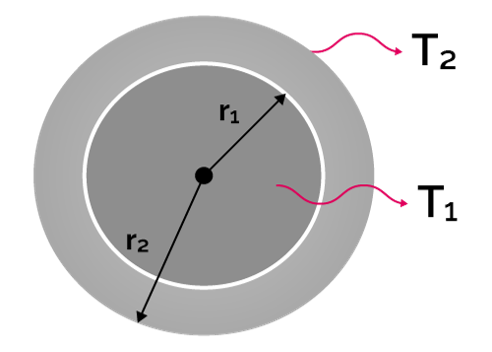

Thermal resistance acts as the heat transfer equivalent of electrical resistance in Ohm's Law. For a flat plate, the resistance depends on the thickness (L), thermal conductivity (k), and cross-sectional area (A), expressed by the formula: R_plate = L / (k * A). For cylindrical objects like pipes, the geometry introduces a logarithmic radius ratio: R_cylinder = ln(r_2 / r_1) / (2 * pi * L * k). Finally, for spherical containers, the resistance formula is: R_sphere = (r_2 - r_1) / (4 * pi * r_2 * r_1 * k). Additionally, the calculator evaluates critical insulation radii using the formula r_crit = k / h, which determines the optimal insulation thickness required for maximum heat loss reduction.
Worked Calculation Example
Consider a stainless steel plate used in an industrial heat exchanger. The plate has a thickness of 0.02 meters, a length of 0.5 meters, a width of 0.4 meters, and a thermal conductivity of 15 W/(m*K). First, compute the cross-sectional area: A = 0.5 m * 0.4 m = 0.2 m^2. Next, apply the plate thermal resistance formula: R_plate = 0.02 / (15 * 0.2) = 0.02 / 3.0 = 0.00667 K/W. This small thermal resistance value indicates that the steel plate allows heat to pass through relatively easily, which is typical for structural metals.
Best Practices for Thermal Calculations
Always ensure your input units are consistent, preferably using SI units such as meters for dimensions and W/(m*K) for thermal conductivity. Remember that materials with higher thermal conductivity values offer lower resistance to heat flow. When insulating small cylindrical pipes, pay close attention to the critical radius of insulation, as adding a thin layer of insulation can sometimes inadvertently increase total heat loss until you cross the critical threshold.
FAQs
What are convective and conductive thermal resistances?
Conductive thermal resistance occurs when heat moves through solid materials due to molecular collisions, governed by Fourier's law and material conductivity. Convective thermal resistance happens at the boundary where a solid surface meets a moving fluid or gas. Both resistances combine in series when analyzing complex thermal networks like insulated pipes exposed to ambient air.
What are thermal resistance units?
In the International System of Units (SI), thermal resistance is measured in kelvins per watt (K/W) or degrees Celsius per watt (°C/W). This unit signifies the temperature difference required across a material to transfer one watt of thermal energy. In North American standard construction, an equivalent imperial metric known as R-value is often used instead.
What is the convective heat transfer coefficient?
The convective heat transfer coefficient, denoted by the symbol h, quantifies how effectively a fluid transfers heat to or from a solid surface. It depends heavily on fluid properties like viscosity and density, as well as flow dynamics such as whether the fluid motion is natural convection or forced by fans and pumps.
What is the critical radius of insulation?
The critical radius of insulation represents the specific outer radius of a cylindrical or spherical object where adding more insulation actually maximizes heat loss rather than reducing it. Until this radius is reached, increasing insulation thickness increases surface area faster than conductive resistance builds up, which boosts total heat transfer.
Formula verified against NIST Reference Data — all calculations use deterministic, standards-based formulas.
