Telescope Magnification Calculator

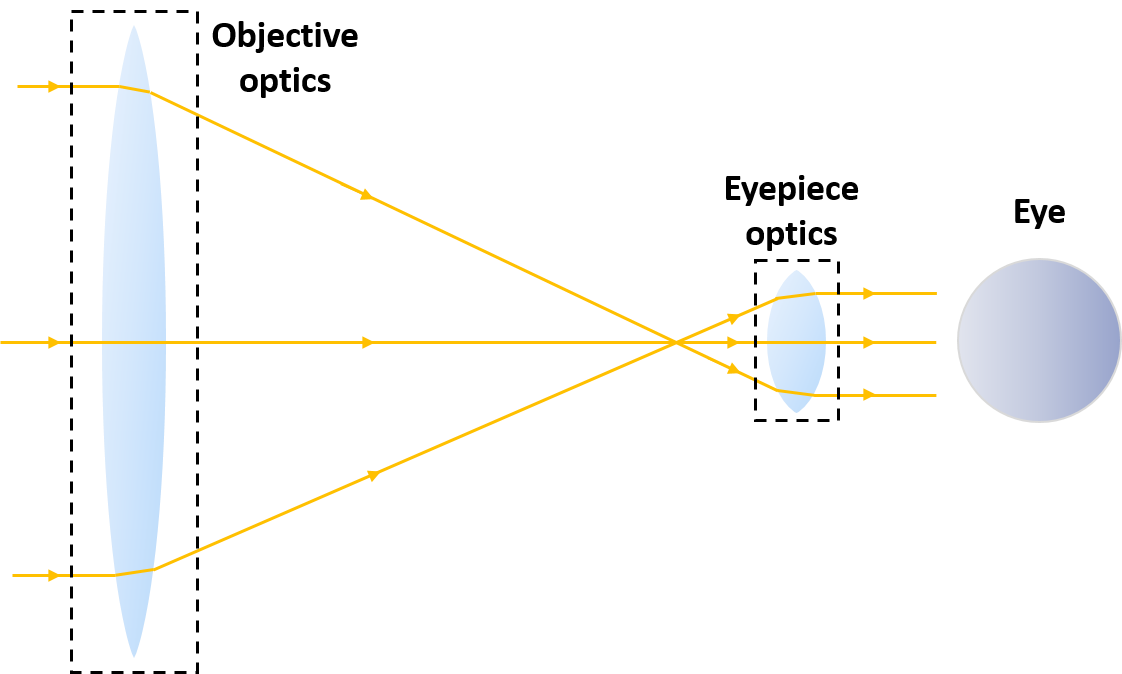

The magnification of an astronomical telescope depends primarily on the focal length of the objective lens or primary mirror relative to the focal length of the eyepiece. The fundamental formula is expressed as Magnification = Focal Point (Objective Focal Length) / Focal Length (Eyepiece). Additional optical properties are also computed, such as the exit pupil, which is calculated by dividing the telescope aperture diameter by the magnification. Furthermore, limiting magnitude and minimum magnification thresholds are evaluated using standard astronomical formulas based on aperture size in millimeters to ensure clear, high-contrast observations.

Imagine you own a telescope with an objective focal length of 1000 mm and an aperture diameter of 100 mm. You insert an eyepiece with a focal length of 25 mm. To find the magnification, divide the objective focal length by the eyepiece focal length: 1000 mm / 25 mm = 40x magnification. Next, to determine the exit pupil, divide the aperture diameter by the magnification: 100 mm / 40 = 2.5 mm. This 2.5 mm exit pupil safely matches human eye adaptation limits for crisp, bright planetary and deep-sky viewing.

Avoid the temptation to use maximum possible magnification on every celestial object; atmospheric turbulence often blurs overly magnified images, making lower-power, wider-field views sharper and more pleasing. Always match your exit pupil to your observing conditions, aiming for a 2 mm to 3 mm exit pupil for planetary details and around 5 mm to 7 mm for faint, extended deep-sky objects under dark skies. Keep track of your telescope's focal ratio to quickly identify fast optical systems from slow ones.
