Stress Concentration Factor Calculator

The stress concentration factor, denoted as Kt, is fundamentally a dimensionless ratio of the highest localized stress near a discontinuity to the reference nominal stress applied across the net cross-section. The core equation is expressed as Kt = Max_Stress / Nom_Stress. For specialized geometries like an elliptical hole in an infinite plate under uniaxial tension, the factor is determined using the semi-axes lengths 'a' and 'b' via Kt = 1 + 2(a/b). In anisotropic or composite materials, additional elastic constants come into play, incorporating Young's moduli in orthogonal directions (Ex and Ey), the in-plane shear modulus (Gxy), and the Poisson ratio to accurately predict stress magnification.

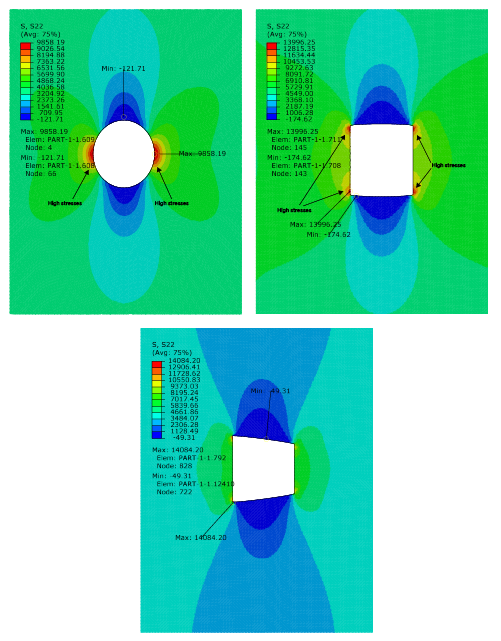

Consider a metallic structural plate featuring a central circular hole subjected to uniform tensile loading. Suppose the measured maximum stress right at the edge of the hole reaches 150 MPa, while the far-field nominal stress applied to the overall cross-section is 50 MPa. Using the primary definition formula, Kt = Max_Stress / Nom_Stress, we substitute our values: Kt = 150 / 50 = 3.0. This indicates that the local stress at the edge of the hole is three times higher than the nominal applied stress, highlighting the severe amplification caused by the geometric discontinuity.

Always ensure your nominal stress calculations account for the reduced cross-sectional area caused by holes or notches rather than using the gross area of the part. When analyzing composite materials, double-check your directional elastic moduli (Ex and Ey) and shear modulus units to avoid scaling errors. Finally, remember that Kt is strictly a geometric and material property independent of the load magnitude within the linear-elastic range; once yielding begins, plasticity models must be applied.
