Spring Rate Calculator

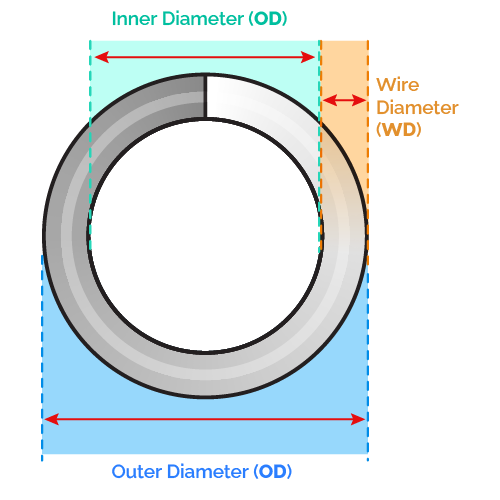

Spring rate, often denoted as 'k', measures the stiffness of a spring by determining the force required to compress or stretch it by a specific unit of distance. The fundamental equation relies on the physical dimensions of the spring and the shear modulus of its material. First, the mean diameter or external diameter relative to the wire diameter is established. The active coils formula accounts for how many turns actually absorb energy, subtracting the dead coils at the ends. The governing formula for spring rate is: springRate = (G * d^4) / (8 * D^3 * n), where G is the shear modulus, d is the wire diameter, D is the mean coil diameter, and n represents the active coils.

Let us calculate the spring rate for a high-carbon steel compression spring. Assume a wire diameter (d) of 2 mm, an external diameter of 22 mm (meaning the internal diameter is 18 mm, yielding a mean diameter of 20 mm), a shear modulus (G) for steel of 79,300 MPa, and 10 total coils with 2 end coils (giving n = 8 active coils). First, compute the cube of the mean diameter: 20^3 = 8000. Next, compute the fourth power of the wire diameter: 2^4 = 16. Multiply the shear modulus by the wire diameter power: 79300 * 16 = 1,268,800. Multiply the denominator components: 8 * 8000 * 8 = 512,000. Finally, divide the numerator by the denominator: 1,268,800 / 512,000 = 2.478 N/mm. Thus, the spring rate is approximately 2.48 N/mm.

Always double-check your measurements using digital calipers to ensure precise wire and diameter inputs, as microscopic variations in wire thickness dramatically alter spring stiffness due to the fourth-power relationship. Additionally, account for your manufacturing process when counting end coils, since ground ends differ significantly from squared and unground ends in how they impact active coil counts.
