Spring Calculator

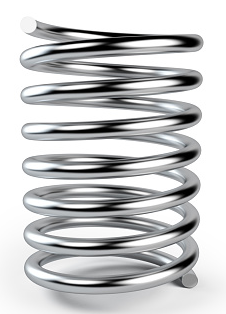

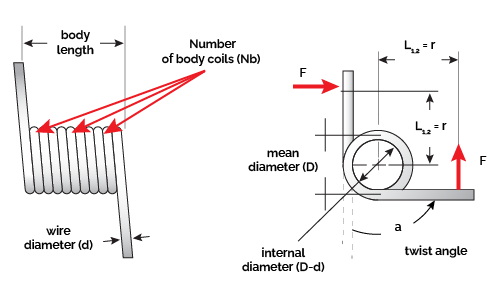

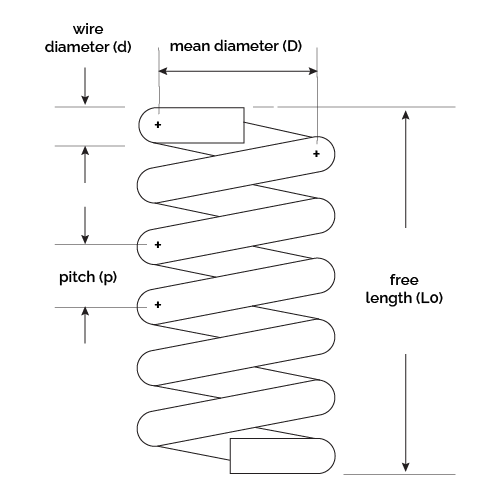

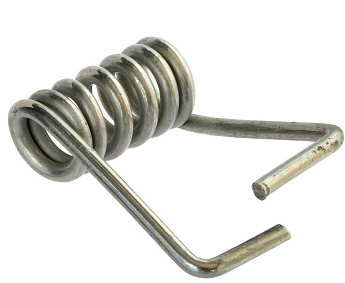

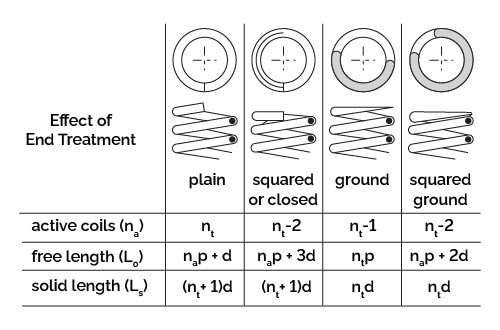

Spring mechanics rely on Hooke's Law and fundamental material properties. For a standard linear compression spring, the spring constant (k) is determined by the formula: k = (G * d^4) / (8 * D^3 * Na), where G is the rigidity modulus of the material, d is the wire diameter, D is the mean coil diameter, and Na represents the number of active coils. Once the spring constant is established, the restoring force is calculated as F = -k * Δx, mapping the relationship between applied force and displacement. For torsion springs, the rotational stiffness is calculated using the elastic modulus and angular deflection.

Consider a steel compression spring with a wire diameter (d) of 0.2 inches, a mean coil diameter (D) of 1.0 inch, and 10 active coils (Na). Assuming a typical rigidity modulus (G) of 11,500,000 psi for steel, we first find the spring constant: k = (11,500,000 * 0.2^4) / (8 * 1.0^3 * 10). Since 0.2^4 is 0.0016, the numerator is 18,400. The denominator is 80, yielding a spring constant k = 230 lbf/in. If this spring is compressed by a displacement (Δx) of 2 inches, the resulting force is F = 230 lbf/in * 2 in = 460 lbf.

When designing or analyzing springs, always verify that your units are consistent—mixing inches and millimeters will lead to catastrophic calculation errors. Pay close attention to the spring index (the ratio of mean diameter to wire diameter); an index between 4 and 12 is ideal for manufacturability. Finally, ensure your deflection does not push the spring beyond its elastic limit, which causes permanent deformation.
