Shear Stress Calculator

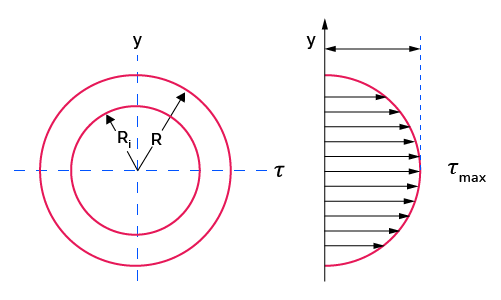

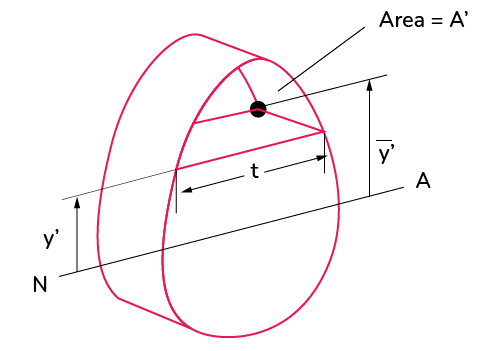

Shear stress (typically denoted by the Greek letter tau, τ) measures the magnitude of forces acting parallel to a plane surface, divided by the cross-sectional area over which those forces act. Depending on the geometry and type of loading, different formulas apply. For instance, transverse shear stress in a rectangular beam uses the formula τ = (V × Q) / (I × b), where V represents the transverse shear force, Q is the first moment of area, I is the area moment of inertia, and b is the width. For solid circular shafts subjected to twisting forces, torsional shear stress is computed as τ = (T × R) / J, where T is the applied torque, R is the outer radius, and J is the polar moment of inertia.

Consider a solid circular steel shaft subjected to a pure twisting torque. Let us calculate the torsional shear stress given a torque (T) of 500 N·m and an outer radius (R) of 0.05 meters (5 cm). First, find the polar moment of inertia (J) for a solid circle using the formula J = (π / 2) × R⁴. Substituting our radius, J = (π / 2) × (0.05)⁴ ≈ 9.8175 × 10^-7 m⁴. Next, apply the torsional shear stress equation: τ = (2 × T) / (π × R³). This yields τ = (2 × 500) / (π × (0.05)³) = 1000 / 0.0003927 ≈ 2,546,479 Pa, or roughly 2.55 MPa of shear stress at the outer surface of the shaft.

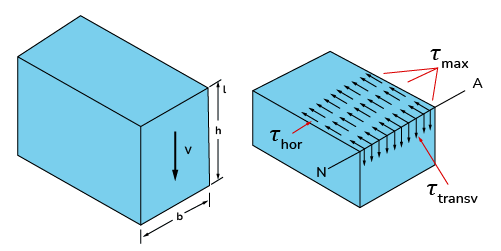

Always ensure consistent SI units (such as Newtons for force and meters for length) before plugging values into any shear stress equation to avoid massive conversion errors. When evaluating structural beams, remember that transverse shear stress is never uniform across the entire cross-section; it typically reaches its maximum value at the neutral axis of a rectangular profile. Finally, always verify whether your component experiences pure torsion, direct shear, or a combined loading state, as picking the wrong equation will lead to inaccurate safety margins.
