Shear Strain Calculator

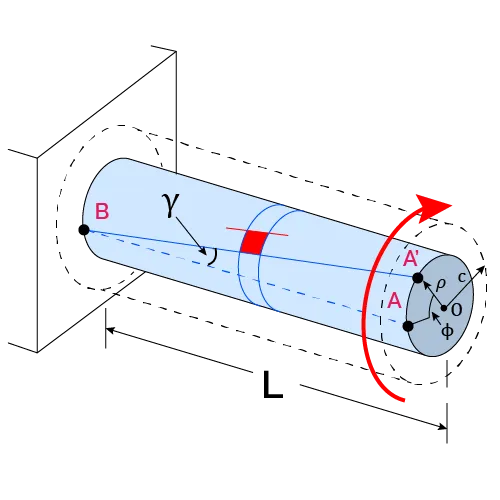

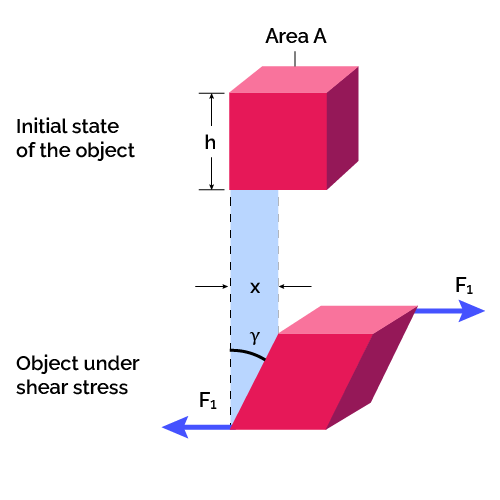

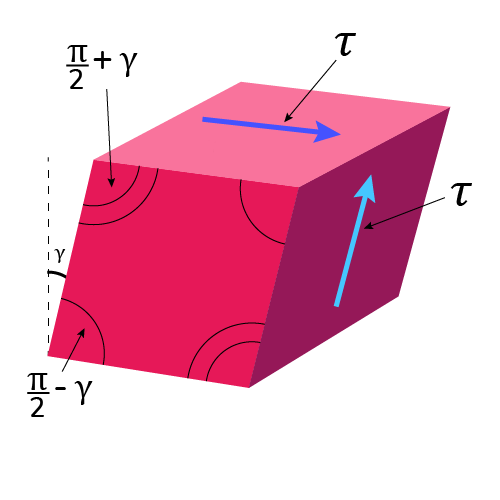

Shear strain measures the angular deformation of a material element rather than a change in its volume or length. Depending on your specific mechanical scenario, the calculator uses distinct formulas. For simple rectangular shear, the formula is γ = Δx / h, where Δx represents the lateral displacement and h represents the transverse dimension or height. In rotational or torsional applications, shear strain is determined by the twist angle θ, the radial distance from the center axis r, and the total length of the member L, expressed as γ = (r × θ) / L. Additionally, when dealing with material properties under stress, shear strain can be derived using Hooke's law for shear: γ = τ / G, where τ is shear stress and G is the shear modulus.

Consider a solid steel structural block where a lateral force causes the top surface to displace horizontally by 0.005 meters relative to the fixed bottom surface. The height (transverse dimension) of the block between these parallel planes is 0.10 meters. Using the simple shear strain formula: γ = Δx / h. Substituting our values: γ = 0.005 / 0.10 = 0.05. Because shear strain is a dimensionless ratio representing a change in angle expressed in radians, the resulting shear strain is 0.05 radians.

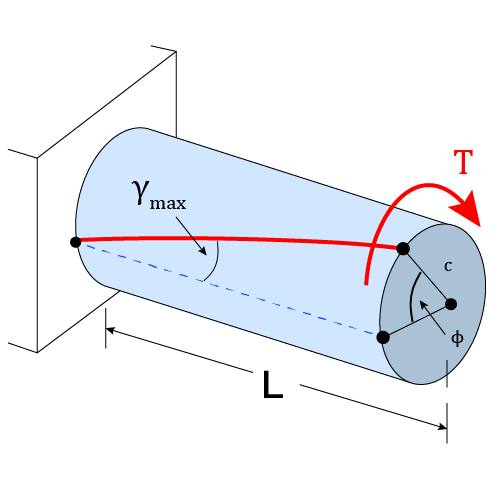

Always ensure your input units are consistent before running any calculation; mixing millimeters and meters is the most common source of error. Remember that shear strain is technically dimensionless, but results are typically interpreted and communicated in radians for small-angle approximations. When evaluating torsional systems, double-check whether you need the maximum strain at the outer surface (using the full radius) or the strain at a specific internal point (using a fractional radius).
