Section Modulus Calculator

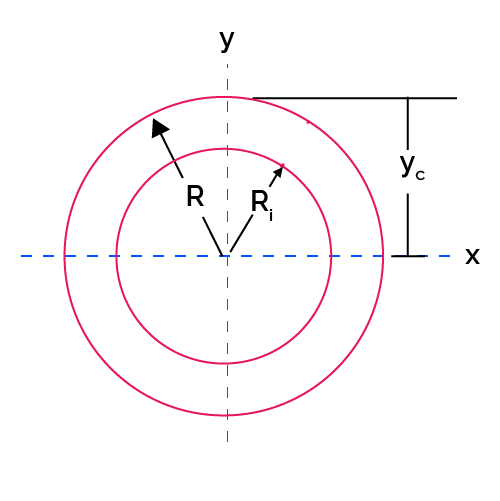

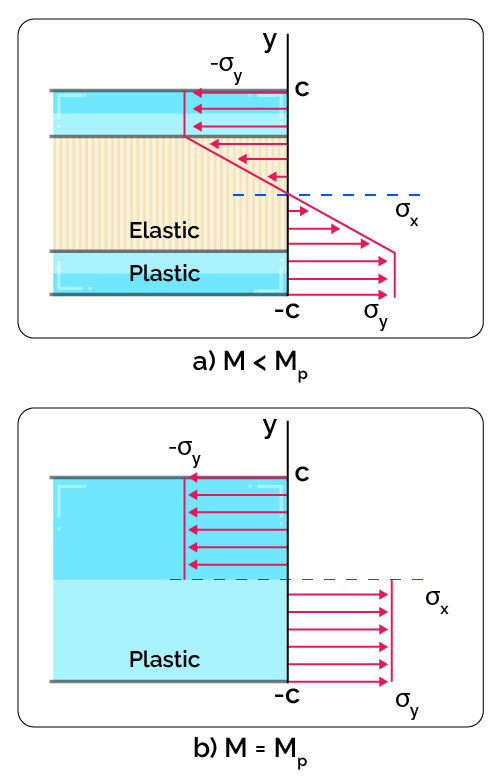

Section modulus bridges geometry and mechanics by quantifying a cross-section's resistance to bending. There are two primary types: the elastic section modulus ($S$) and the plastic section modulus ($Z$). The elastic section modulus is calculated by dividing the second moment of area ($I$) by the distance from the neutral axis to the outermost extreme fiber ($c$), expressed as $S = I / c$. For simple geometric forms like a solid rectangle of base $b$ and height $h$, the elastic modulus simplifies to $S_x = bh^2 / 6$. Meanwhile, the plastic section modulus accounts for full cross-sectional yielding and relies on the equal-area axis, offering a higher capacity threshold used in ultimate limit state design.

Consider a solid wooden rectangular beam used in residential construction with a base ($b$) of 4 inches and a height ($h$) of 10 inches. To find its elastic section modulus along the major axis ($S_x$), we apply the standard rectangular formula: $S_x = \frac{b \cdot h^2}{6}$. Substituting our values: $S_x = \frac{4 \cdot 10^2}{6} = \frac{4 \cdot 100}{6} = \frac{400}{6} \approx 66.67 \text{ in}^3$. Next, to determine its plastic section modulus ($Z_x$), we use the formula $Z_x = \frac{b \cdot h^2}{4}$, which yields $\frac{4 \cdot 100}{4} = 100 \text{ in}^3$. This calculation shows that the beam's plastic capacity is significantly higher than its elastic limit, providing vital safety insights for peak loading scenarios.

Always verify your units before running calculations, as mixing inches and feet or millimeters and meters will introduce massive errors into your stress evaluations. Pay close attention to the orientation of your loading axis; the major axis ($x-x$) and minor axis ($y-y$) possess vastly different section moduli due to how material distribution changes relative to the neutral bending line. Finally, remember that elastic modulus dictates initial yielding, whereas plastic modulus governs ultimate collapse capacity, so select the appropriate metric based on your building code requirements.
