RMS Voltage Calculator

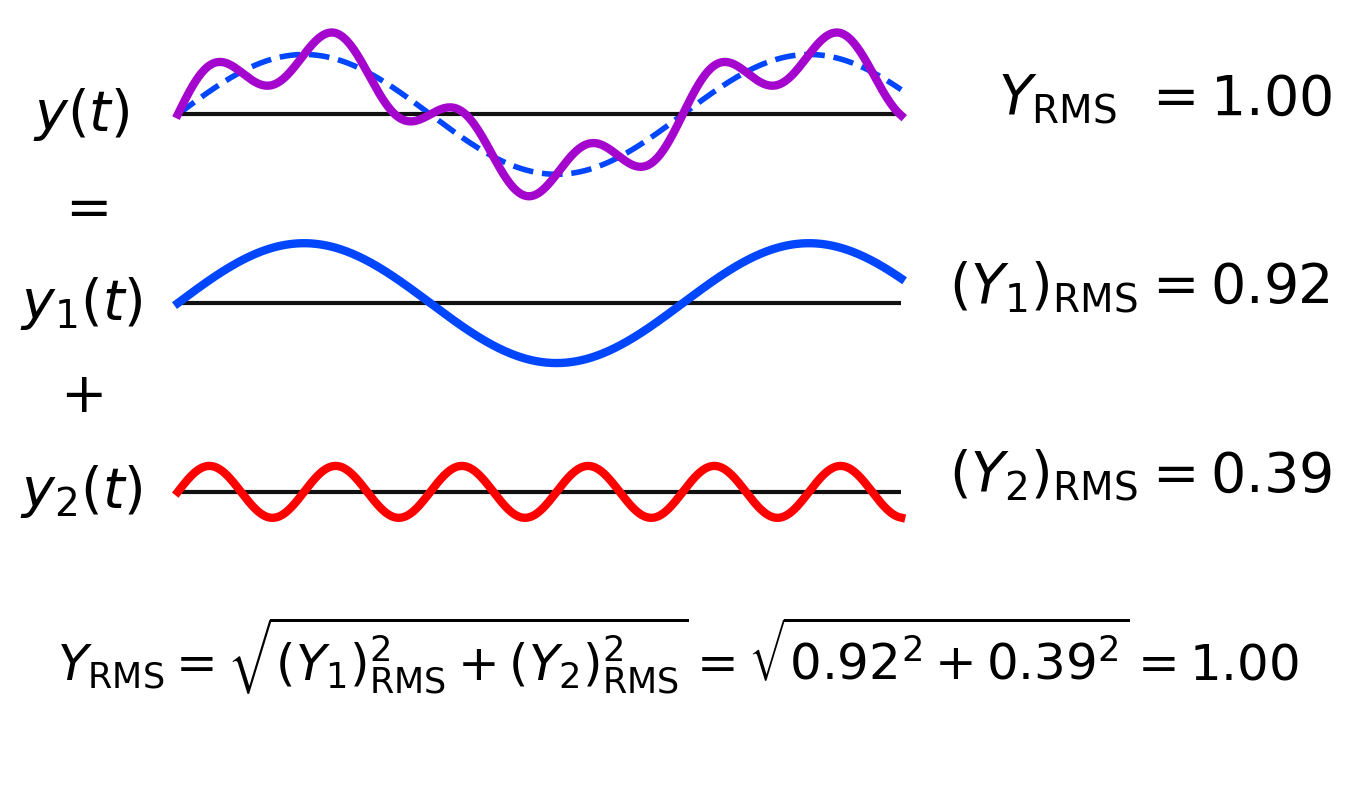

Root-Mean-Square (RMS) voltage represents the effective or DC-equivalent value of a varying electrical signal that delivers the exact same power to a resistive load as a constant DC voltage. The mathematical definition involves squaring the instantaneous voltage function, computing its mean over a full period, and taking the square root. Depending on the waveform type (such as sine, square, triangle, or rectified waves) and whether your known input is peak voltage (Vp), peak-to-peak voltage (Vpp), or average voltage (Vavg), the formula adjusts accordingly. For example, a standard sinusoidal wave with peak voltage Vp and a DC offset has an RMS formula of V_rms = sqrt(V_offset^2 + (V_input^2)/2).

Let us calculate the RMS voltage for a standard sinusoidal AC signal with a peak voltage (Vp) of 10 volts and a DC offset of 2 volts. First, identify your input variables: V_input = 10 V and V_offset = 2 V. Using the sine wave peak voltage formula, V_rms = sqrt(V_offset^2 + (V_input^2)/2). Substitute the numbers into the equation: V_offset squared equals 2^2 = 4. Next, square the peak voltage and divide by 2: (10^2)/2 = 100 / 2 = 50. Add the DC offset component and the AC component together: 4 + 50 = 54. Finally, take the square root of 54, which yields approximately 7.35 volts. Thus, the effective RMS voltage of this biased sinusoidal signal is 7.35 V.

Always verify whether your measurement device reports peak-to-peak, peak, or average voltage before inputting data, as mixing these up will lead to massive calculation errors. Pay close attention to DC offsets; even a minor constant shift in your waveform alters the total RMS value significantly due to the squared terms in the equation. When working with non-standard or highly distorted waveforms, standard analytical formulas may fall short, and numerical integration or specialized hardware analysis might be required.
