Radar Horizon Calculator

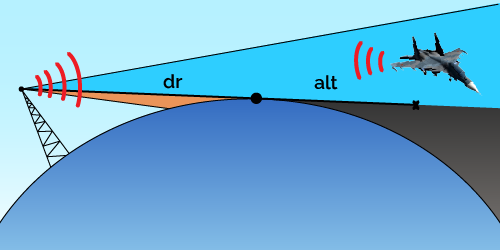

Because radio waves travel in near-straight lines while the Earth's surface curves away, the radar horizon is fundamentally limited by geometry. The core formula for the radar horizon distance (d) based on antenna height (h) and Earth's radius (R approx 6,371,009 meters) is derived from the Pythagorean theorem: d = sqrt(h^2 + 2Rh). For standard atmospheric conditions, radio waves are bent slightly downward due to changing air density. To account for this refraction, standard models use an effective Earth radius multiplier of 4/3, modifying the formula to d_ref = sqrt((8/3)Rh). The total maximum detection distance is the sum of the radar's horizon distance and the target's horizon distance.

Consider an air traffic control radar antenna mounted at a height (h_radar) of 50 meters, attempting to detect an aircraft flying at an altitude (h_target) of 3,000 meters. First, we calculate the geometric radar horizon: horizon_radar = sqrt(50^2 + (2 * 6,371,009 * 50)) = approximately 25,241 meters (25.2 km). Next, we calculate the target's visibility horizon: visibility_target = sqrt(3000^2 + (2 * 6,371,009 * 3000)) = approximately 195,849 meters (195.8 km). Combining these values gives a maximum line-of-sight distance of 221,090 meters, or roughly 221 kilometers. Applying the 4/3 refraction correction factor yields an even greater effective detection range due to atmospheric bending of the radio frequency waves.

Always verify whether your calculations require standard atmospheric refraction (the 4/3 Earth radius model) or strict geometric line-of-sight, as weather conditions can significantly alter radio wave propagation. Keep in mind that terrain obstructions like mountains or tall buildings can create physical blockages even if the mathematical horizon indicates a clear line of sight. When planning long-range surveillance networks, account for radar frequency bands, as lower frequencies experience different atmospheric diffraction properties than high-frequency microwaves.
