Piston Force Calculator

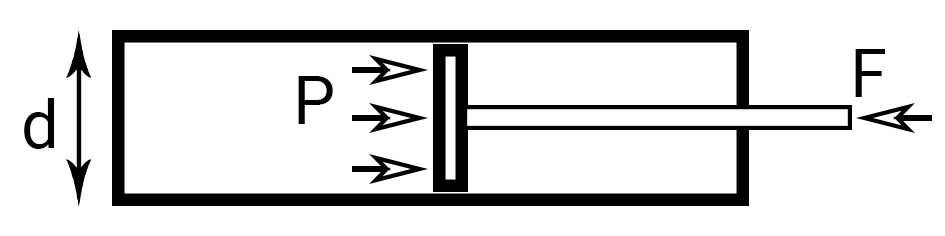

The operation of any hydraulic or pneumatic piston relies fundamentally on Pascal's law, which states that pressure applied to an enclosed fluid is transmitted undiminished to every part of the fluid. To find the resulting mechanical force exerted by the piston, the calculator utilizes two core formulas. First, if you begin with the cylinder diameter rather than the surface area, it computes the circular face area using the equation: Area = π × (Diameter²) / 4. Once the effective area is established, the total mechanical force is derived by multiplying that area by the applied fluid pressure: Force = Pressure × Area. Maintaining consistent SI or Imperial units throughout these steps ensures accurate results every time.

Imagine you are analyzing a hydraulic press used in a manufacturing plant. The pneumatic cylinder features a piston diameter of 0.1 meters (10 centimeters) and operates under a consistent fluid pressure of 500,000 Pascals (0.5 MPa). First, we calculate the surface area of the piston face using our area formula: Area = 3.14159 × (0.1²) / 4, which yields approximately 0.007854 square meters. Next, we determine the total output force by multiplying this area by the operating pressure: Force = 500,000 Pa × 0.007854 m². This calculation reveals a total output force of 3,927 Newtons, giving you the exact mechanical capacity needed for your engineering assessment.

To ensure your calculations remain accurate and safe for real-world applications, always verify your units of measurement before computing. Mixing metric units (like Pascals and meters) with Imperial units (like PSI and inches) will lead to massive calculation errors. Additionally, always account for mechanical friction and seal resistance in physical systems, as theoretical force calculations represent ideal conditions rather than exact real-world net output. Finally, double-check your pressure ratings to ensure your components operate safely below maximum material thresholds.
