NPSH Calculator – Net Positive Suction Head

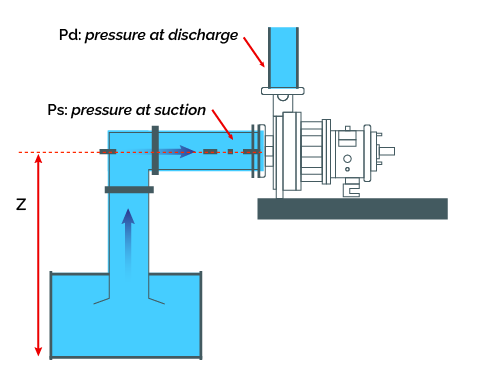

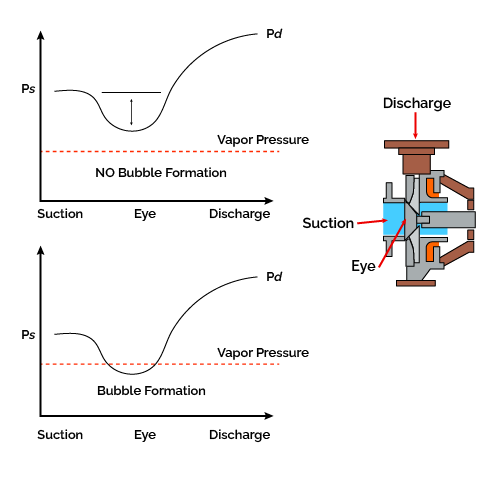

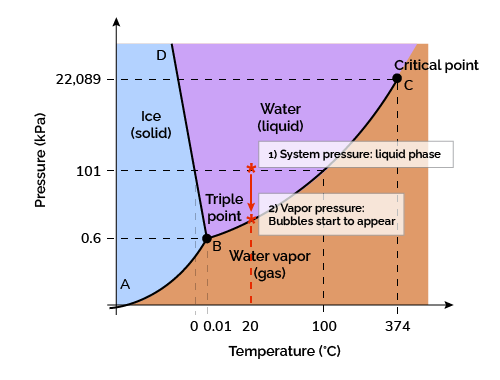

Net Positive Suction Head Available (NPSHA) measures the absolute pressure of a liquid at the suction port of a pump to subtract its vapor pressure, ensuring the fluid remains in a liquid state. The foundational equation is: NPSHA = HeadSurface - HeadVapour - PosFactor * LevelFluidPump - HeadLossFriction. Here, surface head represents the total pressure acting on the fluid surface divided by fluid density and gravity (HeadSurface = (PAtm + ReservoirPressure) / (Density * Gravity)). Vapor head accounts for the fluid's tendency to vaporize at a given temperature, formulated as HeadVapour = VaporPressure / (Density * Gravity). Friction losses and elevation heads are then subtracted to yield the final safety margin.

Consider a water pumping system operating at standard atmospheric pressure (PAtm = 101,325 Pa) with a reservoir pressure of 0 Pa. The water density is 1000 kg/m³, gravity is 9.81 m/s², and vapor pressure is 2,339 Pa at 20°C. First, calculate the surface head: HeadSurface = (101325 + 0) / (1000 * 9.81) = 10.33 meters. Next, calculate the vapor head: HeadVapour = 2339 / (1000 * 9.81) = 0.24 meters. Assuming the fluid level is 2 meters above the pump centerline (PosFactor = 1, LevelFluidPump = 2 m) and friction losses in the suction piping equal 1.5 meters, we apply the main formula: NPSHA = 10.33 - 0.24 - (1 * 2) - 1.5 = 6.59 meters. This positive margin indicates a healthy setup well above typical vapor thresholds.

Always ensure your calculated NPSH Available comfortably exceeds the pump manufacturer's NPSH Required (NPSHR) by at least 0.5 to 1 meter to account for system fluctuations. Lowering fluid temperature or increasing the static head by raising the source reservoir can drastically improve your suction margin. Regularly inspect suction lines for clogs or partial blockages that artificially inflate friction losses and trigger unexpected vapor bubble formation.
