Normal Force Calculator

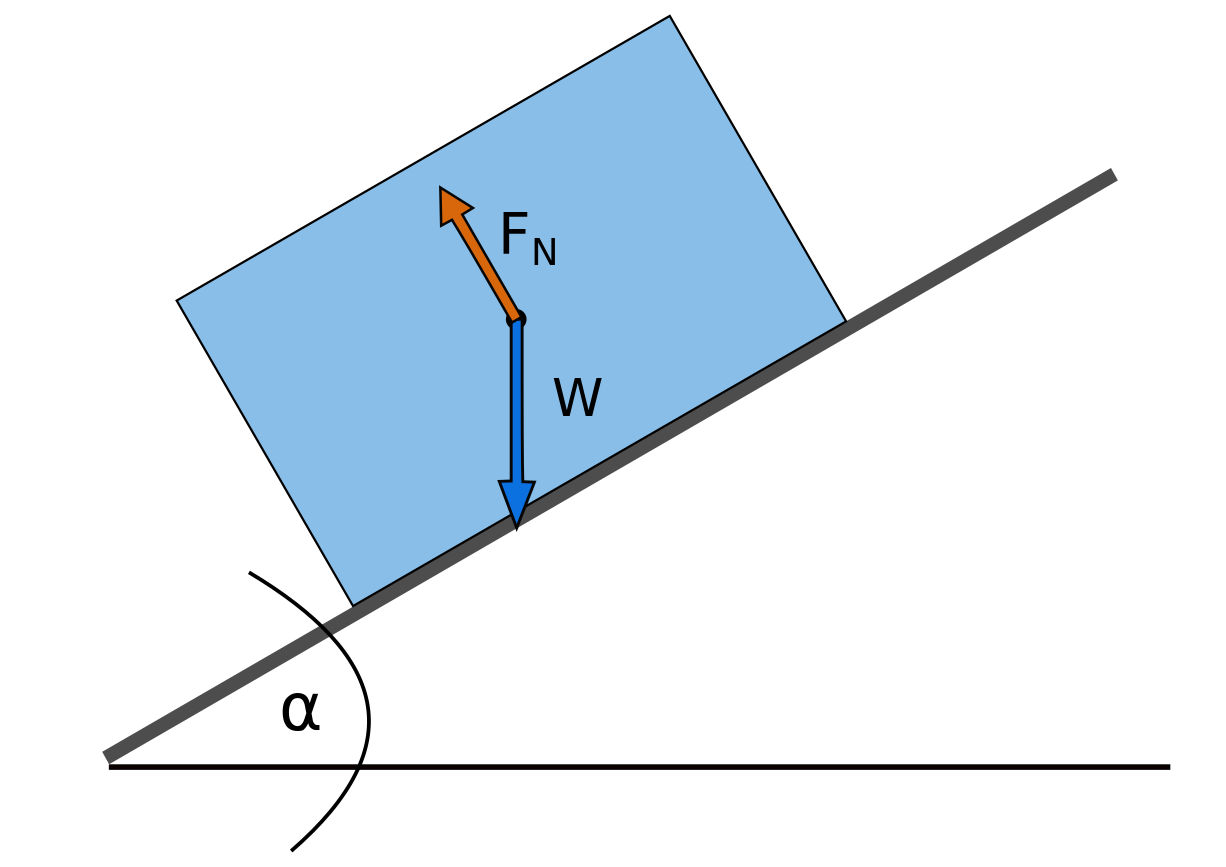

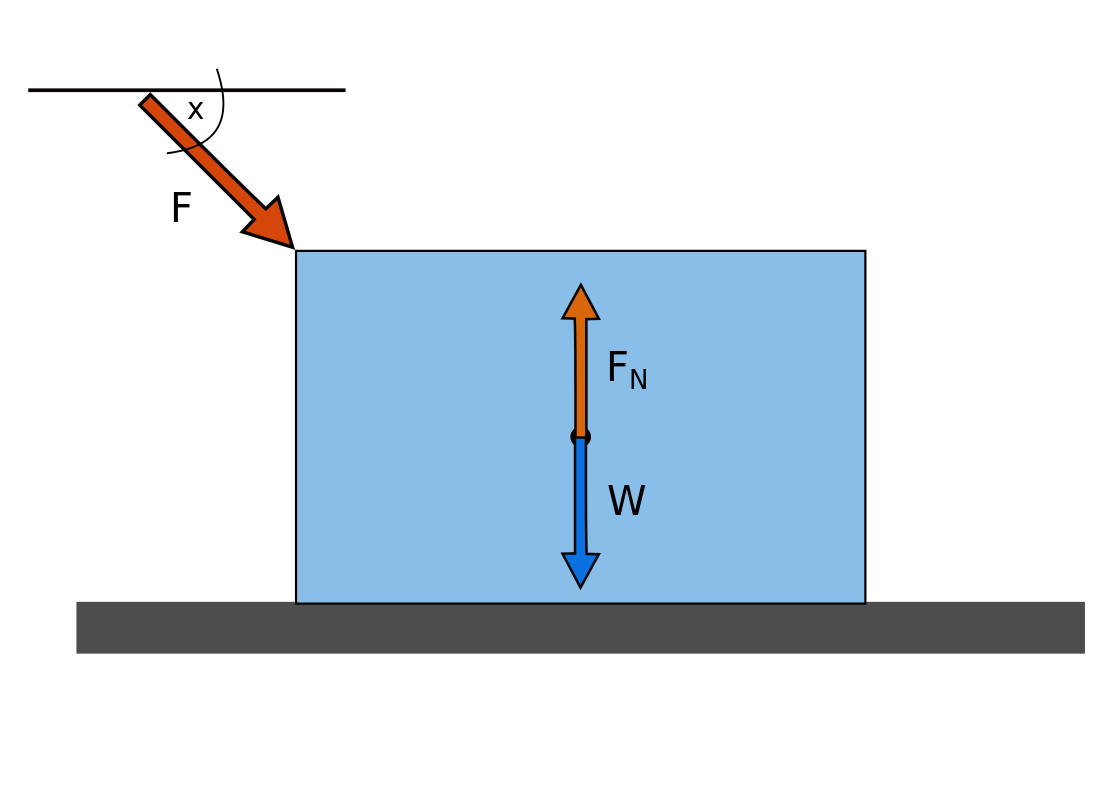

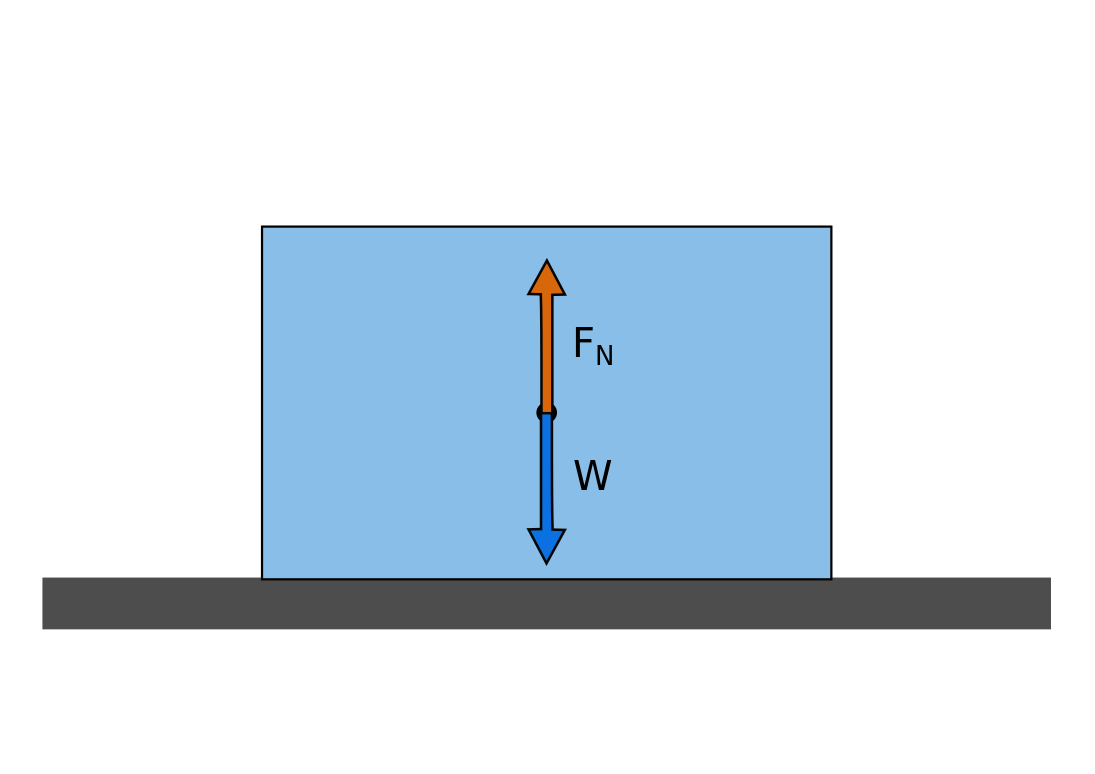

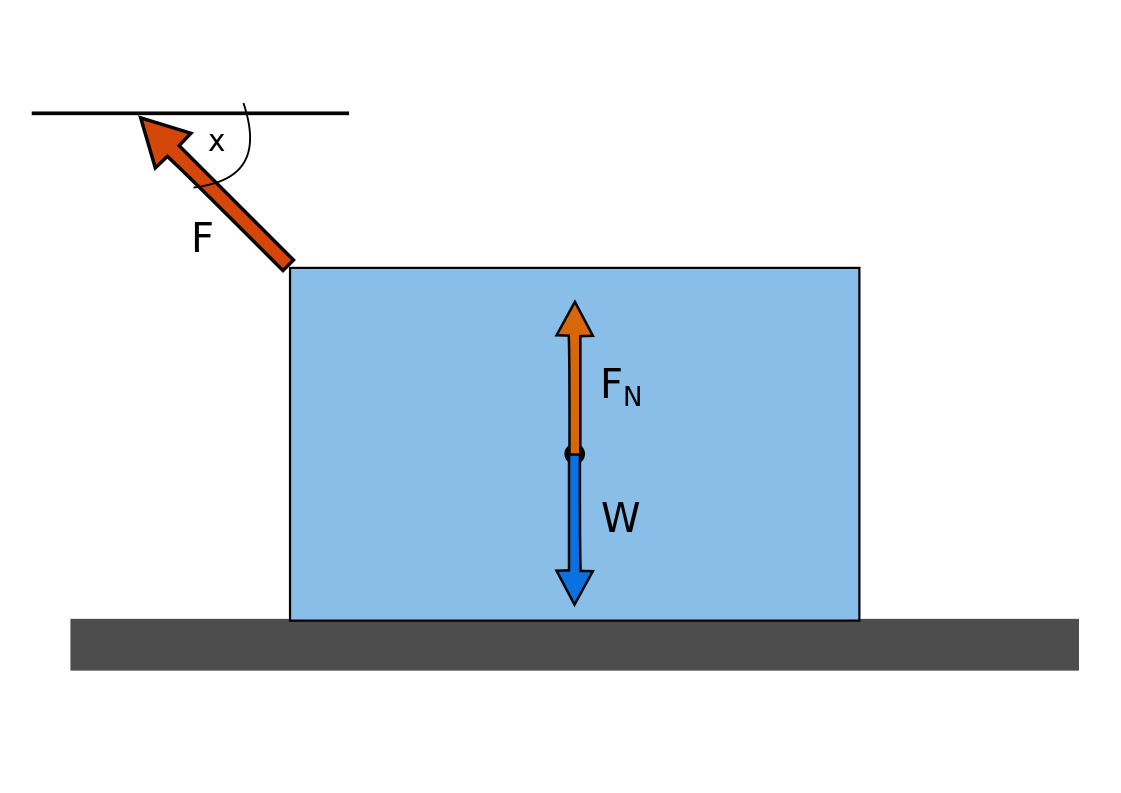

The normal force (often denoted as N) represents the push that a surface applies to an object resting upon it, resisting the pull of gravity and preventing the object from sinking through the material. On a standard horizontal flat surface with no vertical external forces, the normal force simply balances the object's weight: normal_force = mass * gravity. When an object rests on a slope, the surface only supports a component of the gravitational load, which is scaled by the cosine of the inclination angle (a): normal = mass * gravity * cos(a). Furthermore, if external forces push down onto or pull up from the object, those vertical vector components are added or subtracted from the baseline gravitational load respectively.

Imagine a crate with a mass of 20 kilograms resting on a ramp inclined at an angle of 30 degrees relative to the horizontal. To find the normal force exerted by the ramp, we use the inclined plane formula: normal = mass * gravity * cos(a). Assuming standard Earth gravity (g = 9.81 m/s²), we first calculate the weight as 20 kg * 9.81 m/s² = 196.2 Newtons. Next, we find the cosine of 30 degrees, which is approximately 0.866. Multiplying these values together gives normal = 196.2 * 0.866 = 169.91 Newtons. Thus, the ramp exerts an upward perpendicular support force of 169.91 Newtons on the crate.

Always double-check your angle units before performing calculations, ensuring your calculator is set to degrees or radians as required. Remember that external forces pushing straight down into an object will increase the normal force, whereas external forces lifting upward will decrease it. A common mistake is using the sine function instead of cosine for inclined planes; always remember that cosine measures the component adjacent to the angle of the surface slope.
