555 Timer Calculator

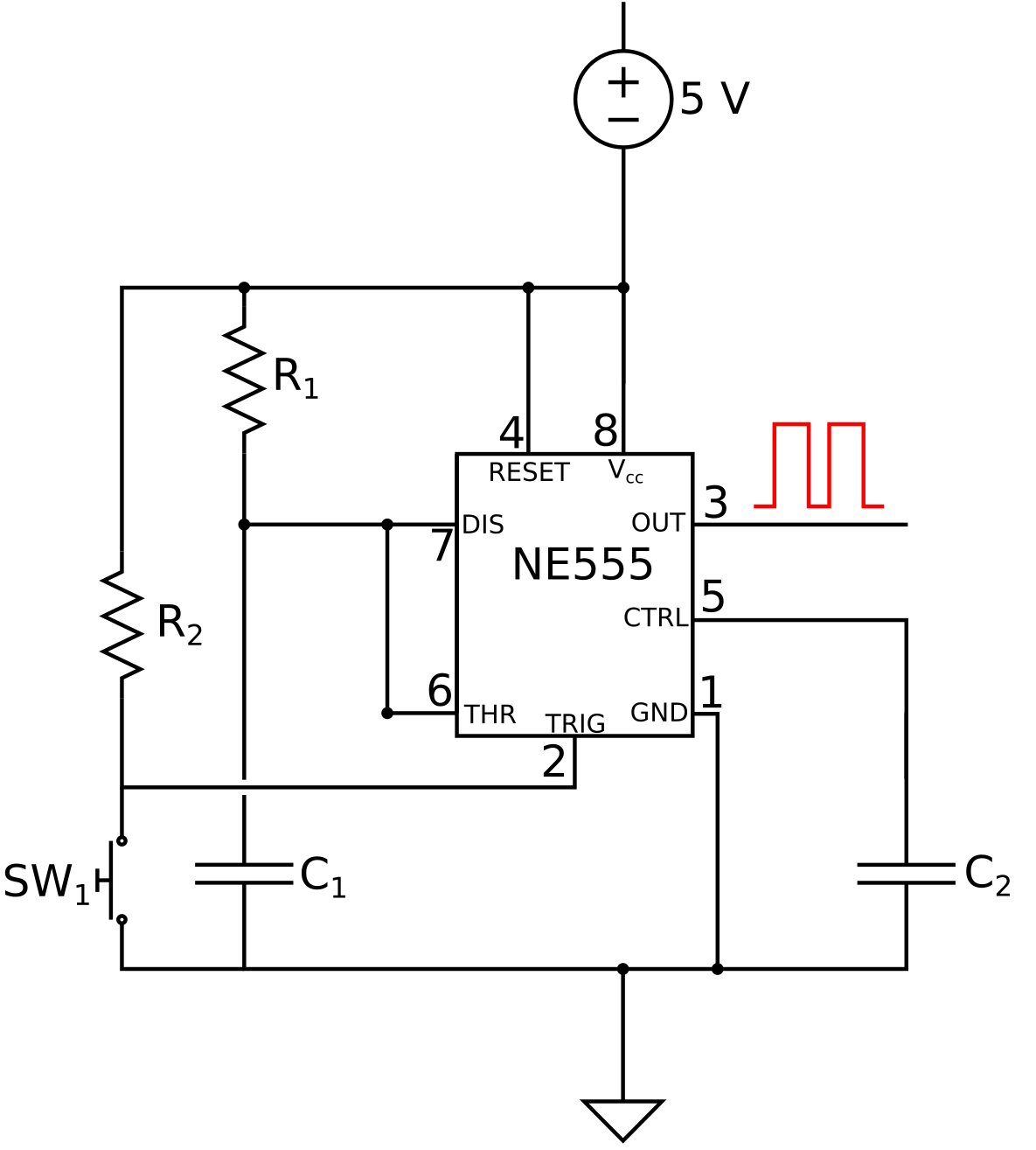

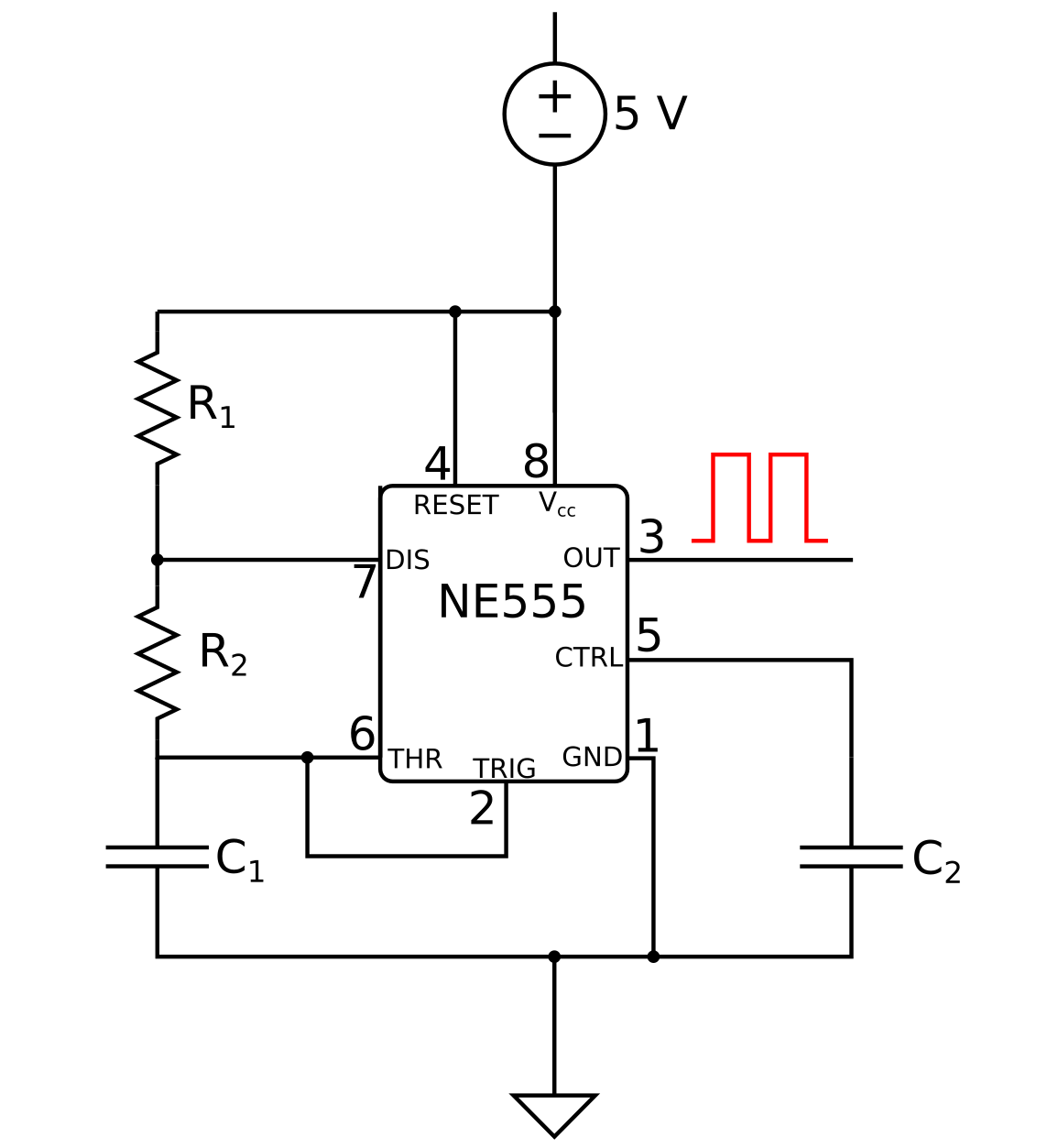

In astable configuration, the NE555 timer acts as an oscillator, continuously switching between a high and low output state without external triggering. The timing behavior depends on resistors R1_a, R2_a, and capacitor C_a. The capacitor charges through both R1_a and R2_a, determining the high output time (t_high = ln(2) * (R1_a + R2_a) * C_a). It then discharges only through R2_a, determining the low output time (t_low = ln(2) * R2_a * C_a). The total period (T) is the sum of t_high and t_low, allowing the frequency (f) to be found as 1/T. Finally, the duty cycle is calculated as the ratio of high time to total period multiplied by 100.

Imagine you are building a clock pulse generator and select standard components: R1_a = 1 kΩ (1,000 ohms), R2_a = 10 kΩ (10,000 ohms), and C_a = 10 µF (0.000010 farads). First, calculate the low time: t_low = 0.693 * 10,000 * 0.000010 = 0.0693 seconds. Next, calculate the high time: t_high = 0.693 * (1,000 + 10,000) * 0.000010 = 0.07623 seconds. The total period T is 0.0693 + 0.07623 = 0.14553 seconds, resulting in a frequency of approximately 6.87 Hz. The duty cycle evaluates to (0.07623 / 0.14553) * 100, which equals roughly 52.38%.

When picking component values, keep R1 above 1 kΩ to prevent excessive current draw and protect the discharge transistor inside the chip. Always use film or ceramic bypass capacitors across the power supply pins to filter out voltage noise and ensure stable oscillation. Keep in mind that electrolytic capacitors have wider manufacturing tolerances, which can cause your actual circuit frequency to deviate slightly from your theoretical calculations.
