Manometer Calculator

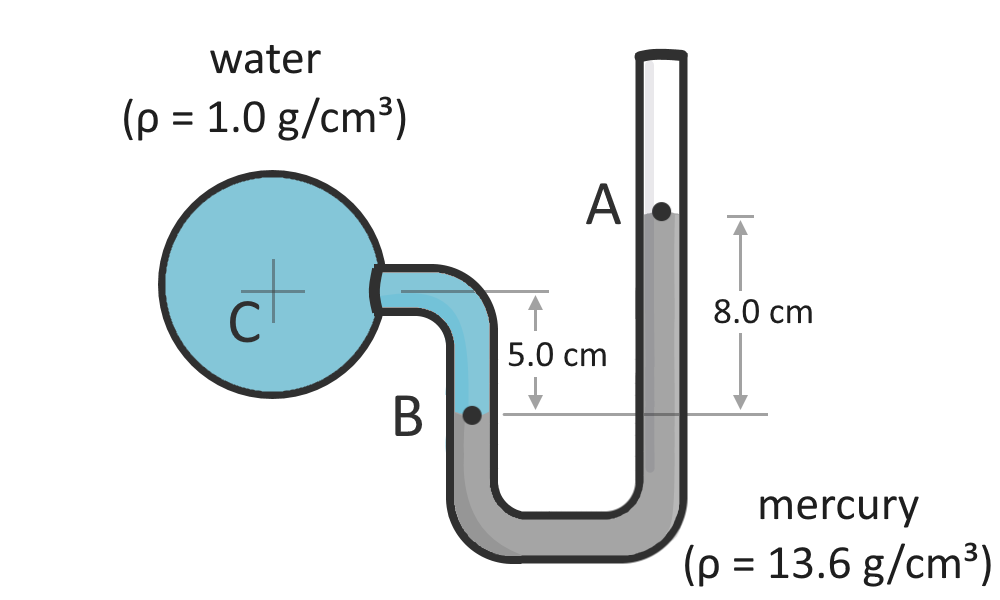

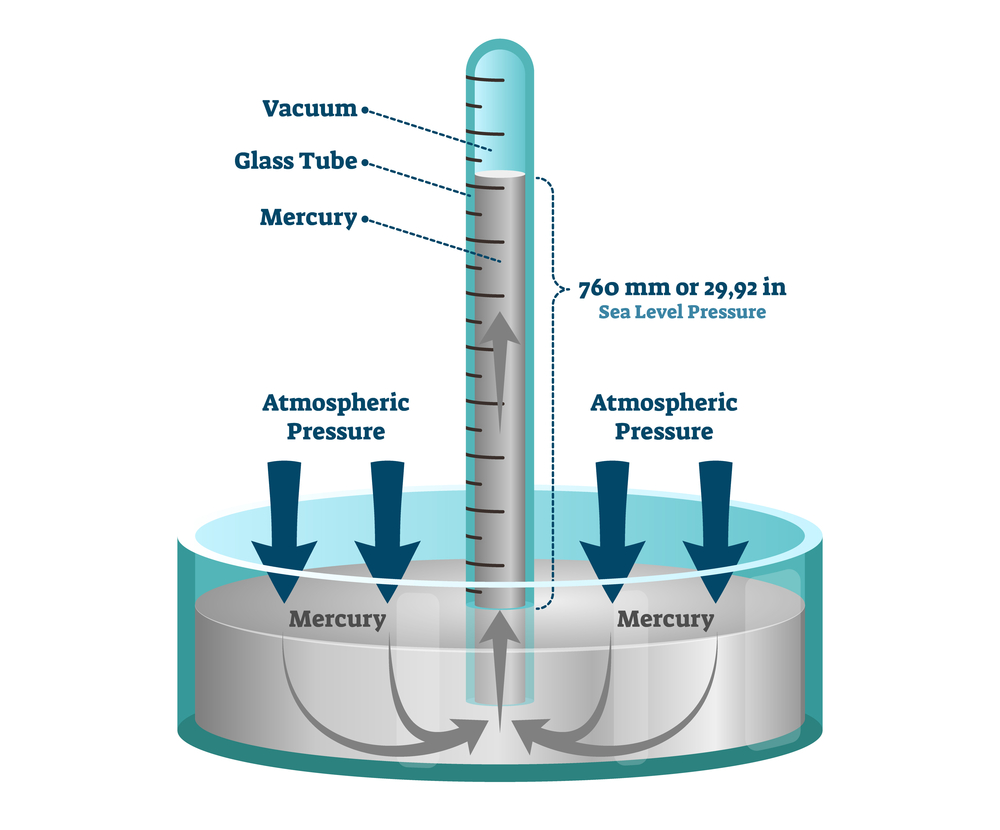

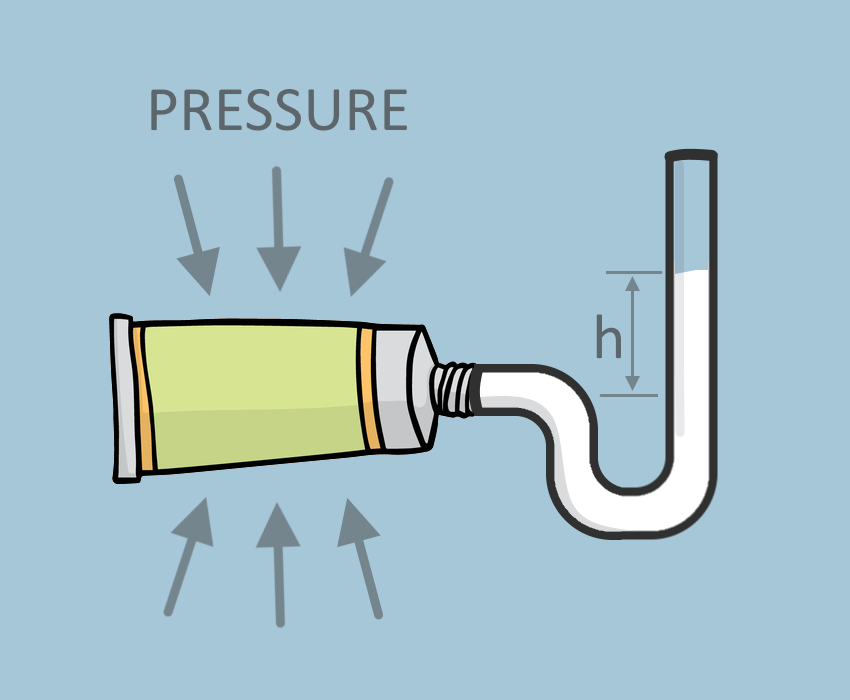

A manometer measures pressure using columns of liquid in equilibrium. The core mathematical relationship is governed by the hydrostatic pressure formula: P = ρ × g × h, where P represents the pressure exerted by the fluid column, ρ (rho) is the density of the fluid, g is the local acceleration due to gravity (standard is roughly 9.81 m/s²), and h is the height of the fluid column. When dealing with absolute pressure, the tool accounts for atmospheric pressure alongside the gauge pressure. For multi-fluid U-tube manometers, the calculator sequentially adds or subtracts the hydrostatic pressure contributions of each distinct fluid layer depending on whether the column rises or drops.

Let us walk through a practical physics problem using a simple fluid column. Suppose we want to determine the gauge pressure exerted by a column of water where the density of the fluid (ρ) is 1000 kg/m³, the gravitational acceleration (g) is 9.81 m/s², and the height of the column (h) is 0.75 meters. Step 1: Multiply the fluid density by gravitational acceleration: 1000 kg/m³ × 9.81 m/s² = 9,810 N/m³. Step 2: Multiply this result by the column height: 9,810 N/m³ × 0.75 m = 7,357.5 Pascals (Pa). Thus, the gauge pressure generated by the fluid column is 7,357.5 Pa, or approximately 7.36 kPa.

Always ensure your unit of measurement is consistent throughout the problem—convert centimeters to meters, and grams per cubic centimeter to kilograms per cubic meter before calculation. Pay close attention to fluid density values, as temperature changes can alter liquid density, especially in precision laboratory applications. Finally, double-check whether your scenario requires absolute pressure or gauge pressure, making sure to factor in standard atmospheric pressure (101,325 Pa) if you are transitioning from gauge to absolute values.
