Magnus Force Calculator

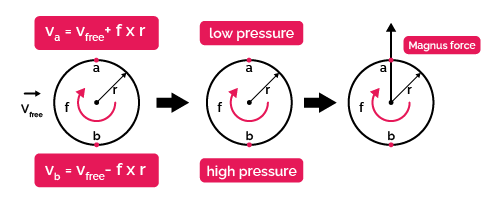

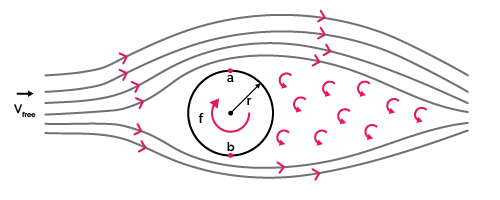

The Magnus effect occurs when a spinning object drags fluid around it, creating a differential in pressure across the object's trajectory. To calculate the total Magnus force (F_m), the calculator uses several sequential fluid dynamics formulas. First, the rate of rotation or rotational speed helps determine the vortex strength (Γ) using the radius of the object. The formula for vortex strength is Γ = 2 * π * radius * rotational_speed. Once the vortex strength is established, the final Magnus force is computed as F_m = density * vortex_strength * free_stream_velocity * length, where density represents the fluid medium and length refers to the span of the rotating cylinder.

Imagine a rotating cylinder used in an experimental marine propulsion system, moving through water. Let us calculate the Magnus force given the following parameters: fluid density is 1000 kg/m³ (water), the radius of the cylinder is 0.5 meters, its length is 4 meters, the free stream velocity of the fluid is 5 m/s, and the rotational speed is 10 radians per second. First, we compute the vortex strength: Γ = 2 * π * 0.5 * 10 = 31.416 m²/s. Next, we substitute this into the Magnus force equation: F_m = 1000 * 31.416 * 5 * 4. This yields a total Magnus force of approximately 628,320 Newtons, demonstrating the immense lateral force generated by high-speed rotation in dense fluids.

When using the Magnus Force Calculator, ensure that all input units are consistent, preferably using standard SI units (meters, kilograms, seconds, and radians) to avoid conversion errors. Keep in mind that this model assumes ideal uniform flow conditions and uniform cylinder geometry; real-world turbulence, boundary layer separation, and surface roughness can introduce minor variations in actual physical performance. Always double-check your fluid density values, as temperature and pressure changes can noticeably alter the density of gases like air.
