Magnetic Declination Calculator

Magnetic declination and its associated geomagnetic vectors (such as horizontal intensity H, vertical intensity Z, and total intensity F) are computed using complex global geomagnetic models like the World Magnetic Model (WMM). The fundamental calculation evaluates spherical harmonic expansions of Earth's magnetic potential V:

V = a * sum from n=1 to N (sum from m=0 to n ((a/r)^(n+1) * (g_n^m * cos(m*lambda) + h_n^m * sin(m*lambda)) * P_n^m(sin(phi))))

Where a is the reference radius of Earth, r is the radial distance from the center, phi is latitude, lambda is longitude, and g and h are Gauss coefficients that change over time (captured by variables like Decldot and Xdot) to account for core fluid dynamics inside Earth.

Imagine you are planning an expedition and need to find the magnetic declination for a campsite located at Latitude 45.0° N, Longitude 110.0° W, at an elevation of 2,000 meters, on January 1, 2026.

Step 1: Input your coordinates and elevation into the geomagnetic solver functions, setting the date to 2026.0.

Step 2: The algorithm evaluates the spherical harmonic coefficients for that specific radial vector, resulting in a baseline magnetic declination (Decl) of approximately 11.5° E.

Step 3: The tool also calculates the annual secular variation rate (Decldot), which might be +0.05° per year, ensuring your compass adjustments remain accurate for modern orienteering maps.

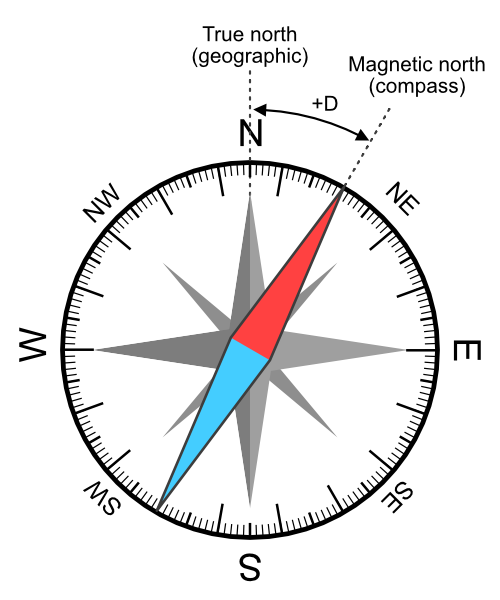

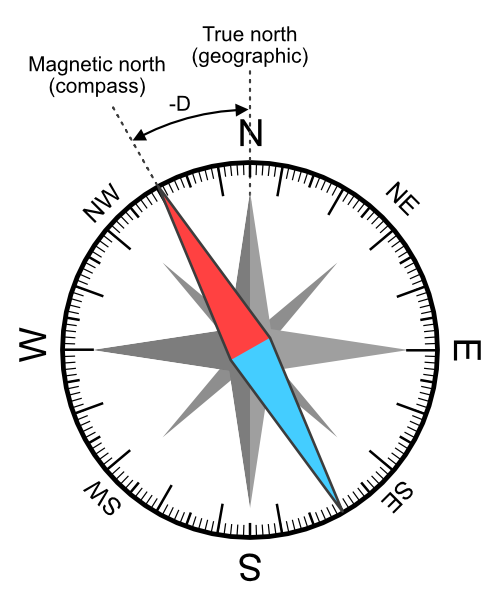

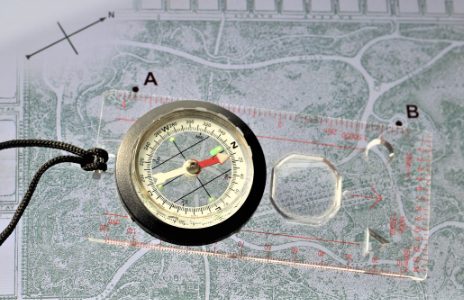

Always verify the publication date of your topographic map against the date used in your calculation, as magnetic poles drift continuously due to fluid movements in Earth's outer core. When transferring bearings from a map to a field compass, remember the simple rule: 'East is least, West is best'—meaning subtract easterly declination from your true bearing and add westerly declination. Finally, keep your compass away from electronic devices, vehicles, and metal belt buckles to prevent local magnetic anomalies from distorting your readings.
