Linear Actuator Force Calculator

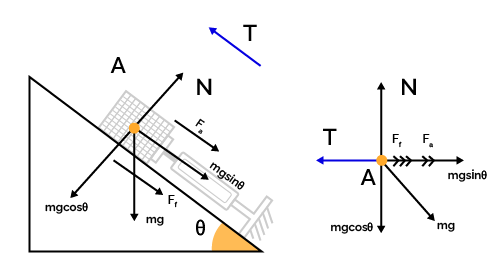

To find the total force required by an actuator, the calculator evaluates kinematic and dynamic principles based on your chosen actuation type. First, velocity is derived from stroke length and time: velocity = length / time. Next, acceleration is computed as acceleration = velocity / time. Depending on whether your system operates on an inclined plane or a flat horizontal surface, the tool applies Newton's second law of motion combined with frictional resistance. For inclined setups, the formula incorporates the mass, gravitational pull, inclination angle, and friction coefficient: actuator_force = (friction_coeff × gravity × cos(inclination_angle) + gravity × sin(inclination_angle) + acceleration) × mass. For horizontal applications, the gravitational sine term is omitted.

Imagine you are designing a motorized ramp that pushes a 15 kg crate upward. The specifications include a travel length of 2 meters, completed in 4 seconds, up an incline of 30 degrees. The surface has a friction coefficient of 0.15, and standard Earth gravity is 9.81 m/s². First, calculate velocity: 2 m / 4 s = 0.5 m/s. Then, compute acceleration: 0.5 m/s / 4 s = 0.125 m/s². Next, find the cosine and sine of 30 degrees (approx. 0.866 and 0.500 respectively). Substitute these values into the inclined force equation: Force = (0.15 × 9.81 × 0.866 + 9.81 × 0.500 + 0.125) × 15. This evaluates to (1.275 + 4.905 + 0.125) × 15, resulting in a required actuator force of approximately 94.55 Newtons.

Always incorporate a safety margin of at least 30% to 50% above your calculated force requirement to account for unexpected dynamic loads, mechanical wear, and voltage drops. Pay close attention to the difference between static load capacity and dynamic load capacity when purchasing hardware. Finally, remember that friction coefficients vary wildly depending on your contact materials, so using conservative estimates in your inputs prevents motor stalling.
