Lever Calculator

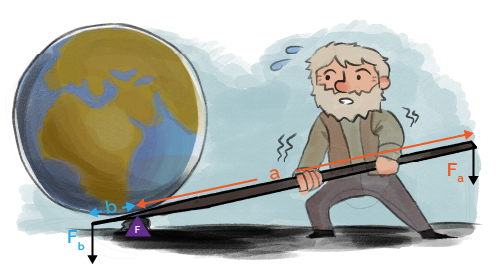

The mathematics behind levers relies on the principle of rotational equilibrium, where the torque applied by the effort must equal the torque applied by the resistance. The fundamental mechanical advantage ($MA$) of a lever is determined by dividing the distance from the fulcrum to the effort ($d_a$) by the distance from the fulcrum to the resistance ($d_b$). Furthermore, you can calculate the required effort force ($F_a$) needed to overcome a specific resistance force ($F_b$) using the rearranged balance equation: $F_a = (F_b \times d_b) / d_a$. This relationship allows you to multiply your input force significantly by adjusting the arm lengths.

Imagine you need to lift a heavy crate weighing $F_b = 600\text{ Newtons}$ using a rigid crowbar. You position the fulcrum so that the resistance arm ($d_b$) is $0.5\text{ meters}$ long, and your effort arm ($d_a$) extends $2.0\text{ meters}$ away. First, calculate the mechanical advantage: $MA = d_a / d_b = 2.0 / 0.5 = 4$. This means the lever multiplies your input force fourfold. Next, to find the required effort force ($F_a$), apply the formula: $F_a = (600 \times 0.5) / 2.0 = 150\text{ Newtons}$. You only need to exert $150\text{ Newtons}$ of force to move the $600\text{ Newton}$ crate.

Always ensure that your distance measurements for both the effort arm and the resistance arm use the exact same unit of measurement, such as meters or centimeters, to prevent calculation errors. Keep in mind that real-world levers experience friction at the fulcrum, meaning actual mechanical advantage will be slightly lower than the theoretical calculation. When designing mechanical systems, double-check that your materials can handle the high bending stresses concentrated near the fulcrum point.
