Laser Beam Spot Size Calculator

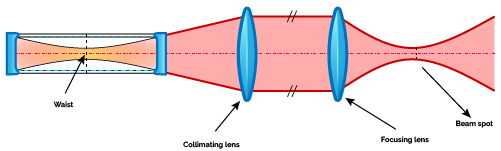

Gaussian beam optics govern how laser light propagates and focuses through a lens. The minimum focused spot diameter ($d_0$ or spot) is determined by the focusing lens focal length ($f$), the input beam diameter ($D$), the laser wavelength ($\lambda$), and the beam propagation factor ($M^2$ or beam_factor). The foundational equation used is:

spot = (4 * beam_factor * wavelength * focal_length) / (diameter * pi)

From the focused spot size, we can also determine the Rayleigh range ($z_R$), which is the distance along the propagation axis where the cross-sectional area of the beam doubles:

rayran = (pi * spot^2) / (4 * beam_factor * wavelength)

Finally, the total depth of focus, representing the usable working range where the beam remains tightly focused, is simply twice the Rayleigh range:

depth = 2 * rayran

Let us calculate the spot size for a standard red laboratory laser. Suppose you have a red helium-neon laser with a wavelength ($\lambda$) of 632.8 nanometers ($6.328 \times 10^{-5}$ cm) and a beam quality factor (beam_factor) of 1.1. The initial beam diameter entering the optic is 10 millimeters (1.0 cm), and you pass it through a focusing lens with a focal length ($f$) of 100 millimeters (10 cm).

First, plug the values into the spot size equation: spot = (4 * 1.1 * 0.00006328 cm * 10 cm) / (1.0 cm * 3.14159). This yields a focused spot size of approximately 0.000885 cm, or 8.85 micrometers.

Next, calculate the Rayleigh range using this spot size: rayran = (3.14159 * (0.000885 cm)^2) / (4 * 1.1 * 0.00006328 cm), which results in approximately 0.0087 cm (87 micrometers). Finally, double this value to find the depth of focus, giving roughly 174 micrometers of usable cutting or trapping depth.

To achieve the smallest possible spot size for high-intensity applications like micro-machining, you should aim to expand your input beam diameter before it hits the focusing lens; a larger input diameter inversely decreases the final spot size. Always account for your laser's $M^2$ (beam factor); a lower $M^2$ closer to 1.0 represents a pure Gaussian beam that focuses much more tightly than multimode lasers. Lastly, verify your units carefully, as mixing millimeters and nanometers is the most common cause of calculation errors in optical physics.
