Laser Beam Expander Calculator

An optical beam expander typically uses two lenses or curved mirrors to increase the diameter of a collimated light beam. The underlying physics relies heavily on focal lengths and geometrical optics. First, the magnifying power ($M$) is determined by the ratio of the objective lens focal length ($f_{obj}$) to the image or eyepiece lens focal length ($f_{img}$), adjusted by the optical configuration type: magnification_power = f_{obj} / (type * f_{img}). The true magnification is its reciprocal ($1 / M$). The output beam diameter scales up proportionally with this magnifying power: output_diameter = input_diameter * magnification_power. Simultaneously, beam divergence is compressed by the exact same magnification factor: output_divergence = input_divergence / magnification_power. Finally, the total beam diameter at a specific downstream distance ($L$) accounts for both the initial expanded waist and the spreading angle: diameter_at_distance_L = output_diameter + L * tan(2 * output_divergence).

Consider a laboratory setup where you want to expand a high-intensity Gaussian laser beam. Suppose your input laser has an initial beam diameter of 2.0 mm and an input divergence of 1.0 mrad. You choose an optical configuration with an image lens focal length of 25 mm and an objective lens focal length of 100 mm (type factor = 1). First, calculate the magnification power: 100 / (1 * 25) = 4. This means the system provides a 4x expansion. Next, determine the output beam diameter: 2.0 mm * 4 = 8.0 mm. For the output divergence, divide the input divergence by the magnification power: 1.0 mrad / 4 = 0.25 mrad. If you need to know the physical spread of the beam at a distance of 10 meters ($L = 10,000$ mm), evaluate the final equation: 8.0 mm + (10,000 * tan(2 * 0.00025 radians)), which yields approximately 13.0 mm total spot diameter at that distance.

When designing or aligning your optical train, keep these expert considerations in mind:

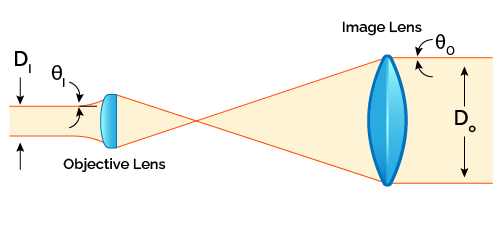

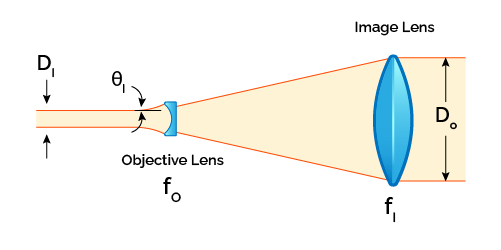

• Match Lens Types: Ensure you select the correct optical design type (such as Keplerian or Galilean) in the calculator, as internal focal points in Keplerian systems can cause air breakdown at high pulse energies.
• Keep Surfaces Clean: Expanded beams have lower fluence (energy per unit area) on downstream optics, preventing damage, but the lenses inside the expander itself experience higher concentrated power densities and must remain immaculate.
• Account for Clipping: Always ensure your physical lens diameters are at least 1.5 to 2 times larger than your calculated beam diameter to prevent diffraction rings and power loss caused by edge clipping.
