Laser Beam Divergence Calculator

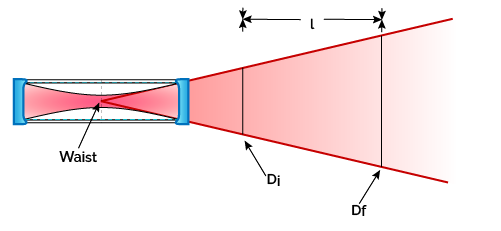

Laser divergence measures the angular spread of a beam from its narrowest point, known as the beam waist. Depending on your available data, beam divergence (diver) can be computed using two primary methods. First, using geometric propagation over a distance (l) between an initial diameter (Di) and a final diameter (Df): diver = 2 * atan((Df - Di) / (2 * l)). Second, using fundamental wave optics and the beam quality factor (M²), wavelength (lambda1), and beam waist radius (waist): diver2 = 2 * M² * lambda1 / (pi * waist). These formulas ensure both experimental measurements and theoretical designs align perfectly.

Imagine you have a laser pointer with an initial beam diameter (Di) of 1 mm (0.001 m). You project this beam against a wall located 10 meters away (l = 10 m), and you measure the resulting spot diameter (Df) to be 5 mm (0.005 m). To find the beam divergence, we apply the geometric formula: diver = 2 * atan((0.005 - 0.001) / (2 * 10)). First, subtract the initial diameter from the final diameter: 0.005 - 0.001 = 0.004 meters. Divide this by twice the distance: 0.004 / 20 = 0.0002. Taking the arctangent and multiplying by 2 yields a beam divergence of approximately 0.0004 radians or 0.4 milliradians.

Always ensure your units are consistent before plugging numbers into the calculator; mixing millimeters and meters is the most common source of calculation errors. When measuring beam diameters experimentally, use the 1/e² intensity definition rather than visual edges to maintain high precision. Keep in mind that high M² values indicate a multi-mode laser that diverges faster than a diffraction-limited single-mode laser.
