Inclined Plane Calculator
Created by Kaushik RabadiyaLast updated: September 24, 2026Inclined plane instantly calculates results using acceleration ball, acceleration block, acceleration cylinder. Use the calculator above for instant answers in your browser.
Welcome to the Inclined Plane Calculator, an essential physics tool designed for students, engineers, and educators. This calculator allows you to instantly determine critical values such as gravitational force components, acceleration rates, final velocities, and travel times for both sliding blocks and various rolling objects like spheres and cylinders.
How the Inclined Plane Equations Work

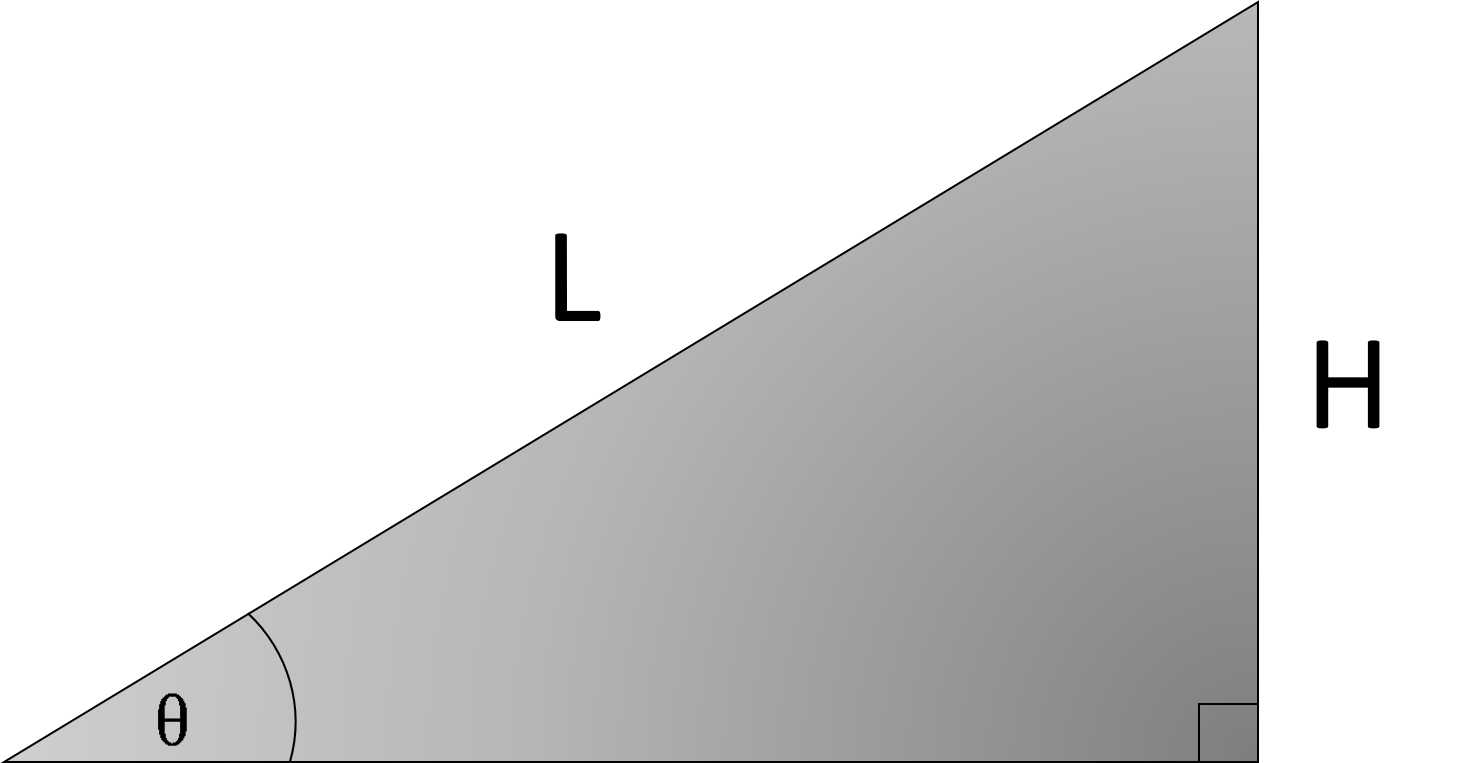

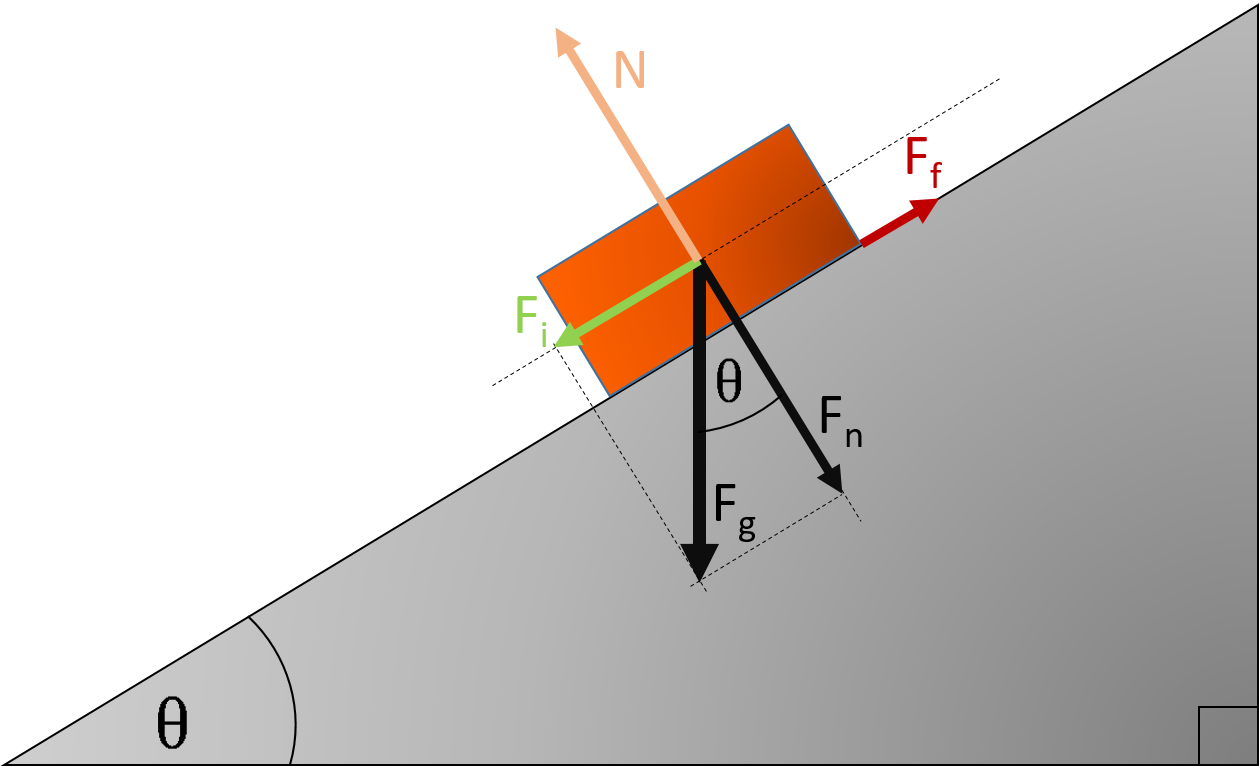

An inclined plane operates by breaking the force of gravity into two vector components relative to the ramp's angle (theta): a parallel component that drives motion along the slope, and a perpendicular component that presses the object against the surface. For sliding objects, the net acceleration accounts for both the parallel gravitational force and kinetic friction. The acceleration formula is derived from Newton's second law: a = (g * sin(theta) - mu * g * cos(theta)), where mu represents the friction coefficient. For rolling objects (such as solid spheres, hollow cylinders, and solid cylinders), rotational inertia must also be factored into the equation. Because rotational kinetic energy absorbs a portion of the potential energy, rolling objects accelerate more slowly down a ramp than frictionless sliding objects, with their specific acceleration dictated by their mass moment of inertia factor.
Worked Calculation Example

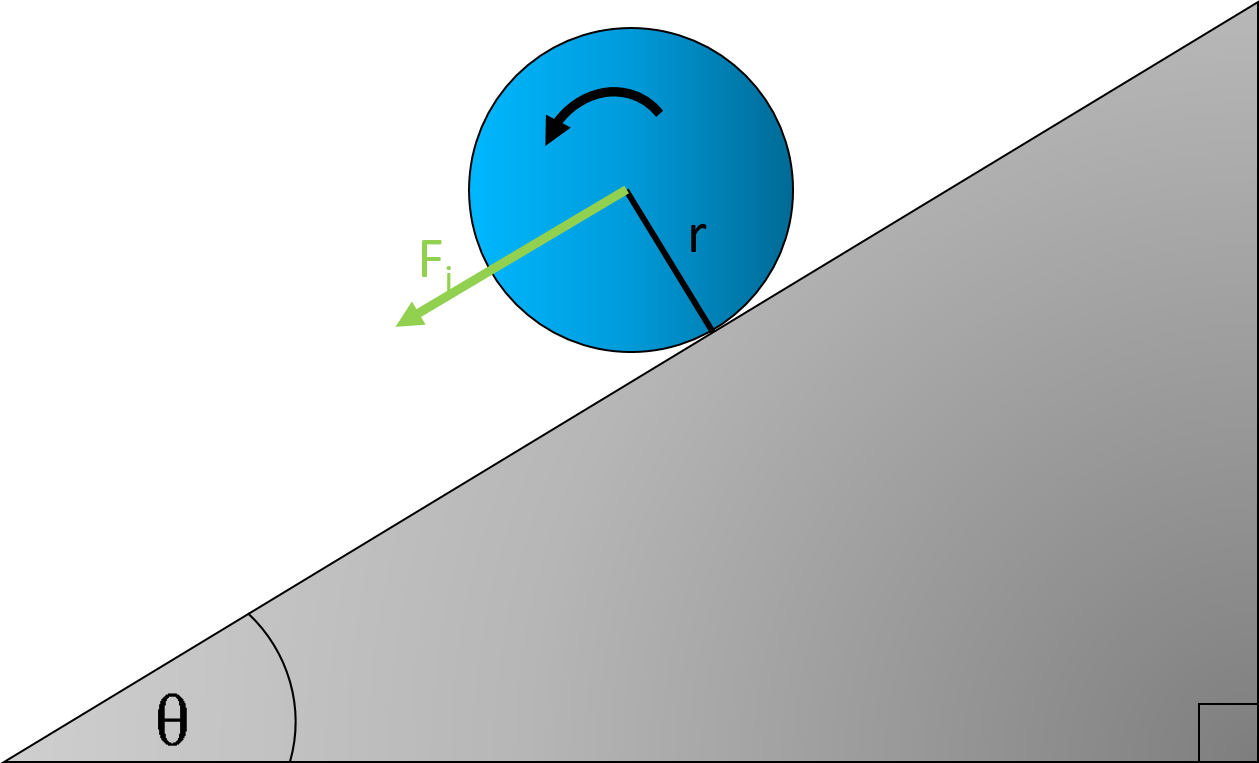

Consider a solid steel sphere with a mass of 2 kg rolling down an inclined plane that is 3 meters high at an angle of 30 degrees, starting from rest. First, we find the length of the ramp using trigonometry: length = height / sin(theta) = 3 / sin(30 degrees) = 6 meters. Next, we calculate the gravitational force driving the rotation: force = mass * gravity * sin(theta) = 2 kg * 9.81 m/s^2 * 0.5 = 9.81 N. For a solid sphere, the effective mass scaling factor incorporates rotational inertia, giving an acceleration formula of a = force / (mass * (7/5)). This yields an acceleration of 9.81 / (2 * 1.4) = 3.5 m/s^2. Finally, using the kinematic equation for final velocity with zero initial velocity, we find velocity = sqrt(2 * length * acceleration) = sqrt(2 * 6 * 3.5) = sqrt(42) = 6.48 m/s at the bottom of the ramp.
Practical Tips and Best Practices
When analyzing inclined planes, always double-check your angle units to ensure your calculator is set to degrees or radians consistently. Remember that kinetic friction only applies to sliding objects; rolling objects assume pure rolling motion without slipping, meaning friction is what initiates the rotation rather than slowing it down in standard ideal models. When comparing different shapes like hoops versus solid spheres, keep in mind that mass distribution matters more than total mass, as objects with mass concentrated further from the axis of rotation will always experience lower acceleration.
FAQs
How does an inclined plane make work easier?
An inclined plane reduces the required input force needed to raise a heavy object to a specific height by spreading the work over a longer distance. While the total amount of energy required to lift the mass remains constant due to the conservation of energy, the reduced force makes the task manageable for human effort or mechanical systems.
Why does acceleration increase as ramp angle increases?
As the angle of the incline increases, the steepness causes the parallel component of gravitational force to grow larger while the perpendicular normal force decreases. Because a larger portion of gravity acts directly along the direction of motion down the slope, the resulting acceleration increases correspondingly.
How do I find the velocity at the bottom of a ramp?
You can find the final velocity using kinematic equations if you know the object's acceleration and the length of the ramp. Alternatively, you can use energy conservation principles, equating the initial gravitational potential energy at the top to the sum of translational and rotational kinetic energy at the bottom.
What is the difference between a sliding block and a rolling cylinder?
A sliding block moves linearly across a surface and is primarily affected by sliding friction. A rolling cylinder or sphere rotates as it moves, meaning a portion of its potential energy goes into rotational kinetic energy rather than linear speed. Consequently, rolling objects accelerate slower than sliding objects on a frictionless incline.
Formula verified against NIST Reference Data — all calculations use deterministic, standards-based formulas.
