Impact Test Calculator

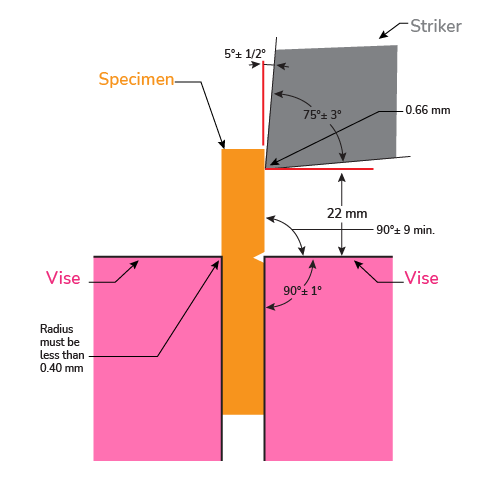

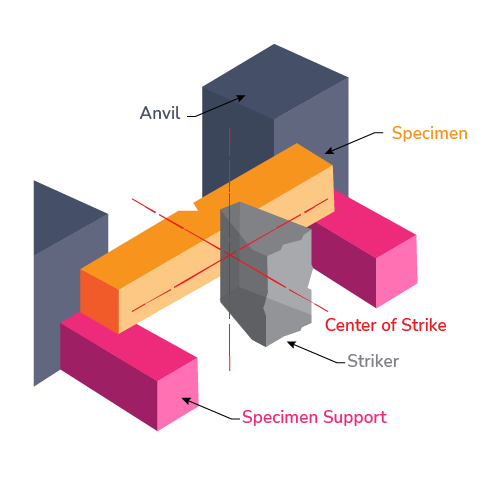

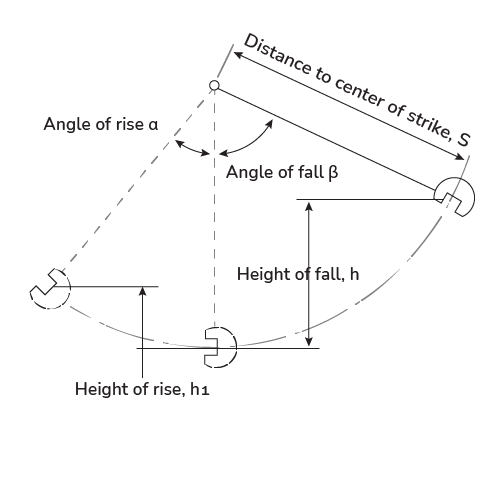

Standard impact testing machines, like Charpy and Izod setups, rely on the conservation of mechanical energy. A heavy striker is released from a specific initial rise angle (A), swings down to strike the material specimen, and follows through to a maximum fall angle (B). The initial potential energy is determined by the mass of the striker, gravitational acceleration, and the effective radius of the pendulum arm. The net impact energy delivered to the sample accounts for frictional and mechanical energy losses:

energy = mass * g * radius * (cos(A_rise) - cos(B_fall)) - energy_loss

Furthermore, the height of the pendulum at any given angle is calculated using the radius and the cosine of that angle: height = radius * (1 - cos(angle)). Finally, the impact velocity of the striker right at the point of contact is derived from free-fall kinematics relative to the drop height: velocity = sqrt(2 * g * height).

Consider a standard laboratory pendulum impact test with the following parameters: Striker mass = 22 kg, pendulum arm radius = 1.5 meters, gravitational acceleration (g) = 9.81 m/s², initial rise angle = 60 degrees, maximum post-impact fall angle = 30 degrees, and estimated mechanical energy loss due to friction = 2.5 Joules. First, we compute the initial height rise: height_rise = 1.5 * (1 - cos(60°)) = 1.5 * (1 - 0.5) = 0.75 m. Next, we find the velocity of the striker at impact: velocity = sqrt(2 * 9.81 * 0.75) = sqrt(14.715) = 3.84 m/s. Finally, calculating the total energy delivered to fracture the material: energy = 22 * 9.81 * 1.5 * (cos(60°) - cos(30°)) - 2.5. Since cos(60°) = 0.5 and cos(30°) = 0.866, the energy absorbed equals 323.73 * (0.5 - 0.866) - 2.5, yielding the final absorbed impact energy.

Always verify the units of your input variables before running computations; angles should be converted correctly if your tool expects radians versus degrees. Account for ambient friction and windage losses, as ignoring these systematic errors can artificially inflate the recorded fracture toughness of brittle materials. Ensure that the pendulum arm radius matches the exact distance from the axis of rotation to the center of percussion of the striker hammer for maximum accuracy.
