Hydraulic Pressure Calculator

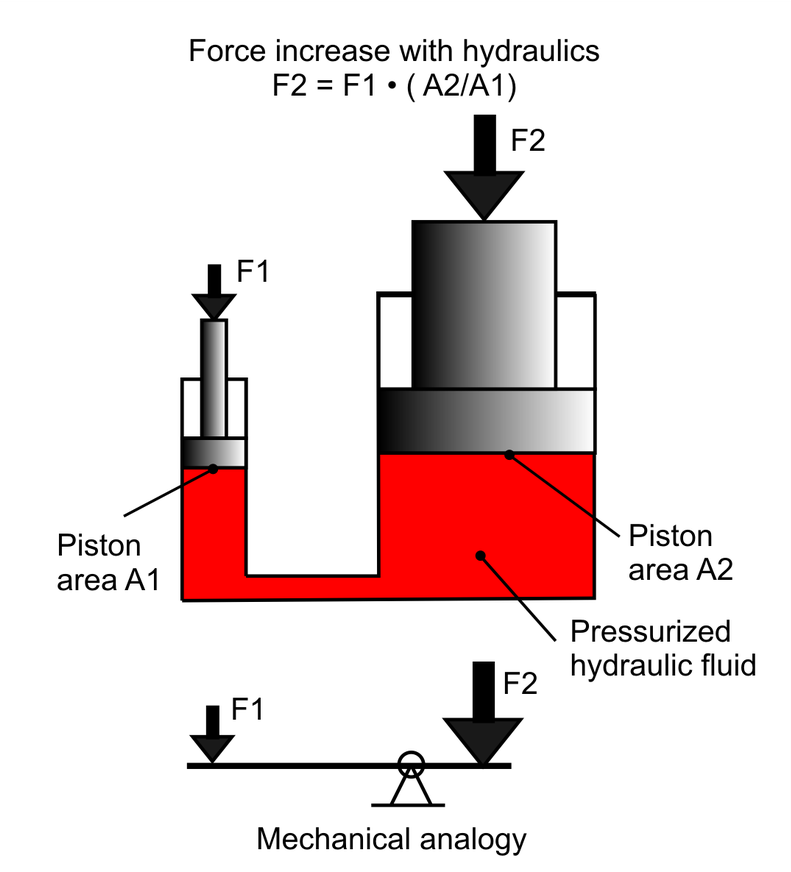

This calculator relies on fundamental fluid mechanics principles, primarily Pascal's Principle, which states that pressure applied to an enclosed fluid is transmitted undiminished to every part of the fluid. The core relationship governing hydraulic systems is expressed as Total Pressure (P) equals Force (F) divided by Area (A), written mathematically as P = F / A. Furthermore, because energy is conserved within an ideal hydraulic machine, the work done at the input piston equals the work done at the output piston, calculated as Work equals Force multiplied by distance (W = F * d).

Imagine you are designing a hydraulic lift and need to determine the system pressure and resulting output. Suppose your first force (input force) is 500 Newtons, applied over a first area of 0.05 square meters. First, calculate the total pressure by dividing the force by the area: P = 500 N / 0.05 m² = 10,000 Pascals (or 10 kPa). If this pressure transfers to a second area of 0.20 square meters, the second force generated will be Pressure multiplied by the second area (10,000 Pa * 0.20 m²), yielding an impressive output force of 2,000 Newtons. If the input piston moves a first distance of 0.4 meters, the work done is 500 N * 0.4 m = 200 Joules.

Always ensure your units are consistent before entering values into the calculator; sticking to standard SI units (Newtons for force, square meters for area, and Pascals for pressure) prevents costly conversion errors. Remember that real-world hydraulic systems experience efficiency losses due to fluid friction and seal resistance, so factor in a safety margin for mechanical designs. Finally, double-check whether your specific problem provides piston diameters or direct surface areas, converting circular radii to area using the standard circle formula (A = πr²) when necessary.
