High Pass Filter Calculator

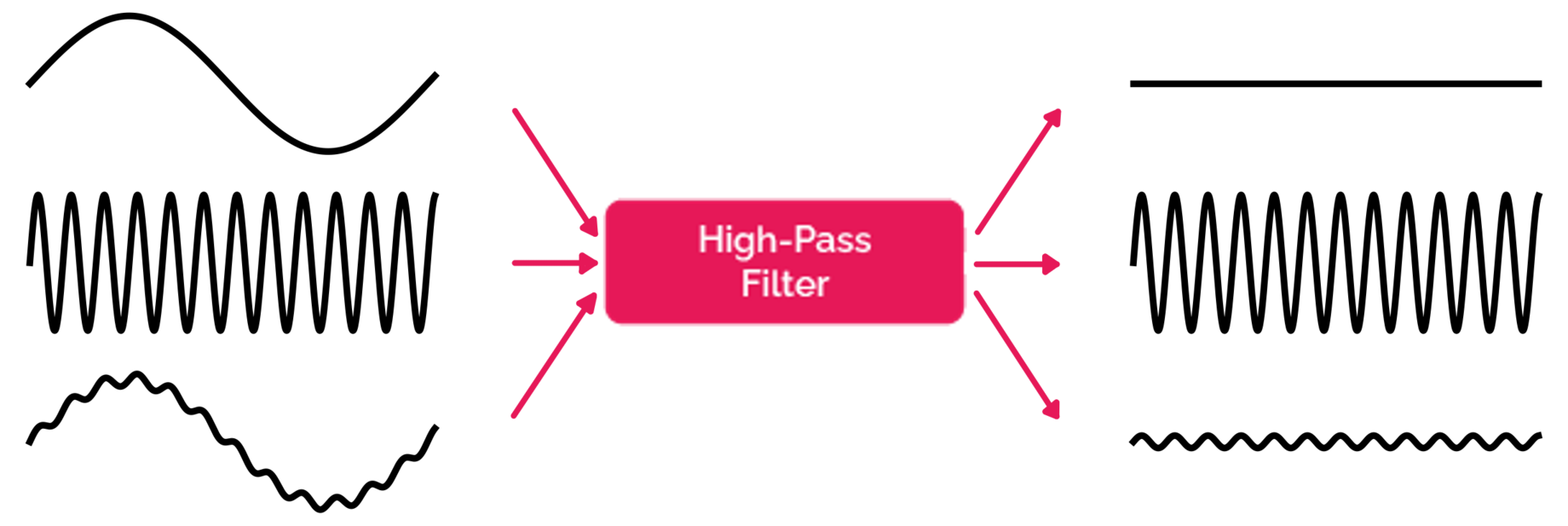

A high-pass filter attenuates signals with frequencies lower than a chosen threshold—known as the cutoff frequency (f_c)—while letting higher frequencies pass through. The underlying mathematics depends entirely on the circuit architecture you choose. For a passive RC (resistor-capacitor) filter, the cutoff frequency is calculated using the formula: f_c = 1 / (2 * π * R * C), where R is resistance in ohms and C is capacitance in farads. For an RL (resistor-inductor) configuration, the cutoff frequency relies on inductance instead: f_c = R / (2 * π * L). Active filters incorporating operational amplifiers also integrate feedback and input resistances to determine both the critical cutoff frequency and the signal gain.

Imagine you are designing a passive RC high-pass filter for an audio crossover network and need a cutoff frequency of approximately 1 kHz. You select a standard capacitor value of 0.1 µF (0.0000001 F) and want to find out what resistor value you need. Using the rearranged RC frequency formula, R = 1 / (2 * π * f_c * C), we plug in our numbers: R = 1 / (2 * 3.14159 * 1000 * 0.0000001). This multiplies out to 1 / 0.000628318, resulting in a required resistance of approximately 1,591 ohms, or about 1.6 kΩ. This ensures any frequencies significantly below 1 kHz will be successfully blocked by the circuit.

When selecting components for your high-pass filter, always account for component tolerance; standard resistors and capacitors often have a 5% to 10% variance that can shift your actual cutoff frequency. Additionally, pay close attention to impedance matching when connecting filters in a multi-stage circuit, as the load impedance of a subsequent stage can inadvertently alter your filter's frequency response. Finally, ensure your operational amplifiers are rated for the frequency range and slew rate of your specific application to avoid signal distortion.
