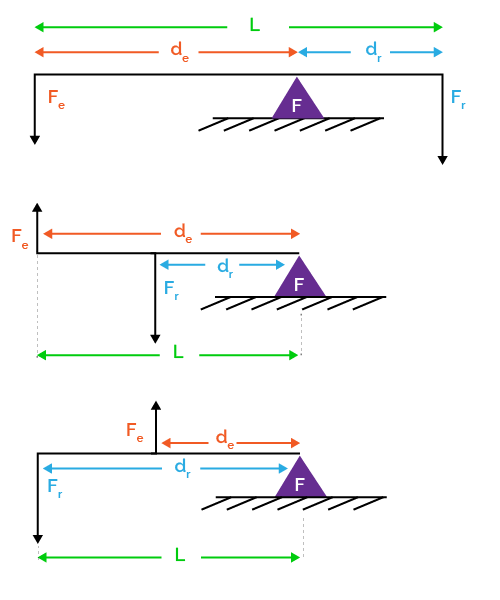

Levers are categorized into three distinct classes based on the relative positions of the fulcrum, effort force (Fe), and resistance force (Fr). The mechanical advantage (MA) of any system is calculated as the ratio of the resistance force to the effort force, expressed mathematically as MA = Fr / Fe. Depending on the lever class, the total length (L) is split into the effort arm (De) and the resistance arm (Dr). For a Class 1 lever where the fulcrum lies between the effort and resistance, the resistance arm is determined by Dr = L / (MA + 1), and the effort arm is found by subtracting the resistance arm from the total length: De = L - Dr.

Imagine you are using a Class 1 lever with a total length of 2 meters (L1 = 2m). You apply an effort force (Fe1) of 50 Newtons to lift a heavy resistance force (Fr1) of 150 Newtons. First, calculate the mechanical advantage: MA = 150 / 50 = 3. Next, determine the length of the resistance arm: Dr1 = 2 / (3 + 1) = 2 / 4 = 0.5 meters. Finally, calculate the effort arm by finding the remaining length: De1 = 2 - 0.5 = 1.5 meters. Thus, placing the fulcrum 0.5 meters away from the load provides the desired mechanical advantage.

Always double-check your unit consistency; ensure all forces are in Newtons and all lengths are in meters before running calculations. Pay close attention to the lever class type, as swapping the positions of the fulcrum and load completely changes the underlying equations for arm length. Use a high-quality calculator to avoid rounding errors when dividing fractional forces.
