Fresnel Zone Calculator

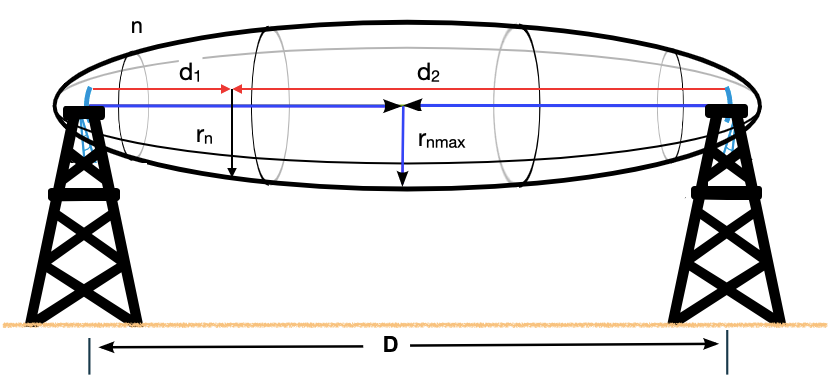

Radio waves do not travel in a razor-thin laser beam; instead, they propagate outward in expanding concentric ellipsoids known as Fresnel zones. The primary boundary of concern is the first Fresnel zone ($F_1$). The radius of any given Fresnel zone ($R_n$) at a specific point along the path is calculated using the distance from the transmitter to the obstacle ($d_1$), the distance from the obstacle to the receiver ($d_2$), and the signal frequency ($f$). The standard formula used is $R_n = 17.32 \times \sqrt{\frac{n \cdot d_1 \cdot d_2}{f \cdot (d_1 + d_2)}}$, where $d_1$ and $d_2$ are measured in kilometers, frequency $f$ is in gigahertz (GHz), and the resulting radius is in meters.

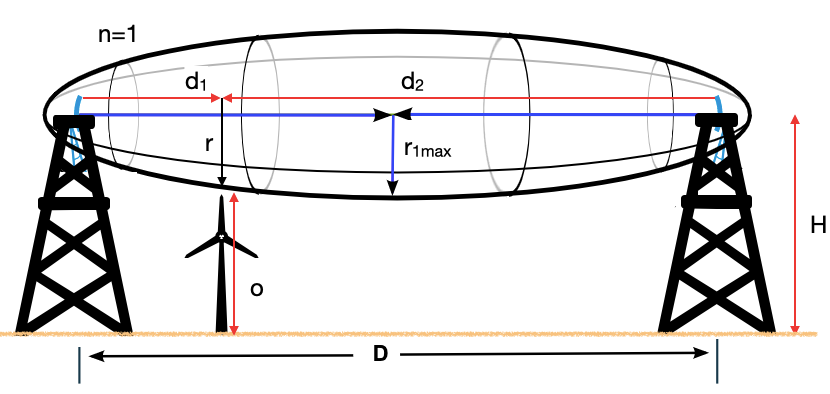

Imagine setting up a point-to-point wireless bridge across a total distance ($D$) of 10 kilometers ($d_1 = 5\text{ km}$ and $d_2 = 5\text{ km}$) operating at a frequency of $5.8\text{ GHz}$. To find the radius of the first Fresnel zone ($n = 1$) at the midpoint of the link, we substitute these values into the formula: $R_1 = 17.32 \times \sqrt{\frac{1 \times 5 \times 5}{5.8 \times (5 + 5)}}$. This simplifies to $17.32 \times \sqrt{\frac{25}{58}}$, which evaluates to approximately $17.32 \times 0.657 = 11.38$ meters. To maintain optimal signal integrity and prevent diffraction losses, engineering best practices dictate that at least 60% of this first Fresnel zone must remain completely unobstructed, requiring a minimum clearance radius of about 6.83 meters around the direct line-of-sight path.

Always account for Earth's curvature when planning long-distance wireless links, as the horizon can bulge into your lower Fresnel zones even if the direct line of sight appears clear. Remember that seasonal changes, such as tree foliage growth, can dynamically obstruct higher-order Fresnel zones and degrade signal margins over time. Finally, always verify local regulatory frequency bands and use directional antennas with high front-to-back ratios to minimize local interference.
