Exhaust Diameter Calculator

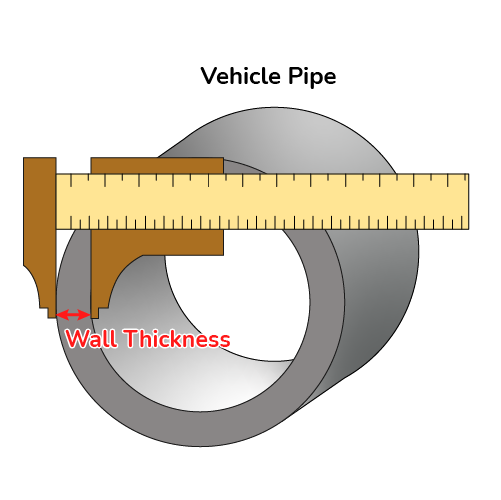

Engine exhaust dynamics rely on balancing velocity and backpressure. If an exhaust pipe is too small, it creates choking backpressure that restricts high-RPM breathing. If it is too large, exhaust gas velocity drops, harming low-end scavenging and torque generation. The primary formula used for pipe sizing is derived from engine airflow requirements: exhaust_diameter = sqrt((rpm * pi * cylinder_size) / 88200). Additionally, when dealing with physical piping, the inner diameter is calculated using wall thickness: exhaust_diameter = outside_diameter - (2 * wall_thickness), while individual cylinder volume is found via cylinder_size = total_volume / number_cylinder.

Let us calculate the ideal exhaust pipe size for a 4-cylinder engine with a total displacement of 2.0 liters (2000 cc) and a peak torque RPM of 6,000. First, find the volume of a single cylinder: cylinder_size = 2000 / 4 = 500 cc. Next, apply the primary exhaust sizing equation: exhaust_diameter = sqrt((6000 * 3.14159 * 500) / 88200). This simplifies to sqrt(9,424,770 / 88200), which equals sqrt(106.86), yielding an optimal inner diameter of approximately 10.33 cm or roughly 2.5 inches. This ensures proper scavenging velocity without introducing restrictive bottlenecks at high revolutions.

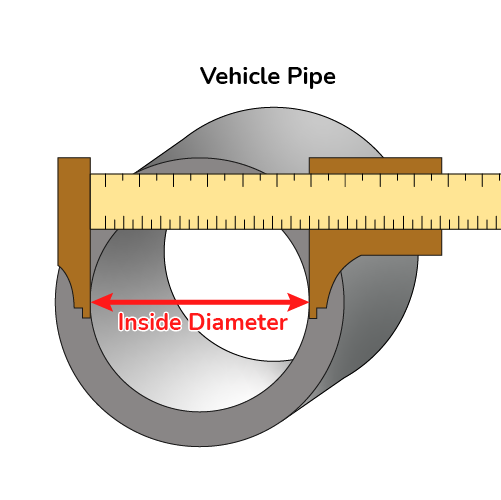

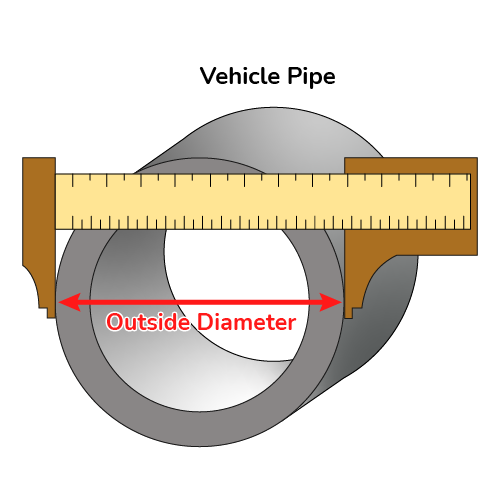

When selecting your exhaust tubing, always account for the difference between Outer Diameter (OD) and Inner Diameter (ID), especially when working with thick-walled stainless steel pipes. Keep bends gradual and maintain a consistent internal diameter across joints to prevent turbulence. Finally, remember that peak torque RPM is generally a safer metric for sizing street exhaust than redline RPM, as it preserves low-end driveability.
