Engine Displacement Calculator

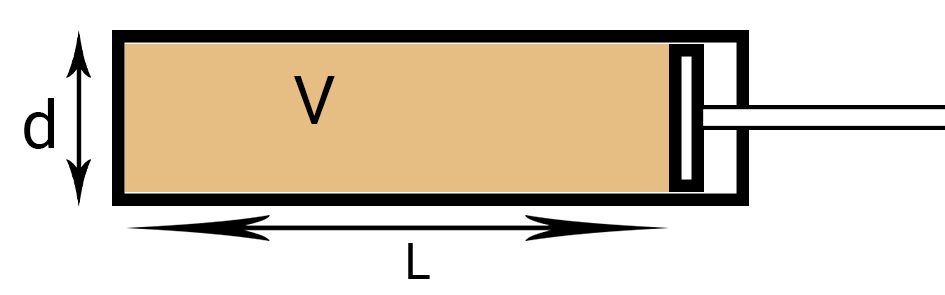

Engine displacement represents the combined volume of all cylinders within an engine block. To find the volume of a single cylinder, we treat it as a cylinder-shaped geometric volume using the formula for the area of a circle multiplied by the stroke length (the distance the piston travels). The mathematical equation used by this calculator is: Displacement = (π / 4) × Bore² × Stroke × Number of Cylinders. Here, the bore is the diameter of the cylinder, the stroke is the depth of piston travel, and π (pi) is approximately 3.14159. Multiplying the single-cylinder volume by the total cylinder count gives the aggregate displacement.

Imagine you are analyzing a classic four-cylinder engine with a bore diameter of 85 millimeters (0.85 decimeters or 8.5 cm) and a stroke length of 88 millimeters (8.8 cm). First, calculate the cross-sectional area of one cylinder using the radius or diameter: (3.14159 / 4) × 8.5² = 56.74 square centimeters. Next, multiply this area by the stroke length to find the volume of one cylinder: 56.74 cm² × 8.8 cm = 499.35 cubic centimeters (cc). Finally, multiply by the number of cylinders (4) to find the total engine displacement: 499.35 cc × 4 = 1,997.4 cc, which translates to a standard 2.0-liter engine classification.

When measuring engine components, always ensure your units are consistent—mixing millimeters and inches will yield incorrect results. If you are working with aftermarket overbores, remember to input the newly bored diameter rather than the stock factory specification. Additionally, keep in mind that calculated displacement is a geometric approximation; actual running compression and exact volumetric efficiencies can vary slightly based on gasket thickness and dome/dish piston designs.
