Elongation Calculator

Elongation describes the physical deformation or stretching of a solid object when subjected to tensile stress. The fundamental calculations rely on the initial dimensions and either the final dimensions or the absolute change in length. The core equations used are:

Length Change (ΔL) = Final Length (L_f) - Original Length (L₀)

Elongation (ε) = (Final Length (L_f) - Original Length (L₀)) / Original Length (L₀)

To express elongation as a percentage representing engineering strain, simply multiply the resulting fraction by 100.

Imagine you are testing a steel wire in a laboratory setting. The wire has an original length (L₀) of 200 mm before any tension is applied. Once a pulling force is introduced, the wire stretches until it reaches a final length (L_f) of 210 mm.

First, calculate the absolute change in length: ΔL = 210 mm - 200 mm = 10 mm.

Next, apply the elongation formula: ε = (210 - 200) / 200 = 10 / 200 = 0.05.

Expressed as a percentage, the material experienced a 5% elongation under the applied tensile load.

Maintain Consistent Units: Always convert your measurements into the same unit (such as millimeters or inches) before inputting them into the formulas to prevent calculation errors.

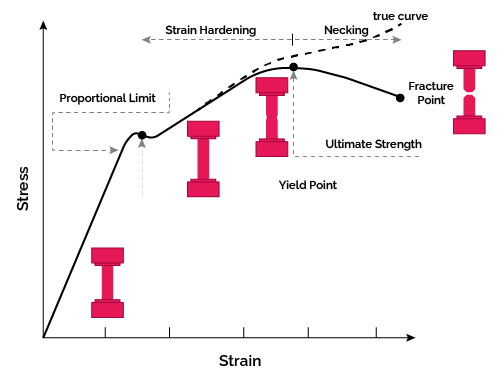

Understand Elastic vs. Plastic Deformation: Keep in mind that temporary stretching returns to normal once stress is removed, whereas permanent deformation alters the original baseline dimensions permanently.
