Electric Motor Torque Calculator

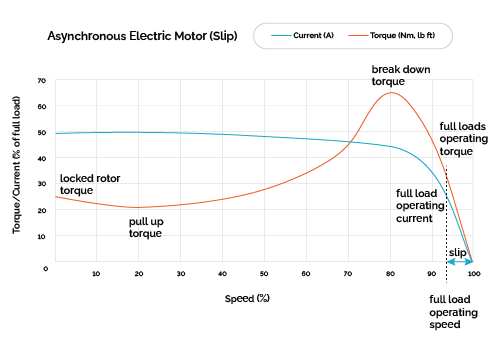

The calculation relies on fundamental electromechanical relationships governing alternating current (AC) motors. First, synchronous speed or no-load RPM is determined using the supply frequency (f) and the number of magnetic poles (P): RPM(noload) = (120 × frequency) / poles. Next, motor slip accounts for the difference between the theoretical synchronous speed and the actual loaded speed: Slip = (RPM(noload) - RPM(load)) / RPM(noload). Finally, mechanical torque (T) is derived from power (P) and rotational speed using the equation: Power = (2 × pi × RPM × Torque) / 60, which can be rearranged to solve directly for torque.

Consider an industrial induction motor operating on a 60 Hz electrical grid. The motor has 4 magnetic poles and delivers 1 kW (1000 watts) of mechanical power at a loaded speed of 1725 RPM. First, we calculate the synchronous no-load speed: RPM(noload) = (120 × 60) / 4 = 1800 RPM. Next, we determine the slip percentage under load: Slip = (1800 - 1725) / 1800 = 0.0417, or 4.17 percent. Finally, using the actual loaded speed of 1725 RPM to find the output torque, we rearrange the power formula: Torque = (Power × 60) / (2 × pi × RPM) = (1000 × 60) / (2 × 3.14159 × 1725) = 60,000 / 10,838.48 = 5.54 Newton-meters (Nm) of rotational torque.

Always ensure your frequency and pole inputs accurately reflect your power supply standards (typically 50Hz or 60Hz globally). Keep in mind that torque output fluctuates with temperature and load variations, so using real-world loaded RPM values yields much more accurate results than relying solely on theoretical synchronous calculations. When scaling up motor designs, remember that increasing pole counts will decrease synchronous speed while generally increasing available starting and running torque.
