Delta to Wye Conversion

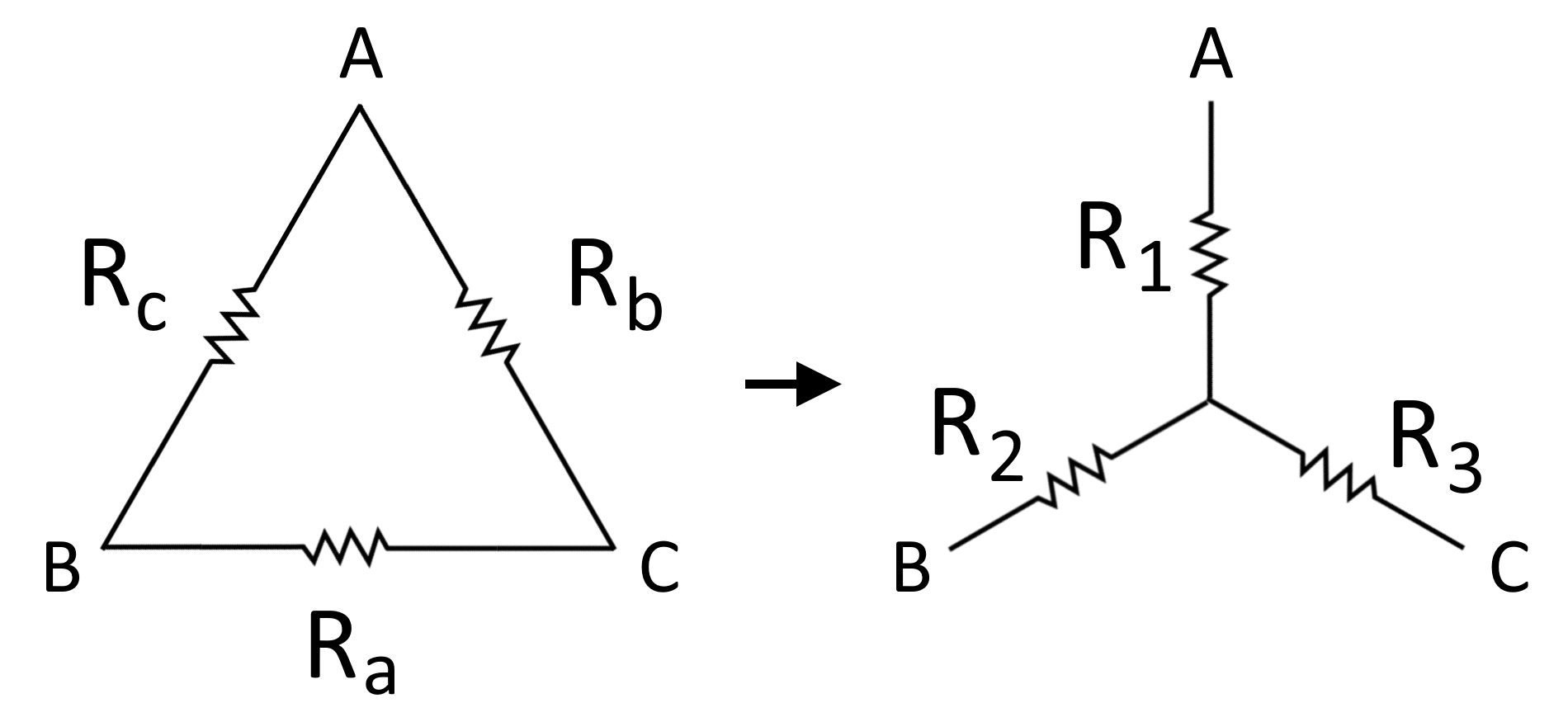

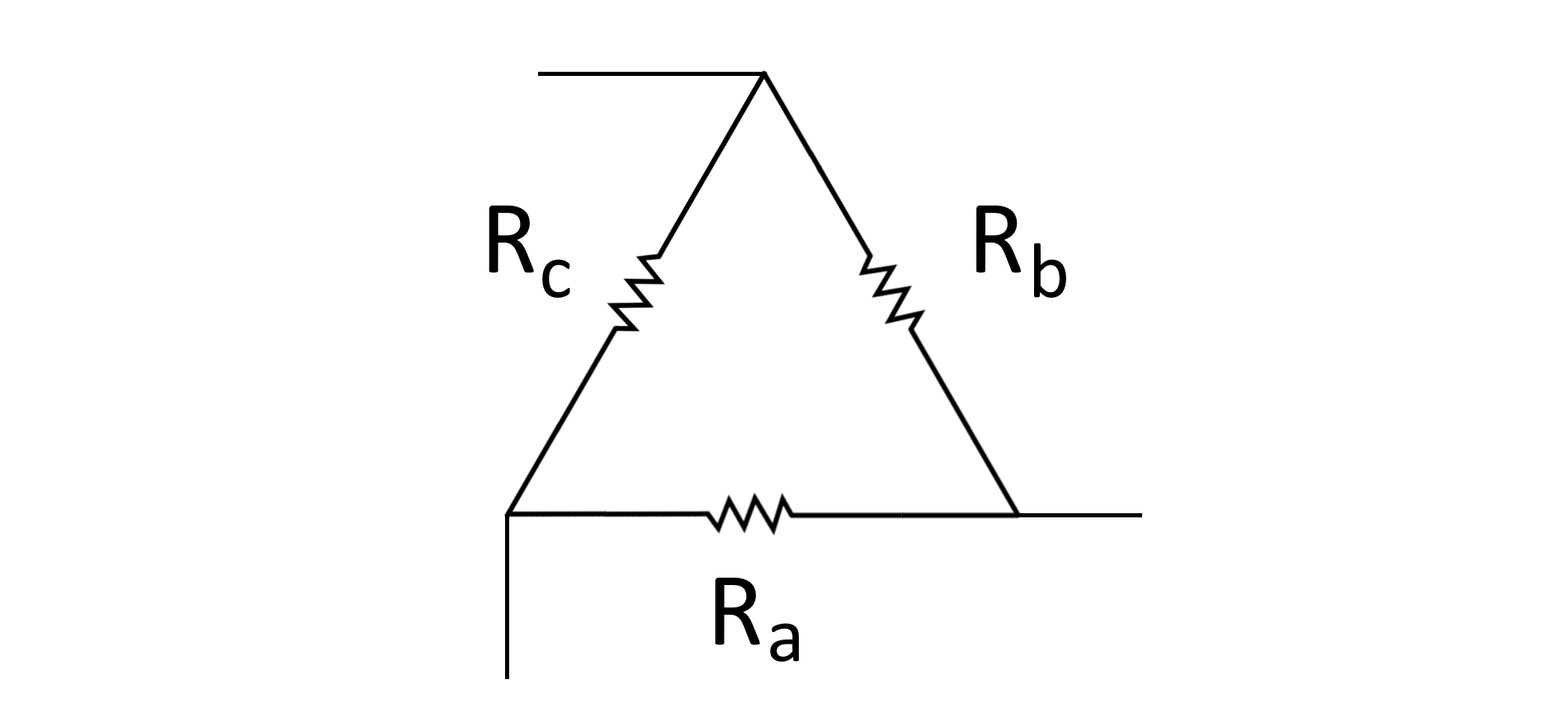

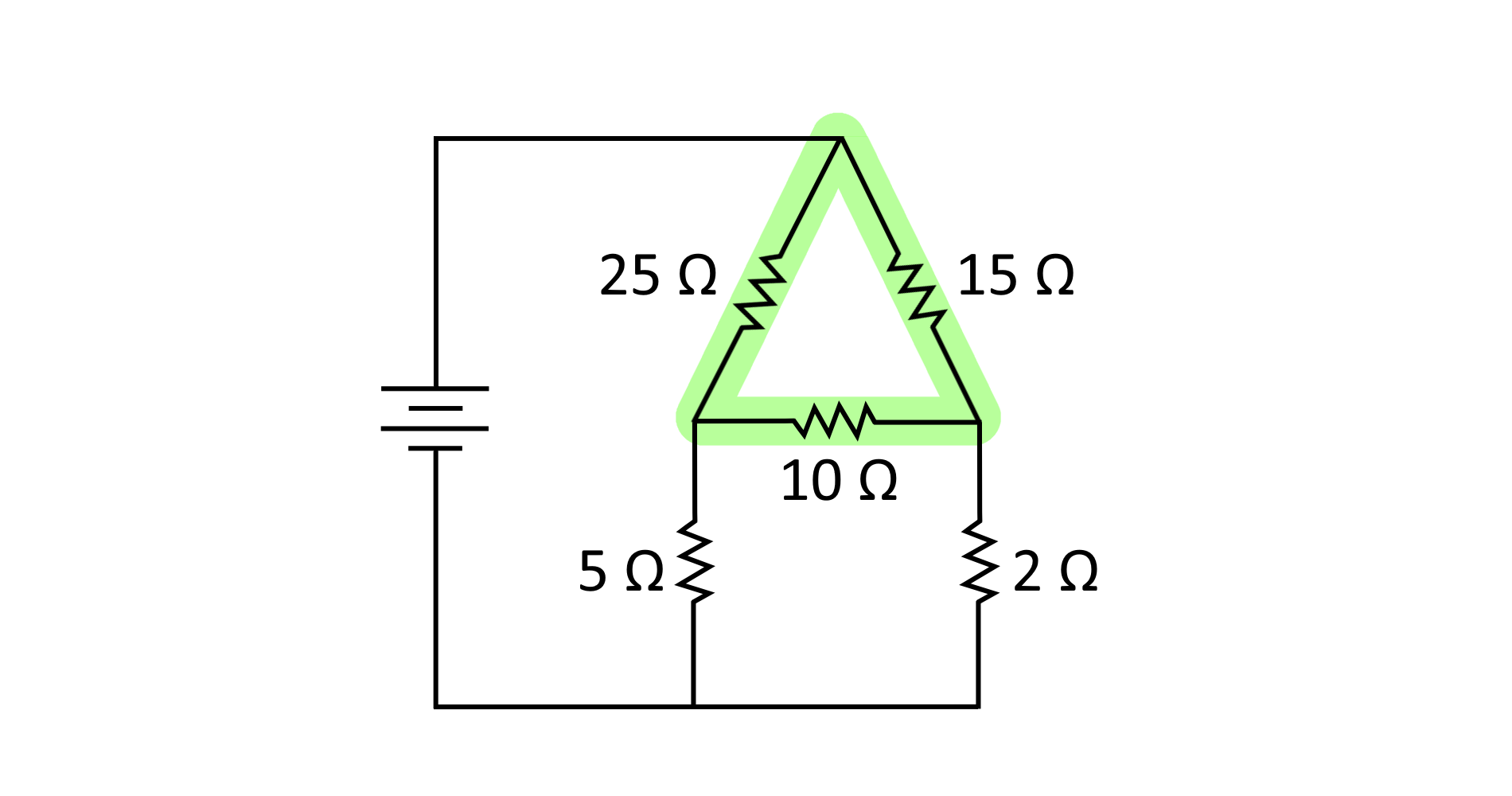

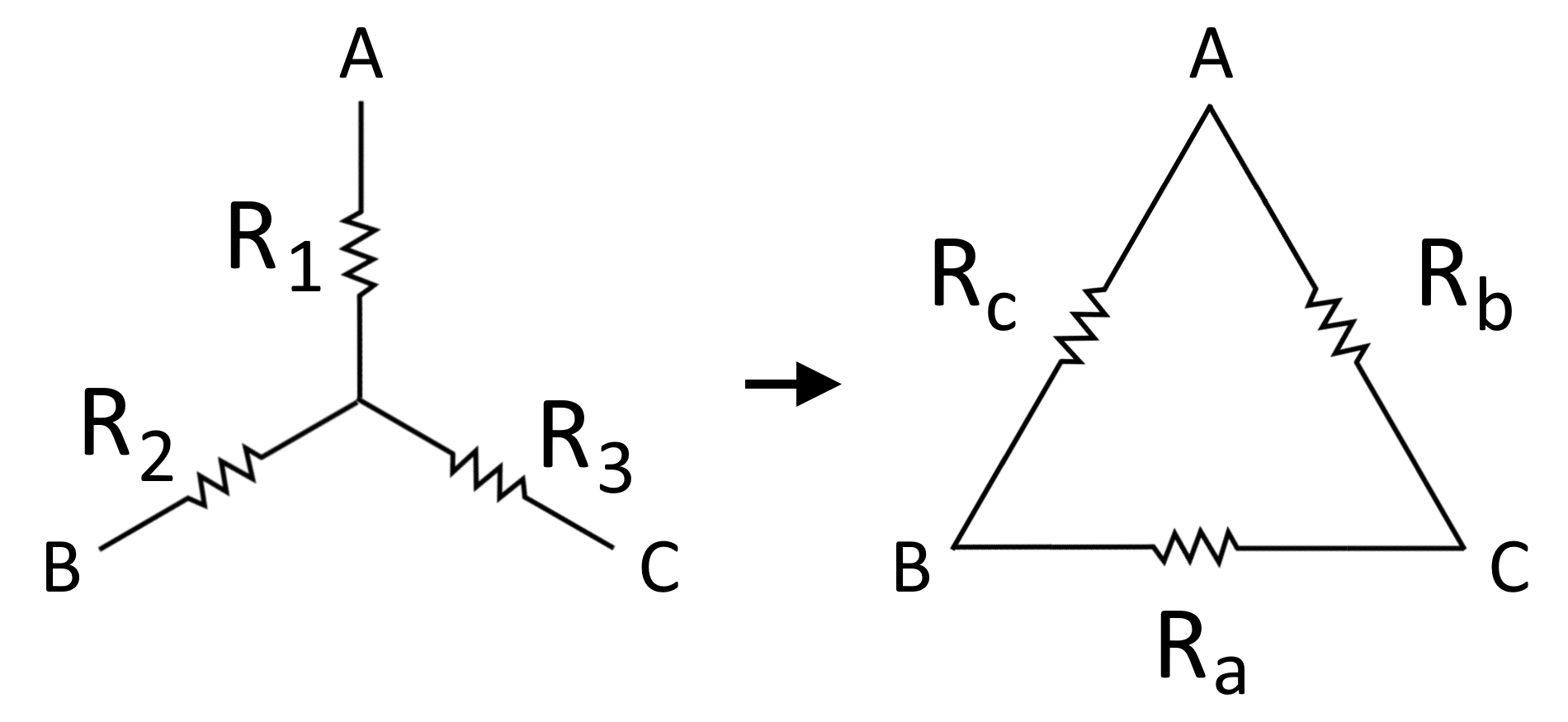

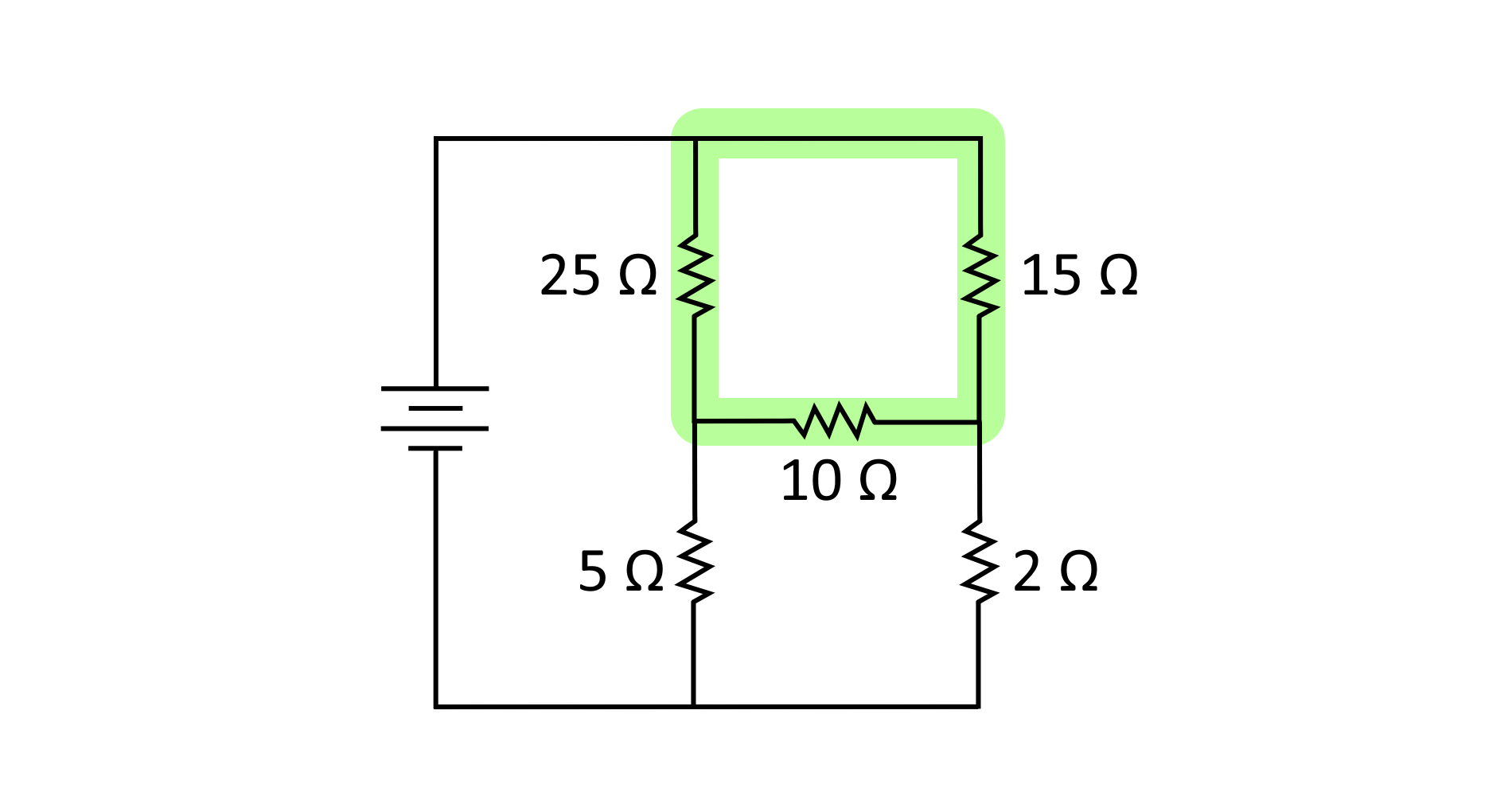

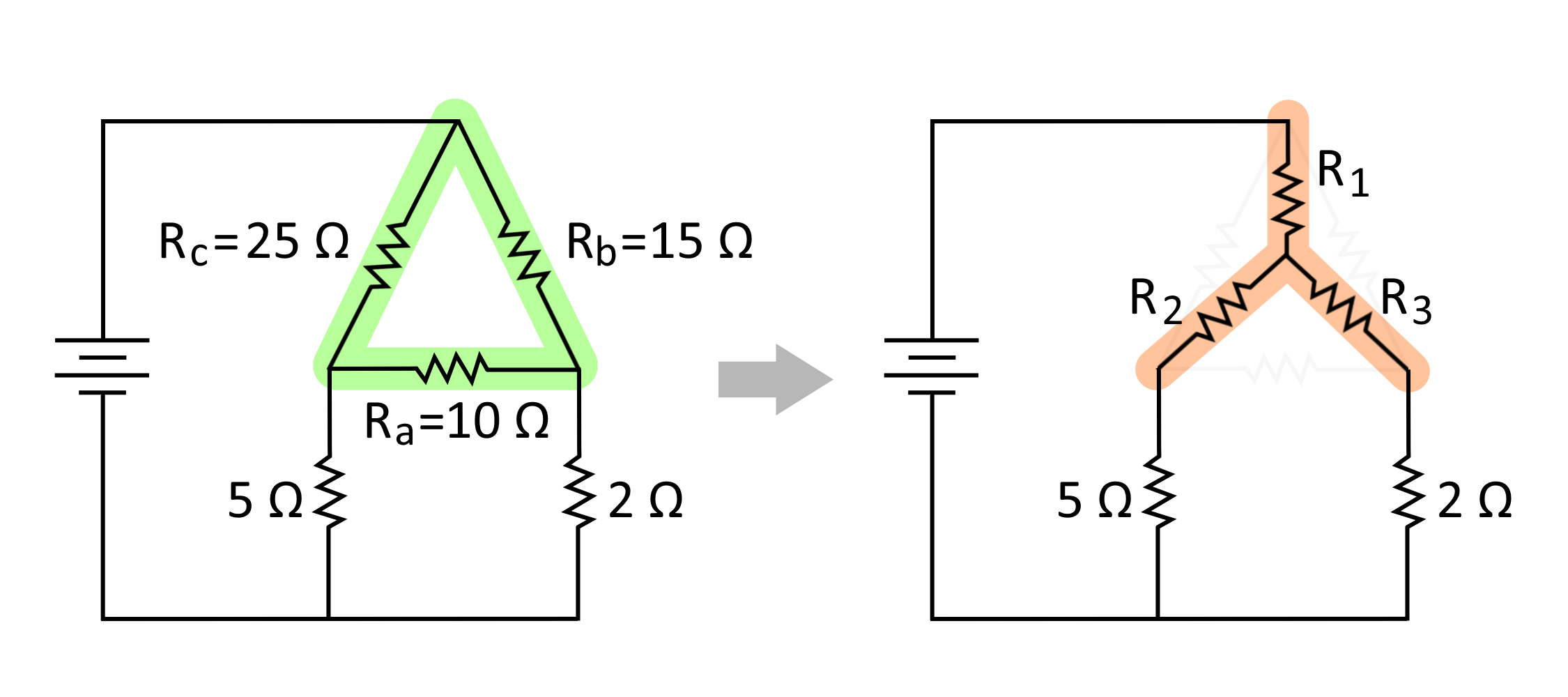

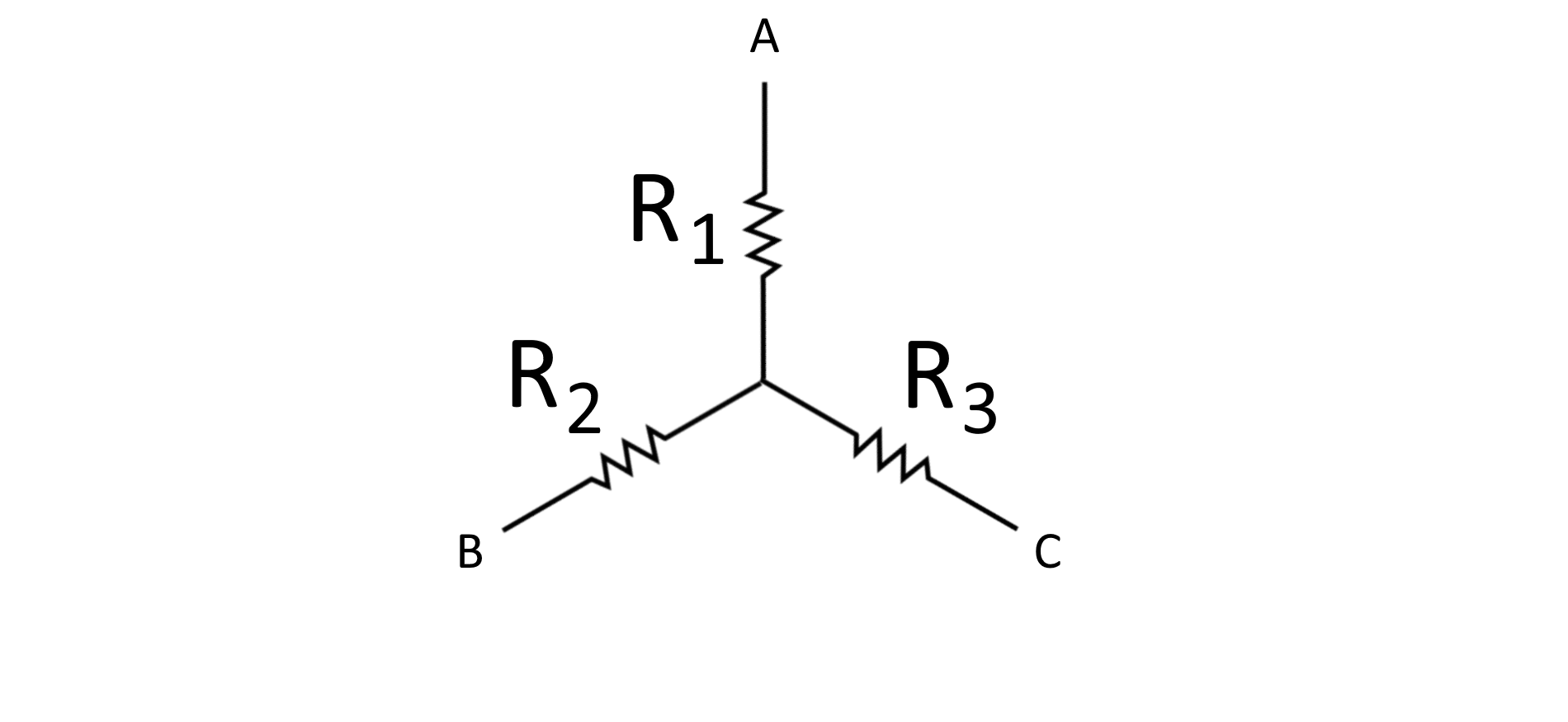

The delta (triangle or $\Delta$) and wye (star or Y) configurations are two common ways three resistors can be interconnected in an electrical circuit. To convert a delta network into a wye network, each wye resistor is calculated by taking the product of the two adjacent delta resistors connected to the same node, divided by the sum of all three delta resistors. Specifically, for wye resistors $R_1$, $R_2$, and $R_3$ connected to delta resistors $R_a$, $R_b$, and $R_c$, the formulas are: $R_1 = (R_b \cdot R_c) / (R_a + R_b + R_c)$, $R_2 = (R_a \cdot R_c) / (R_a + R_b + R_c)$, and $R_3 = (R_a \cdot R_b) / (R_a + R_b + R_c)$. Conversely, wye-to-delta transformations use summation terms involving products of opposing pairs divided by the opposite wye leg.

Imagine you are analyzing a balanced delta circuit where all three resistors are identical: $R_a = 6\,\Omega$, $R_b = 6\,\Omega$, and $R_c = 6\,\Omega$. You want to find the equivalent wye resistance values ($R_1$, $R_2$, $R_3$). First, calculate the denominator, which is the sum of all delta resistors: $6 + 6 + 6 = 18\,\Omega$. Next, apply the formula for $R_1$: multiply the adjacent resistors ($R_b \cdot R_c = 6 \cdot 6 = 36$) and divide by the sum ($36 / 18 = 2\,\Omega$). Because the delta network is completely symmetric, $R_2$ and $R_3$ will also equal $2\,\Omega$. Thus, a symmetrical $6\,\Omega$ delta network transforms into a symmetrical $2\,\Omega$ wye network.

Always verify your node labeling before inputting values into the calculator to avoid transposing adjacent legs. Remember that these transformations apply to both direct current (DC) and alternating current (AC) steady-state resistive networks, though AC circuits containing reactive components (inductors and capacitors) require complex impedances instead of pure resistance values.
