Cutoff Frequency Calculator

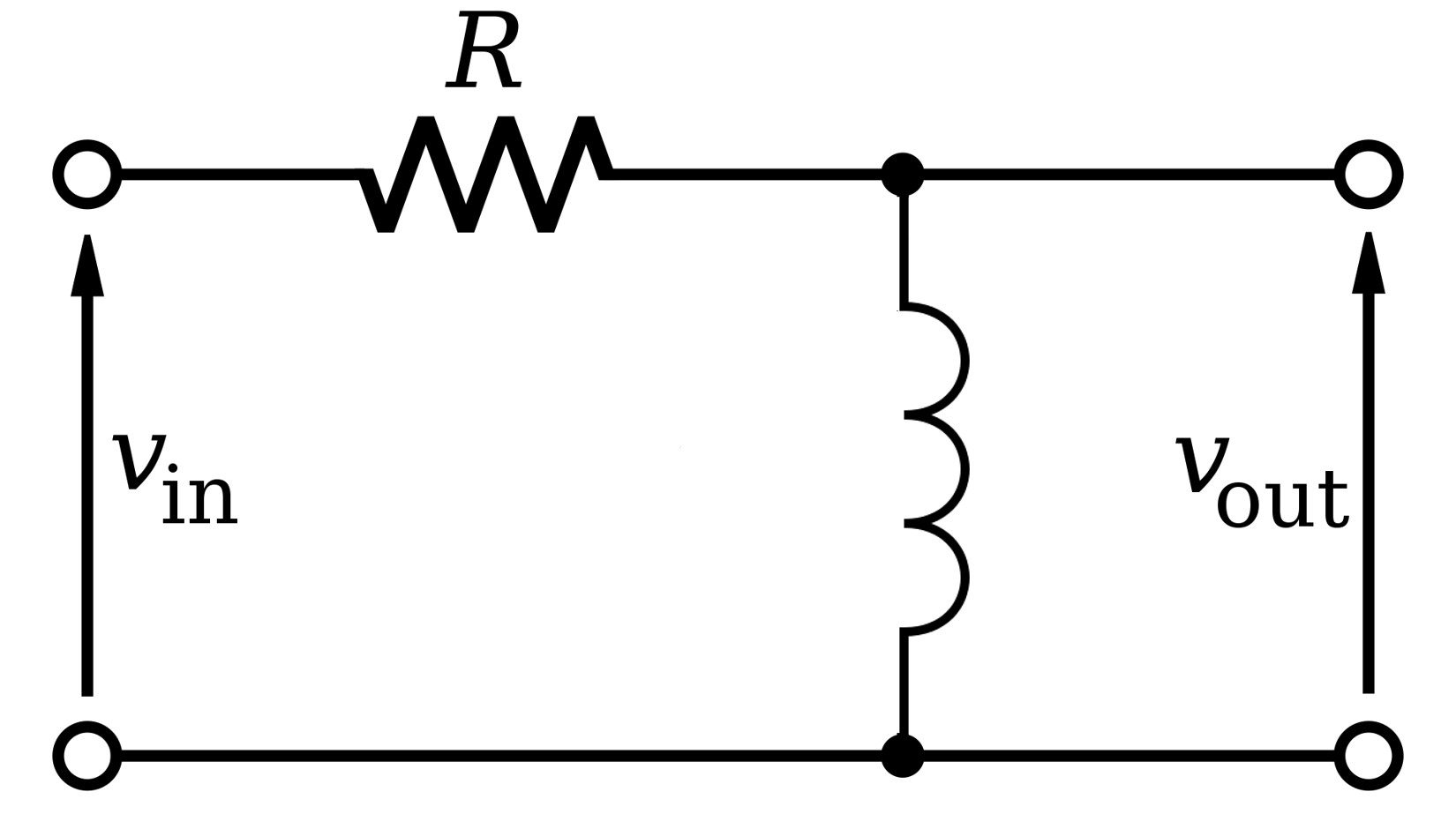

In electronic filters, the cutoff frequency (often denoted as f_c) defines the boundary between the passband and the stopband. For a Resistor-Capacitor (RC) filter, the cutoff frequency depends on the resistance (R) and capacitance (C) values, calculated using the formula: f_c = 1 / (2 * pi * R * C). For a Resistor-Inductor (RL) filter, the cutoff frequency is determined by the resistance (R) and inductance (L), following the equation: f_c = R / (2 * pi * L). In both cases, these mathematical relationships isolate the exact point where reactance equals resistance.

Imagine you are designing an RC low-pass filter for a sensor circuit using a resistor with a resistance of 1,000 ohms (1 kΩ) and a capacitor with a capacitance of 100 nanofarads (100 nF or 100 x 10^-9 F). To find the cutoff frequency, substitute these values into the RC formula: f_c = 1 / (2 * 3.14159 * 1000 * 0.0000001). Multiplying the denominator yields approximately 0.0006283. Dividing 1 by this value results in a cutoff frequency of approximately 1,591.5 Hz, or about 1.59 kHz. At this frequency, signal attenuation reaches the critical -3dB threshold.

When working with cutoff frequency calculations, always account for component tolerances, as standard resistors and capacitors can vary by 5% to 20%. Additionally, remember that high-pass and low-pass configurations use the same fundamental frequency formulas; the distinction lies only in which output terminals you measure across. Finally, verify your units before calculating—always convert nanofarads, microhenries, and kilohms into standard base units of farads, henries, and ohms.
