Crawl Ratio Calculator

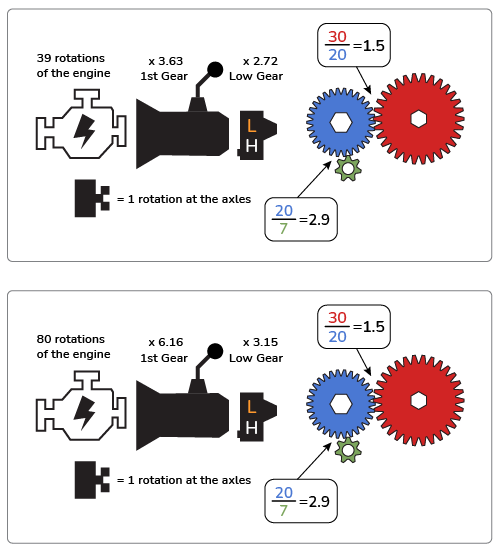

The crawl ratio represents the total mechanical advantage gained from the crankshaft to the tire contact patch. It is determined using two primary formulas. First, the axle gear ratio is calculated by dividing the number of teeth on the ring gear by the number of teeth on the pinion gear: axle_gear_ratio = ring_gear / pinion_teeth. Next, the final crawl ratio multiplies this axle ratio by the transmission's first gear ratio and the transfer case's low-range ratio: crawl_ratio = transmission_ratio * transfer_ratio * axle_gear_ratio.

Imagine you are building a custom off-road rig with the following specifications: a manual transmission first gear ratio of 4.0:1, a transfer case low-range reduction of 2.72:1, and an axle differential featuring a 41-tooth ring gear and a 9-tooth pinion gear. First, compute the axle gear ratio by dividing 41 by 9, which equals approximately 4.56. Next, multiply these components together: 4.0 (transmission) multiplied by 2.72 (transfer case) multiplied by 4.56 (axle gear). The resulting crawl ratio is 49.61:1, meaning for every single rotation of the tires, the engine crankshaft turns nearly 50 times.

When evaluating your vehicle setup, remember that a higher crawl ratio provides exceptional slow-speed control and engine braking on steep descents, but it limits your top speed in low range. Always double-check your ring and pinion tooth counts by physically counting them if aftermarket parts have been installed. Additionally, keep in mind that drastically increasing your crawl ratio places immense stress on drive shafts, axle shafts, and U-joints, so ensure your drivetrain components can handle the multiplied torque.
