Car Center of Mass Calculator

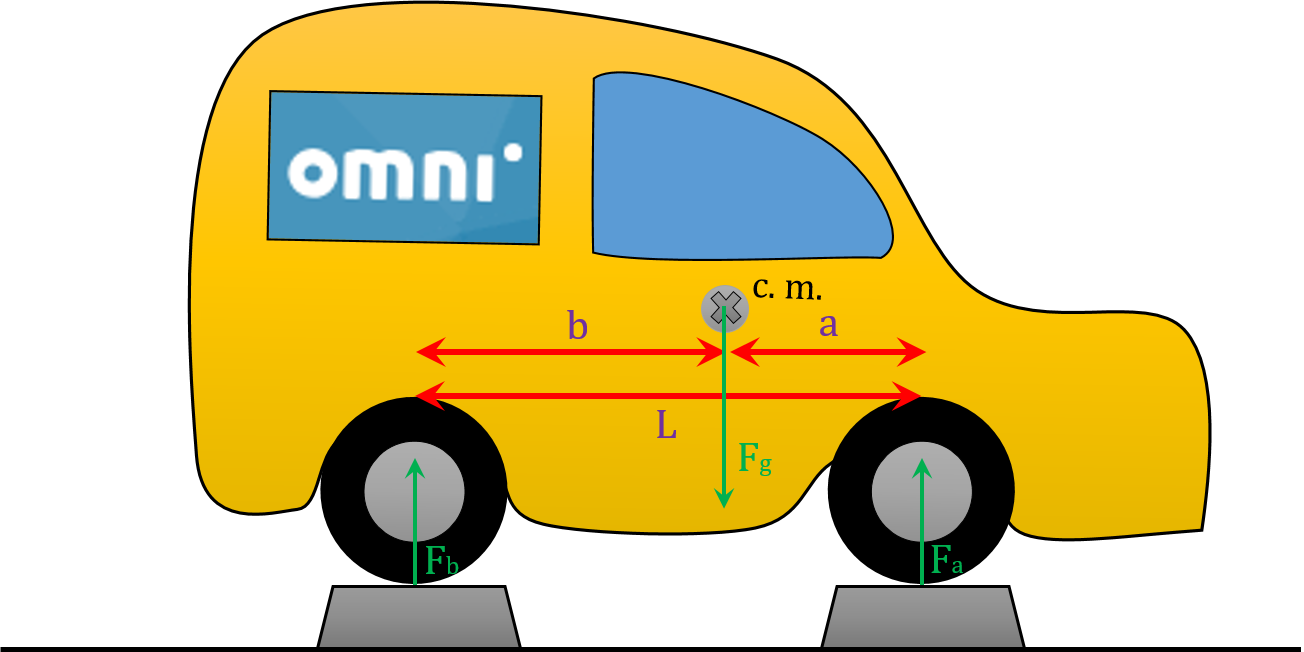

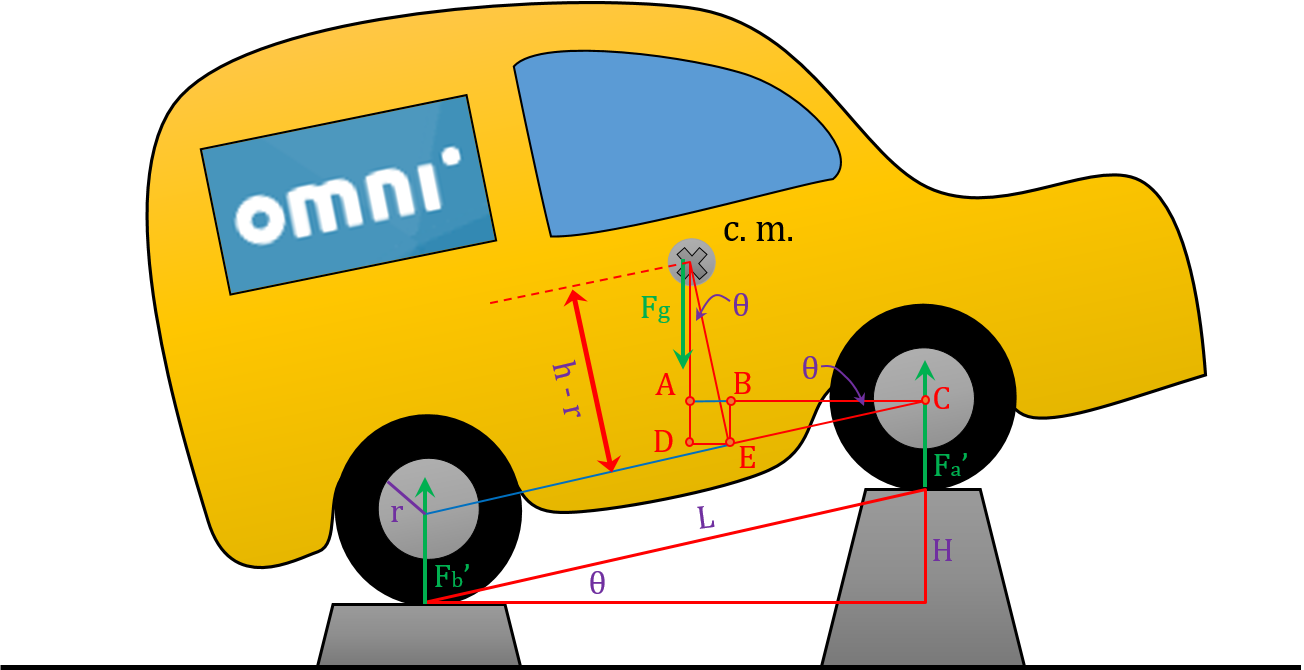

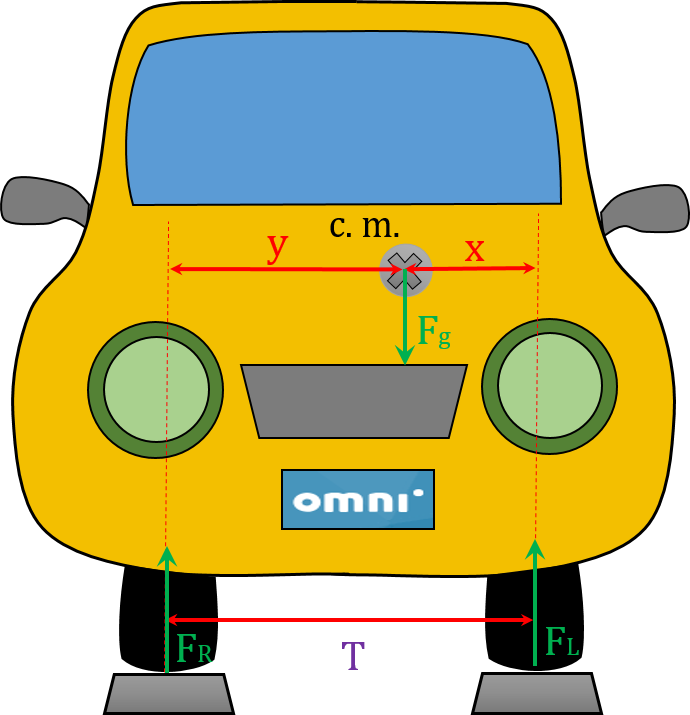

Determining a vehicle's center of mass involves static equilibrium equations based on weight distribution across the front, rear, left, and right wheels. The longitudinal center of mass (distance from the front or rear axle) is derived using the total mass and the proportion of weight resting on individual axles, expressed by the formula: front_distance = wheelbase * rear_mass / mass. For the vertical center of mass, the calculator uses a tilt-ramp method. By elevating one end of the car at a specific angle, the shift in weight is measured. The vertical height (mass_height) is then computed using trigonometric functions relating the incline angle, wheelbase, weight transfer, and wheel radius: mass_height = ((rear_weight_h * wheelbase / mass) - front_distance) / tan(angle) + wheel_radius.

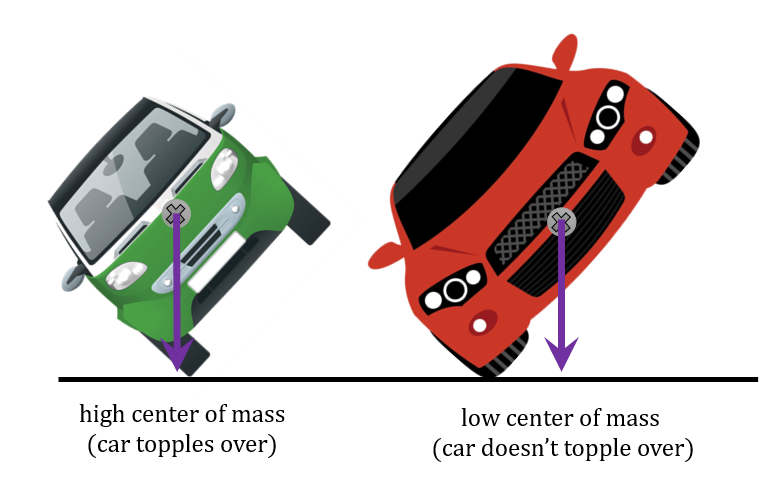

Imagine we are analyzing a custom sports coupe with a total mass of 1,500 kg and a wheelbase of 2.6 meters. When placed on scales, the front axle supports 900 kg while the rear axle supports 600 kg. First, we find the front distance from the center of mass using the formula: front_distance = 2.6 * 600 / 1500 = 1.04 meters from the front axle (meaning the center of mass is 1.56 meters from the rear axle). Next, we tilt the car on a ramp at an angle of 15 degrees, where the adjusted rear weight reads 650 kg, and the rear wheel radius is 0.3 meters. Applying the vertical height formula: mass_height = ((650 * 2.6 / 1500) - 1.04) / tan(15°) + 0.3. Evaluating this yields a vertical center of mass height of approximately 0.52 meters above the ground, giving engineers a clear profile of the vehicle's dynamic stability.

To ensure maximum precision when gathering data for this calculator, always ensure your vehicle is parked on a completely level surface before taking baseline corner-weight measurements. Ensure that fluid levels (fuel, coolant, oil) match your intended test scenario, as a full fuel tank can significantly shift the rear center of mass. Finally, when using the tilt-angle method, double-check that your ramp angle is measured accurately using a digital inclinometer to prevent compounding trigonometric errors.
