Car Jump Distance Calculator

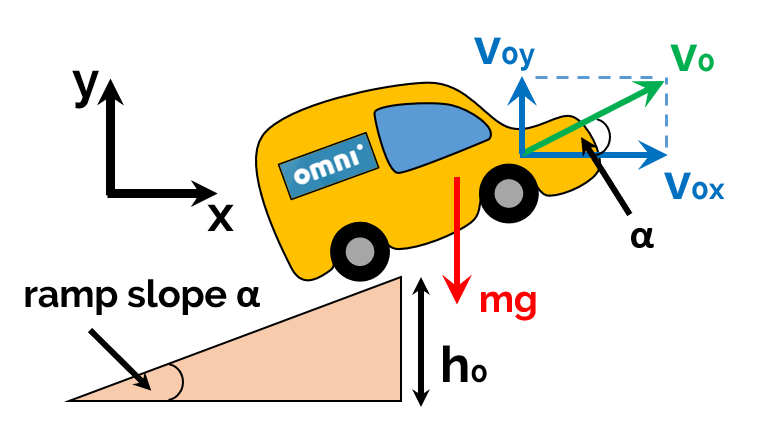

The mathematical model splits the vehicle's initial velocity ($v_0$) into horizontal ($v_{0x}$) and vertical ($v_{0y}$) components using standard trigonometric functions: $v_{0x} = v_0 \cos(\theta)$ and $v_{0y} = v_0 \sin(\theta)$, where $\theta$ is the initial launch angle. When air resistance is factored in, drag forces along both axes are calculated using the formula $F_d = \frac{1}{2} \rho \cdot v^2 \cdot C_d \cdot A$, where $\rho$ is air density, $C_d$ is the drag coefficient, and $A$ is the cross-sectional area. Rotational mechanics, including the vehicle's moment of inertia and center of mass, govern how the car tilts in mid-air before impact.

Consider a mid-sized sedan launching from a ramp with an initial velocity of 25 m/s (approx. 56 mph) at a 15-degree angle. Let the initial height be 1.5 meters and the final landing height be 0 meters. First, we compute velocity components: $v_{0x} = 25 \times \cos(15^\circ) \approx 24.15\text{ m/s}$ and $v_{0y} = 25 \times \sin(15^\circ) \approx 6.47\text{ m/s}$. Using standard gravity ($9.81\text{ m/s}^2$) and ignoring complex aerodynamic drag for a simplified estimation, the vertical motion equation yields a total flight time of approximately 1.65 seconds. Multiplying this time by the horizontal velocity ($24.15\text{ m/s}$) results in a total horizontal jump distance of roughly 39.8 meters.

Always measure your ramp exit angle relative to the true horizontal plane rather than the ramp slope itself. Ensure that your vehicle dimensions (length, width, height) match your specific model to maintain accurate cross-sectional area calculations for aerodynamic drag. When dealing with real-world stunt jumps, always incorporate a safety buffer into your landing zone estimates to account for unpredictable crosswinds and suspension compression.
