Buoyancy Experiment Calculator

This calculator relies on fundamental principles of fluid mechanics and hydrostatic equilibrium. When an object with a total volume (volume_total) and average density (density_object) is placed in a stratified system involving two fluids of densities density1 and density2, it displaces specific volumes (volume1 and volume2) in each respective fluid. The buoyant forces exerted by each fluid layer are computed using the formulas force1 = density1 × volume1 × g and force2 = density2 × volume2 × g, where g represents gravitational acceleration. For a spherical object, total volume is modeled as volume_total = 4/3 × π × radius^3, and partial submergence heights relate to volume through spherical cap geometry. Equilibrium requires that the total weight of the object equals the sum of the buoyant forces from both surrounding fluid layers.

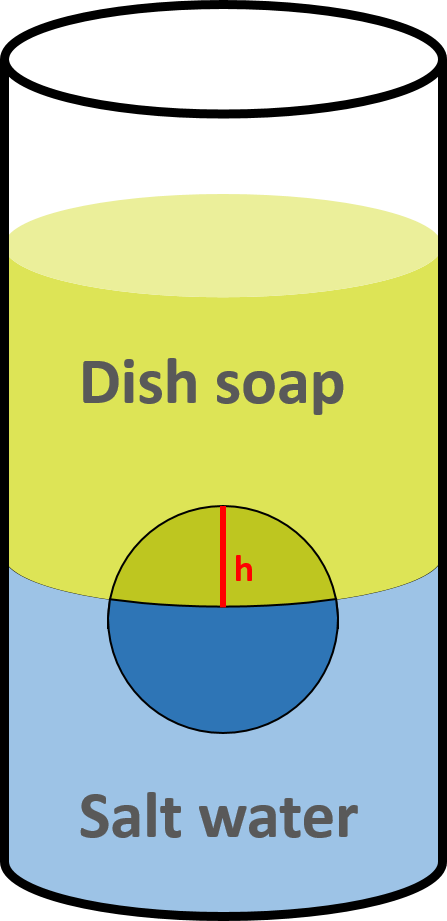

Imagine you are conducting a physics demonstration using a spherical object with a radius of 0.05 meters floating at the interface of two immiscible liquids. Fluid 1 (top layer) has a density of 800 kg/m³ and Fluid 2 (bottom layer) has a density of 1200 kg/m³. First, compute the total spherical volume: volume_total = 4/3 × π × (0.05)^3 ≈ 0.0005236 m³. If the object submerges a height of 0.03 meters into the bottom dense fluid, the submerged volume in Fluid 2 is calculated using spherical cap formulas as volume2 = π × (0.03)^2 / 3 × (3 × 0.05 - 0.03) ≈ 0.0002545 m³. The remaining volume in Fluid 1 is volume1 = volume_total - volume2 = 0.0005236 - 0.0002545 = 0.0002691 m³. Finally, applying the buoyant force equations with standard gravity (g = 9.81 m/s²), we find force1 = 800 × 0.0002691 × 9.81 ≈ 2.11 N and force2 = 1200 × 0.0002545 × 9.81 ≈ 2.99 N, yielding a total supporting buoyant force of approximately 5.10 Newtons.

To ensure high accuracy when measuring physical buoyancy parameters, always verify that your fluid density units are consistent, typically expressed in kilograms per cubic meter (kg/m³). When performing physical trials with layered fluids, ensure they are chemically stable and completely immiscible so that clear boundary heights can be measured accurately. Furthermore, account for temperature variations in liquids, as fluid density is temperature-dependent and minor shifts can noticeably alter buoyant force calculations.
