Belt Length Calculator

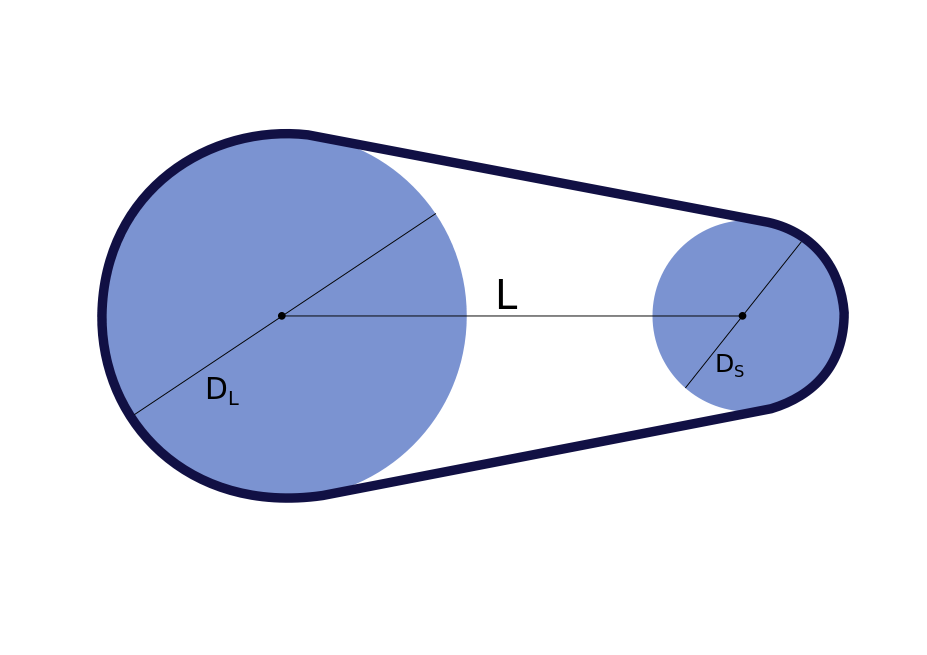

The total length of an open belt wrapping around two pulleys depends on the center-to-center distance and the radii of both the large and small pulleys. The precise formula accounts for the wrapping angles of the belt:

L = π(R + r) + 2(R - r)arcsin((R - r)/D) + 2√(D² - (R - r)²)

Where R is the large pulley radius, r is the small pulley radius, and D is the center distance. For a quick engineering approximation, you can also use: L ≈ (D_large + D_small)(π/2) + 2D + (D_large - D_small)² / (4D).

Imagine you are designing a mechanical drive system with a large pulley diameter of 12 inches, a small pulley diameter of 4 inches, and a center-to-center distance of 30 inches. Using the approximate engineering formula:

1. Sum the diameters: 12 + 4 = 16 inches. Multiply by π/2 (approx 1.5708) to get 25.13 inches.
2. Double the center distance: 30 × 2 = 60 inches.
3. Calculate the square of the diameter difference: (12 - 4)² = 64. Divide by 4 times the distance (4 × 30 = 120), giving 64 / 120 = 0.533 inches.
4. Add them together: 25.13 + 60 + 0.533 = 85.663 inches required for the belt.

Always account for tensioner allowances when cutting or ordering a custom belt, as mechanical stretch and alignment tolerances can affect optimal performance. Double-check your pulley diameter measurements from the outer pitch line rather than the absolute outer edge for maximum precision. Finally, verify whether your setup uses an open or crossed belt configuration, as crossed belts require a modified length calculation.
