Angle of Banking Calculator

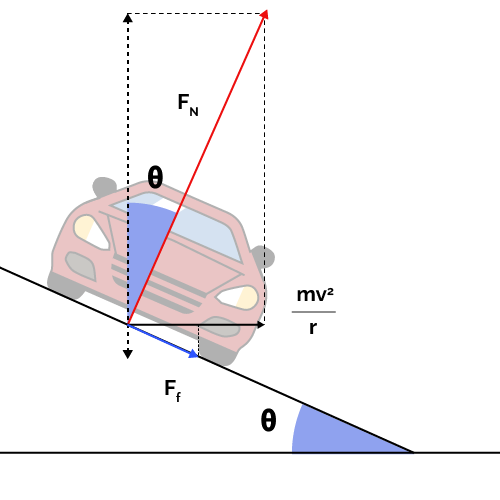

When an object travels in a circular path, it requires a centripetal force to keep it from moving in a straight line. For a banked surface, this force is generated by a combination of the normal force, gravity, and optionally lateral friction. For an ideal frictionless road, the required speed (v) for a given radius (r) and bank angle (theta) is calculated using the formula: v = sqrt(r * g * tan(theta)), where g represents the acceleration due to gravity. Conversely, to find the inverse bank angle based on speed and radius, the formula uses the arctangent function: theta = atan(v^2 / (r * g)). When friction (pm) is introduced, the equation expands to incorporate tangential resistance, modifying the force vectors acting upon the moving mass.

Imagine a car navigating a highway off-ramp with a radius (r) of 50 meters, traveling at a steady speed of 15 meters per second, assuming a standard gravity (g) of 9.81 m/s^2 on a frictionless surface. To find the ideal bank angle (theta), we apply the inverse formula: theta = atan(v^2 / (r * g)). First, square the speed: 15^2 = 225. Next, multiply the radius by gravity: 50 * 9.81 = 490.5. Divide the squared speed by this product: 225 / 490.5 = 0.4587. Finally, take the arctangent of 0.4587, which yields approximately 24.64 degrees. This means the road must be banked at roughly 24.64 degrees to allow vehicles to negotiate the curve safely at 15 m/s without relying on tire friction.

When using this calculator, ensure your units are consistent—typically using meters for radius, meters per second for speed, and meters per second squared for gravity. Remember that friction acts as a safety buffer rather than the primary mechanism for high-speed turns, preventing sliding at speeds slightly above or below the design speed. Always account for adverse weather conditions, as ice or heavy rain drastically lowers the coefficient of friction, making a proper bank angle critical for safety.
