Angular Velocity Calculator

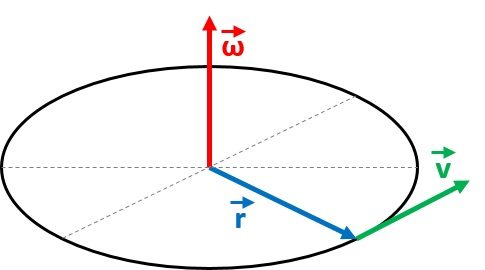

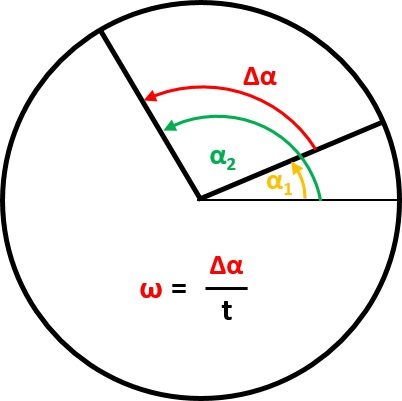

Angular velocity, typically denoted by the Greek letter omega (ω), measures the rate of change of angular displacement over time. The primary formula based on displacement is ω = Δθ / t, where Δθ represents the change in angle in radians and t represents the time interval in seconds. Alternatively, if you know the linear velocity (v) of a point on a rotating body and its distance from the axis of rotation or radius (r), you can calculate angular velocity using the formula ω = v / r. These core equations bridge linear motion mechanics with rotational dynamics.

Imagine a turbine blade completing a rotation where the initial angle is 0 radians and the final angle is 10 radians over a time span of 2 seconds. First, find the change in angle (Δθ): Δθ = 10 - 0 = 10 radians. Next, apply the angular velocity formula: ω = Δθ / t = 10 / 2 = 5 radians per second (rad/s). If that same blade tip travels at a linear velocity of 15 meters per second at a radius of 3 meters, you calculate ω = 15 / 3, which also yields 5 rad/s.

Always ensure your angles are converted into radians before performing advanced physics computations, as formulas default to standard SI units. When working with rotational speed data from industrial machinery, you will often encounter revolutions per minute (RPM); remember to multiply RPM by 2π and divide by 60 to convert it into rad/s. Finally, double-check your radius measurements to ensure they are expressed in meters to maintain dimensional consistency.
