Angular Displacement Calculator

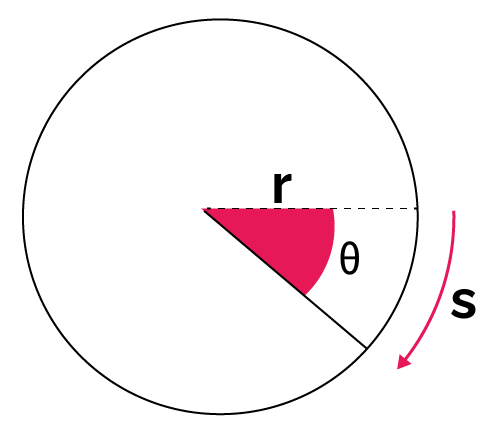

Angular displacement ($ heta$) measures the angle through which an object is rotated around a specific center or central axis, typically expressed in radians, degrees, or revolutions. Depending on the available parameters, this calculator utilizes three distinct physical formulas. First, when analyzing linear arc length ($s$) and radius ($r$), the formula is $ heta = \frac{s}{r}$. Second, for uniform rotational motion involving angular velocity ($\omega$) and time ($t$), the calculation uses $ heta = \omega \times t$. Finally, when rotational acceleration ($\alpha$) is present over a given duration, the kinematic equation applies: $ heta = \omega t + \frac{1}{2} \alpha t^2$. These relationships allow you to transition seamlessly between linear and rotational reference frames.

Let us walk through a practical scenario involving a motor spinning up from rest. Imagine a heavy industrial centrifuge blade with a constant angular acceleration ($\alpha$) of $4 \text{ rad/s}^2$ that operates for a time ($t$) of $5 \text{ seconds}$, starting from an initial angular velocity of zero. To find the total angular displacement, we apply the kinematic rotational formula: $\theta = \omega t + \frac{1}{2} \alpha t^2$. Substituting our values in: $\theta = (0 \times 5) + (0.5 \times 4 \times 5^2)$. This simplifies to $\theta = 0 + (2 \times 25)$, giving a final angular displacement of $50 \text{ radians}$. To convert this into complete revolutions, divide by $2\pi$, resulting in approximately $7.96$ full rotations.

Always ensure your units are consistent before running calculations; angles should generally be kept in radians for standard physics equations. When converting between linear distance traveled and angular movement, double-check that your radius and linear distance share the exact same unit of measurement, such as meters. Finally, keep track of your initial conditions—if an object starts from rest, its initial velocity term drops out of the equation entirely, simplifying your math.
