Angle of Incidence Calculator

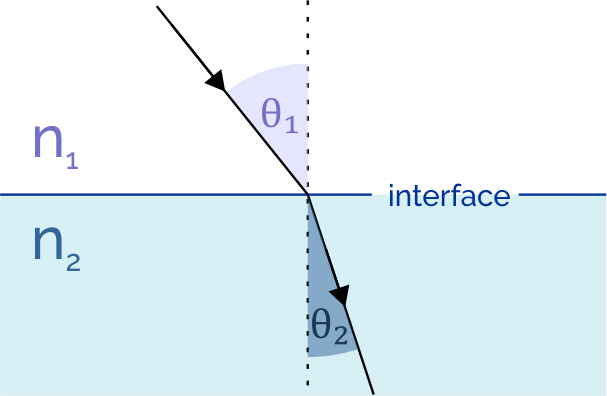

This calculator is built on Snell's Law of Refraction, which states that the ratio of the sine of the angles of incidence and refraction is equivalent to the ratio of the phase velocities in the two media, or equivalently, to the inverse ratio of the refractive indices. The fundamental equation is expressed mathematically as n1 * sin(theta_1) = n2 * sin(theta_2), where n1 represents the refractive index of the first medium, theta_1 is the angle of incidence, n2 is the refractive index of the second medium, and theta_2 is the angle of refraction. When solving for the angle of incidence, the formula transforms to theta_1 = arcsin((n2 * sin(theta_2)) / n1).

Imagine a light ray traveling inside a block of dense flint glass and exiting into the surrounding air. Suppose the refractive index of the glass (n1) is 1.66, the refractive index of air (n2) is approximately 1.00, and the resulting angle of refraction (theta_2) in the air is measured at 45 degrees. To find the angle of incidence inside the glass, we substitute these values into our rearranged equation. First, calculate the sine of 45 degrees, which is 0.7071. Multiply this by the refractive index of air (1.00 * 0.7071 = 0.7071). Next, divide that result by the refractive index of the glass (0.7071 / 1.66 = 0.4259). Finally, take the inverse sine (arcsin) of 0.4259, yielding an angle of incidence of approximately 25.21 degrees.

Always verify whether your calculator inputs are set to degrees or radians before computing trigonometric functions, as mixing these units leads to drastic errors. Remember that the refractive index is a dimensionless number; for standard atmospheric air, you can safely use an approximation of 1.0003, though 1.00 is acceptable for basic problems. Finally, keep an eye out for total internal reflection: if the calculation yields a sine value greater than 1, it means the light cannot escape into the second medium and will reflect internally instead.
